Hifiverse

Integrated amplifiers — Vinnie Rossi CANTA

Description, images, technical data and specifications

Vinnie Rossi CANTA
Image source — © Vinnie Rossi

Vinnie Rossi CANTA Integrated Amplifier operates in Class A and uses one 6SN7 lamp per channel. The lamps are solely responsible for voltage amplification, and the circuit itself is intentionally made minimalistic. According to Vinnie Rossi, this approach should preserve the naturalness of timbres characteristic of lamps, the volume of the scene and the expressiveness of the sound.

Specifications

  • Model name

    CANTA

  • Type

    Integrated Amplifier

  • Analog inputs (balanced)

    2

  • Analog inputs (single-ended)

    2

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    125

  • Output power (4Ω) (W)

    250

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (dB)

    100

  • Total Harmonic Distortion + Noise (%)

    0.1

  • Damping factor

    N/A

  • Dimensions (mm)

    413 x 324 x 70

  • Weight (kg)

    11

  • Official link

    https://vinnierossi.com/canta-integrated-amplifier/

Related content

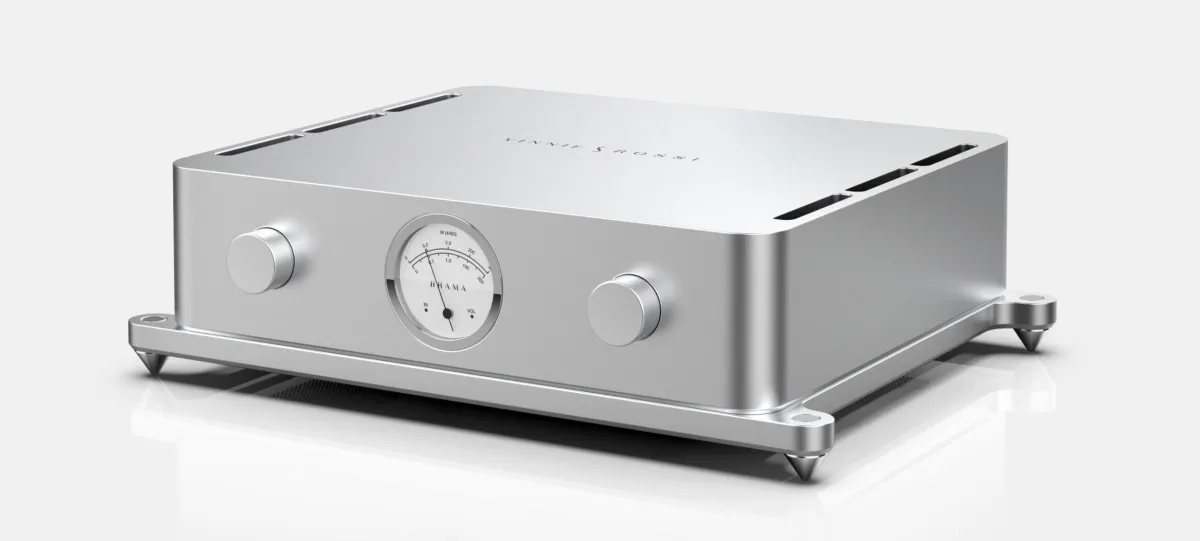

Vinnie Rossi BRAMA G2 Integrated Amplifier
