Phonostages — Soulnote E-3

Description, images, technical data and specifications

Soulnote E-3
Image source — © Soulnote

The new SOULNOTE E-3 phono corrector implements a newly developed discrete balanced gain scheme without NFB (new Type-R scheme) for optical cartridges. The signal passes from the input to the output through only four transistors. This highly simplified NFB-free circuit preserves the freshness of the music signal provided by the optical cartridge.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    E-3

  • Inputs (balanced)

    1

  • Inputs (single-ended)

    1

  • MC current-sensing input impedance (Ω)

    N/A

  • MM/MC voltage input impedance (Ω)

    N/A

  • Output impedance (Ω)

    N/A

  • Gain (dB)

    34 (XLR) + 28 (RCA)

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Total Harmonic Distortion + Noise (%)

    0.03

  • Dimensions (mm)

    454 × 189 × 407

  • Weight (kg)

    27

  • Official link

    https://www.soulnote.co.jp/us_detail_e3.html

Soulnote E-2

More components

  • E-1

    Phonostages

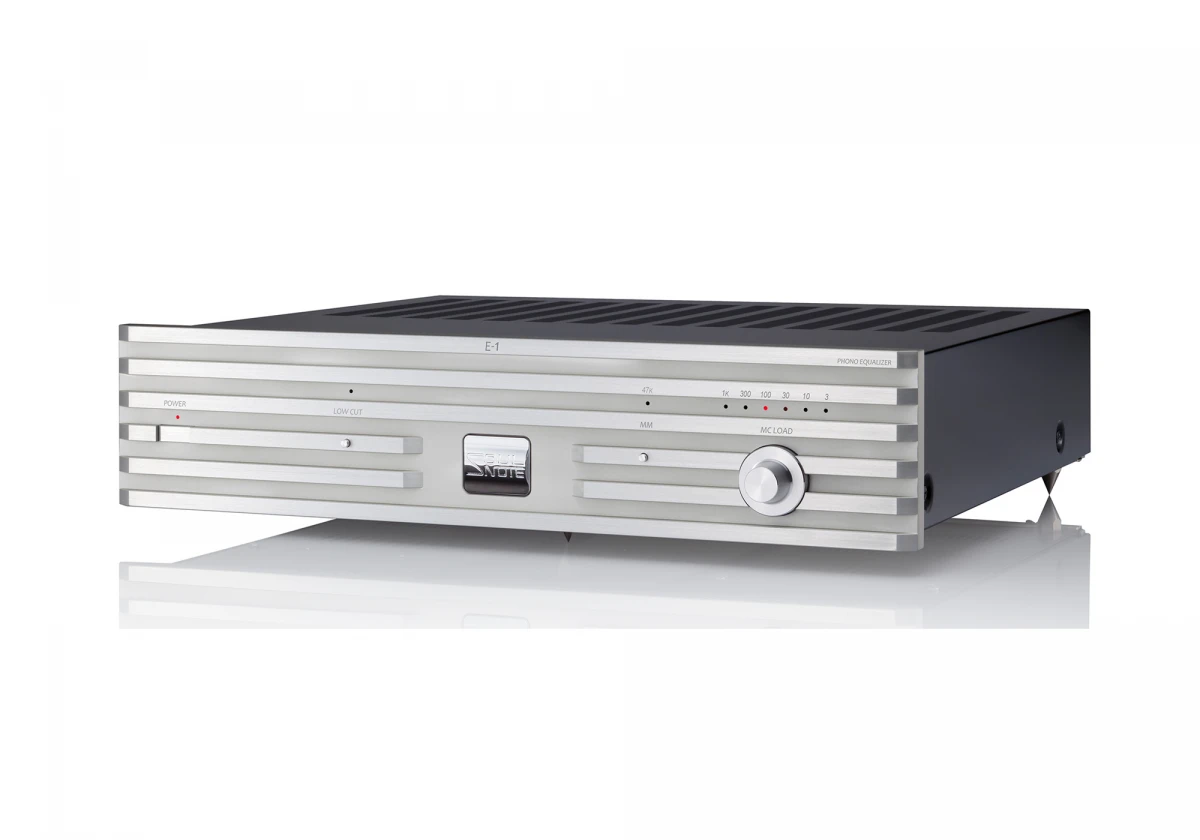

    Soulnote E-1

    The Soulnote E-1 is based on the scheme and components of the legendary ph 1.0 phono corrector and has improved all the subtleties of this model. Due to the inclusion of RIAA elements in the load of the voltage amplification circuit, the E-1 has a unique circuit system that makes the gain characteristic of the RIAA and ensures uniform quality over the entire frequency range above 100 kHz, thereby eliminating the disadvantages of both CR types, which have problems with dynamic range at the upper level and NF types, which change the volume. NF depends on the range.

  • E-2

    Phonostages

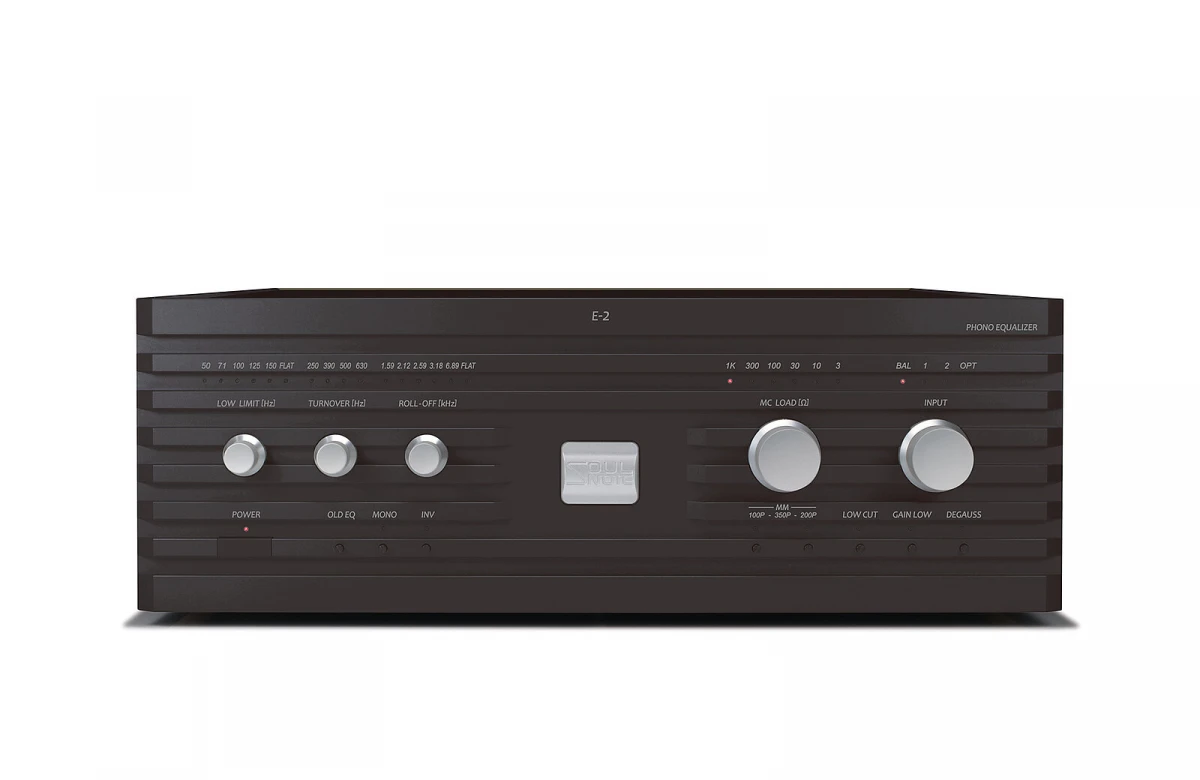

    Soulnote E-2
