Cartidges — HANA Umami Red

Description, images, technical data and specifications

HANA Umami Red
Image source — © HANA

Hana Umami Red is a top—of-the-line MC pickup with a Nude Microline needle, duralumin and ebony body with Urushi lacquer. The frequency range is 15-50,000 Hz, 0.4 mV output, high level of detail and clarity of sound thanks to Japanese technology and manual assembly. It is ideal for audiophiles who appreciate the depth and naturalness of sound.

Specifications

  • Model name

    Umami Red

  • Type

    MC

  • Stylus

    Microline

  • Body

    Duralumin (A7075), Ebony Wood

  • Cantilever

    Boron

  • Coils

    High Purity Copper

  • Output voltage (mV@5cm/sec)

    0.4

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    50 000

  • Internal impedance (Ohm)

    >60

  • Channel separation (dB / 1,000 Hz)

    N/A

  • Compliance (×10-6cm/dyne at 100Hz)

    N/A

  • Recommended load (Ohm)

    N/A

  • Recommended tonearms

    N/A

  • Weight (g)

    10.5

  • Official link

    https://www.hanacartridges.com/products/hana-umami-red

HANA ML

More components

  • EH

    Cartidges

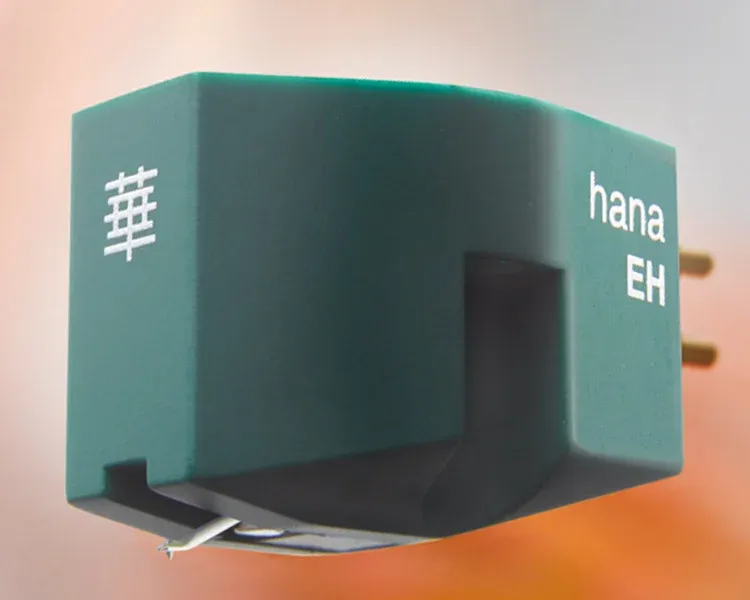

    HANA EH

    Hana EH — MC pickup with 2 mV high output, elliptical diamond needle and aluminum cantilever. The frequency range is 15-25, 000 Hz, the internal resistance is 130 ohms, the channel separation is 25 dB.

  • EL

    Cartidges

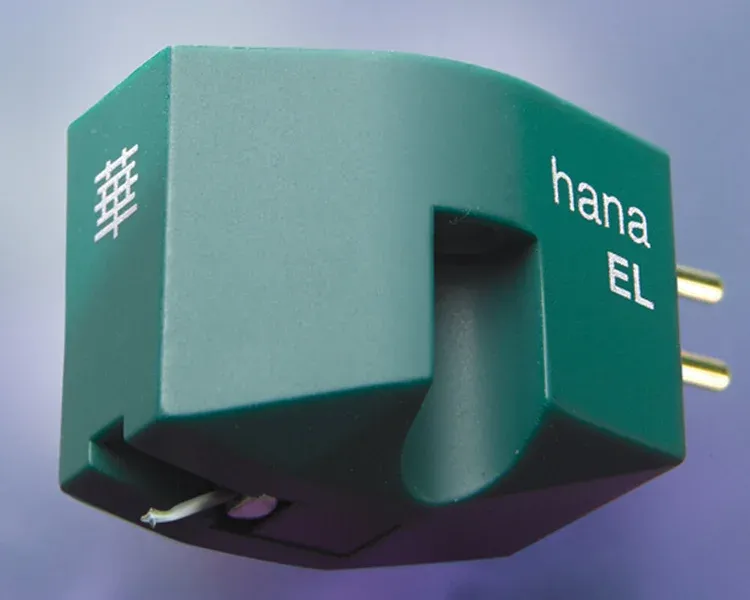

    HANA EL

    Hana EL — MC pickup with 0.5 mV output and elliptical needle, frequency range 15-25 000 Hz. The anti-vibration plastic housing, aluminum cantilever and AlNiCo magnets provide clear, dynamic sound with excellent channel separation (25 dB).

  • SL Mono MK II

    Cartidges

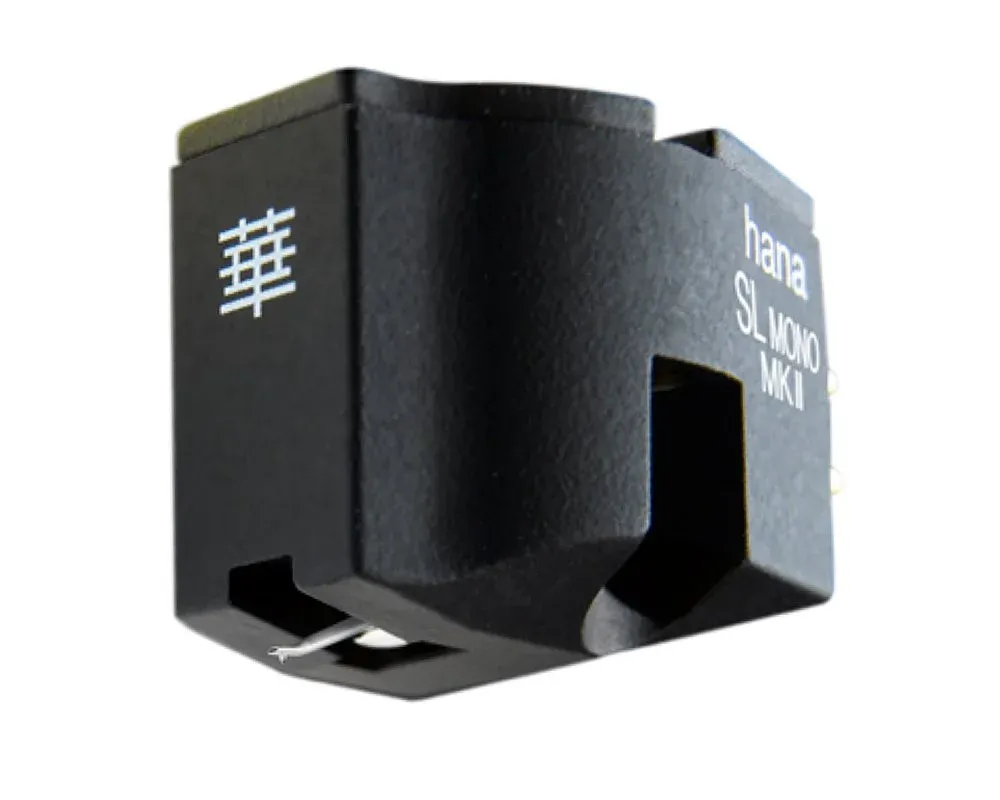

    HANA SL Mono MK II

    The Hana SL Mono MK II is an MC pickup with a Shibata needle and a conical aluminum cantilever providing precise sound transmission of mono cogs. Range 15-32 kHz, output 0.4 mV, clamp 2 g.

  • SH MK II

    Cartidges

    HANA SH MK II

    The Hana SH MK II is a high—performance MC pickup with a Nude Diamond Shibata needle, a conical aluminum cantilever, a 2 mV output and an extended range of 15-32 kHz.

  • SL MK II

    Cartidges

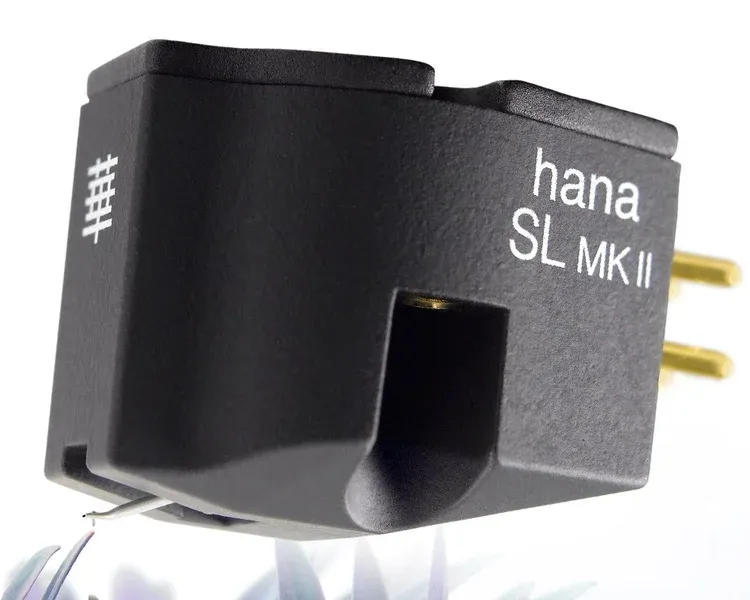

    HANA SL MK II
