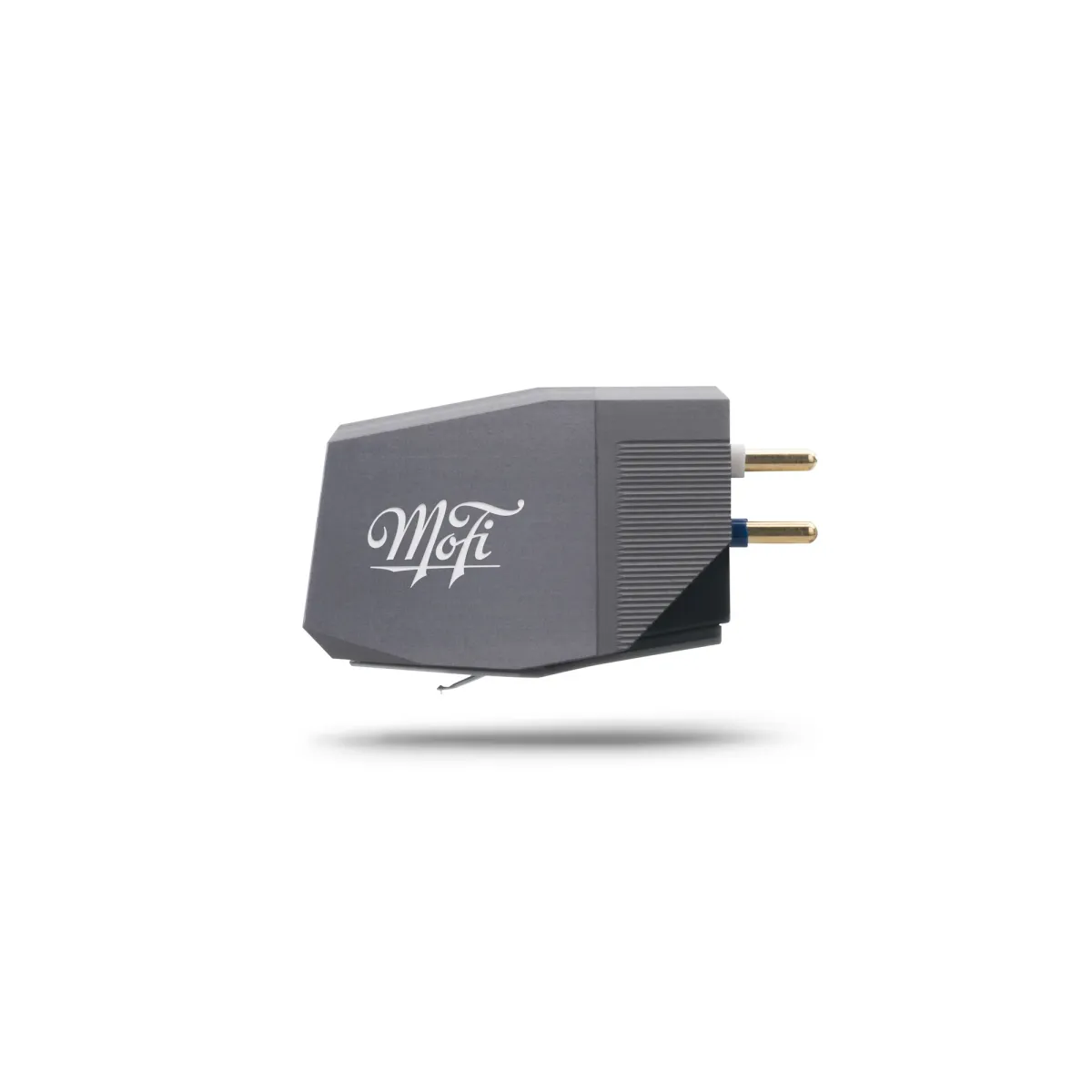

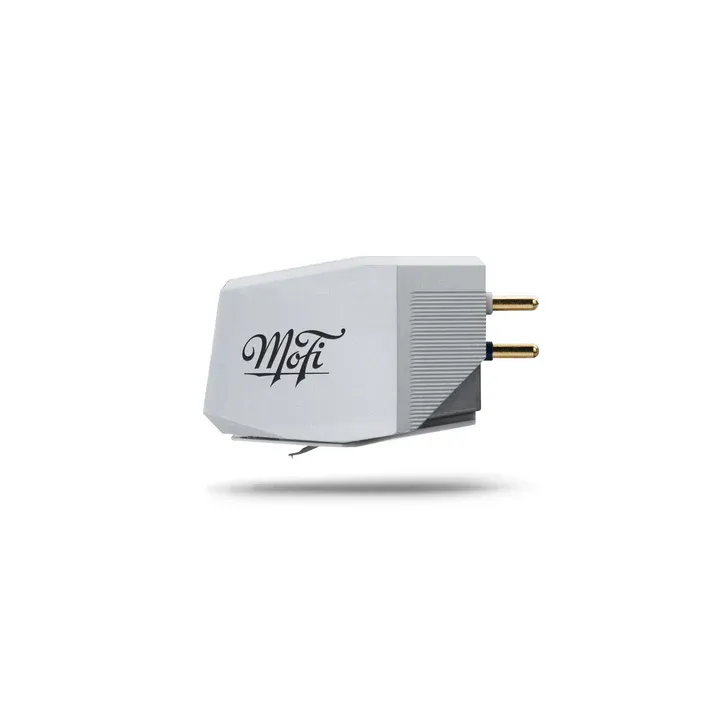

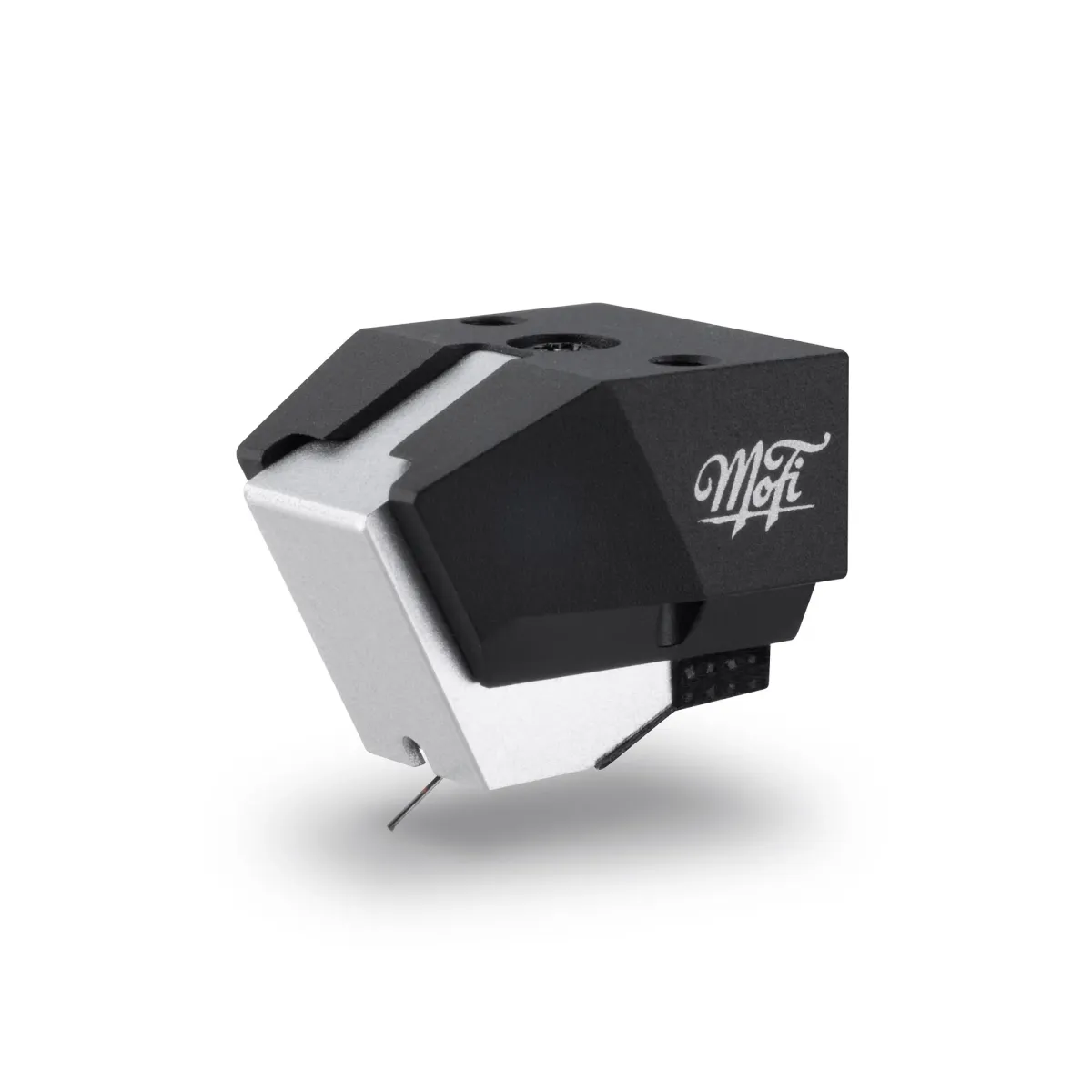

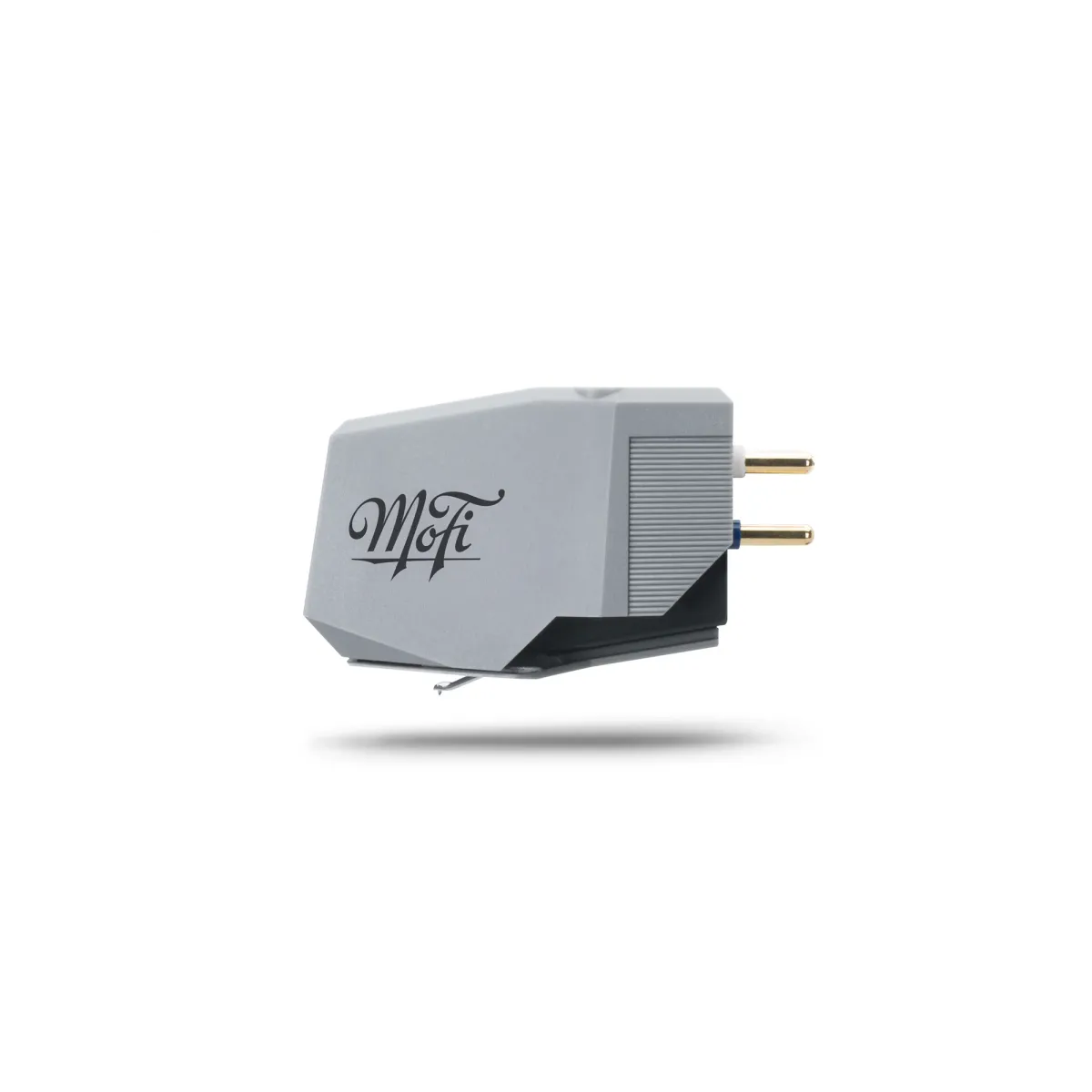

MoFi Electronics ULTRAGOLD MC PHONO
Image source — © MoFi Electronics
The MoFi Electronics UltraGold MC is a top—of-the-line MC cartridge created in Japan and customized by Allen Perkins (Spiral Groove). Its main feature is a Nude Shibata diamond needle holder and a boron cantilever, which gives a very wide frequency range (20-35,000 Hz), excellent dynamics, clear treble and deep, rich bass.
Specifications
Model name
ULTRAGOLD MC PHONO
Type
MC
Stylus
Shibata
Body
aluminum
Cantilever
boron
Coils
pure Copper by Ohno Continuous
Output voltage (mV@5cm/sec)
0.4
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
35 000
Internal impedance (Ohm)
12
Channel separation (dB / 1,000 Hz)
N/A
Compliance (×10-6cm/dyne at 100Hz)
10
Recommended load (Ohm)
≥ 100
Recommended tonearms
N/A
Weight (g)
7.3
