CD / SACD players and transports — Vincent CD-S1.2

Description, images, technical data and specifications

Vincent CD-S1.2
Image source — © Vincent

The component uses a Burr-Brown PCM1732 digital-to-analog converter. The power supply unit with a toroidal transformer is additionally shielded here. The transport mechanism of the model is based on Philips components. The main difference between the new product and its predecessor was the ability to operate in external DAC mode, including when connected via the USB bus.

Specifications

  • Model name

    CD-S1.2

  • Transport

    Yes

  • Player

    Yes

  • SACD support

    N/A

  • Engine

    N/A

  • Frequency response low +/- 3dB (for CD) (Hz)

    20

  • Frequency response high +/- 3dB (for CD) (Hz)

    20 000

  • Frequency response low +/- 3dB (for SACD) (Hz)

    N/A

  • Frequency response high +/- 3dB (for SACD) (Hz)

    N/A

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    N/A

  • Output Level (single-ended) (V)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Dynamic range (for CD) (dB)

    >100

  • Dynamic range (for SACD) (dB)

    N/A

  • Signal to Noise Ratio (for CD) (dB)

    >94

  • Signal to Noise Ratio (for SACD) (dB)

    N/A

  • Total Harmonic Distortion + Noise (for CD) (%)

    <0.005

  • Total Harmonic Distortion + Noise (for SACD) (%)

    N/A

  • Dimensions (mm)

    430 x 106 x 342

  • Weight (kg)

    8.5

  • Official link

    https://www.vincent-tac.de/en/product-lines/powerline/cd-s12.html

Vincent CD-200

More components

  • CD-200

    CD / SACD players and transports

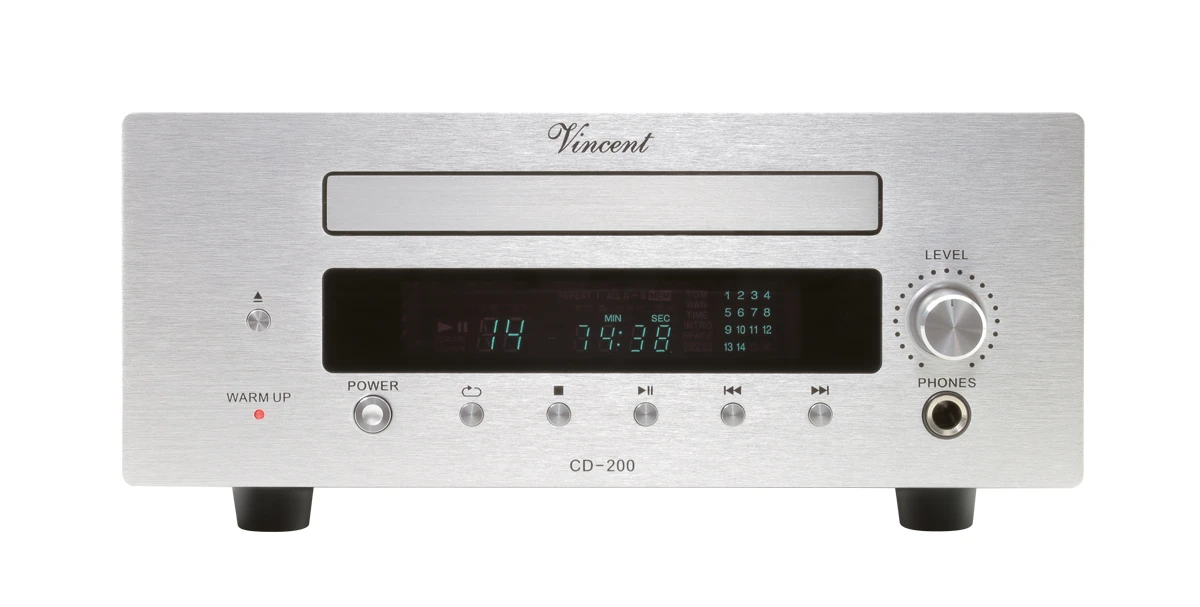

    Vincent CD-200

    The Vincent CD-200 player can be connected to a modern amplifier via both analog RCA outputs and optical or coaxial digital outputs. A high-quality aluminum remote control is included in the package, which can also be used to control the Vincent SV-200 amplifier.

  • CD-S7 DAC

    CD / SACD players and transports

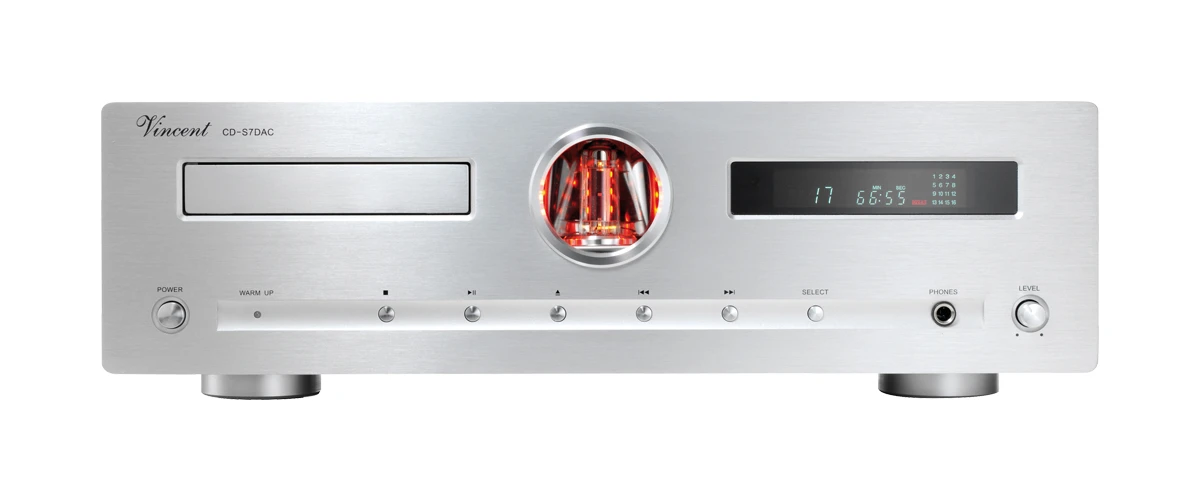

    Vincent CD-S7 DAC
