Subwoofers — Revel B10

Description, images, technical data and specifications

Revel B10
Image source - (c) Revel

The B10 is the powered subwoofer of the Revel Concerta2 series, intended to augment Concerta2 loudspeakers in stereo music or home theatre systems. Revel has existed as a brand since 1996, and the series draws on Harman International research facilities, among them a multichannel listening lab for double-blind tests, a laser interferometer for driver and cabinet analysis, several large anechoic chambers and finite-element modelling. According to Revel, the B10 is derived from the Performa3 series.

Key specs that matter

Amplification is a built-in Class D amplifier rated at 800 W RMS. Maximum amplifier output is specified from 20 Hz to 150 Hz at no more than 0.1% THD. Low-frequency extension (anechoic) is 35 Hz at -3 dB, 32 Hz at -6 dB and 29 Hz at -10 dB, with ±0.5 dB in the pass-band. The low-pass crossover is continuously variable over 50 Hz - 150 Hz at 24 dB/octave. Dimensions are 418 mm high including feet, 377 mm wide and 392 mm deep with grille. Power requirements are 100 - 120 V or 220 - 240 V, 50/60 Hz, and standby consumption is 0.5 W.

Engineering and use context

Its 254 mm woofer has a coated fibre-composite cone in a cast frame. Revel engineers repositioned the voice coil to improve the symmetry of cone displacement and adjusted the spider progression for the same purpose, both to lower distortion. The spider is a Corex and cotton blend with optimised geometry for linearity. A large ceramic-magnet motor system drives a copper voice coil wound on a Kapton bobbin, and a vented centre pole aids heat dissipation for low compression.

The cabinet has MDF walls with extensive internal bracing and rubber padded feet on the bottom. Bass loading is reflex through a rear-firing port of Harman's patented Constant Pressure Gradient design, in which the inner wall of the port is contoured so that the pressure gradient from inlet to outlet stays substantially constant. A single-band parametric equaliser with Frequency, Bandwidth and Level controls is switched in by an EQ switch. Each B10 enters standby (red LED) after 10 minutes without signal and powers on (green LED) as soon as a signal is detected. A 0/180 degree phase switch is on the rear panel, and finishes are high-gloss black and high-gloss white paint.

Pairing

The input is a left/right stereo RCA pair. Revel recommends a crossover setting of 50 - 100 Hz with larger main loudspeakers and 100 - 150 Hz with smaller bookshelf models. With an AV receiver or processor, the crossover control is set to LFE, its bypass position.

Alternatives

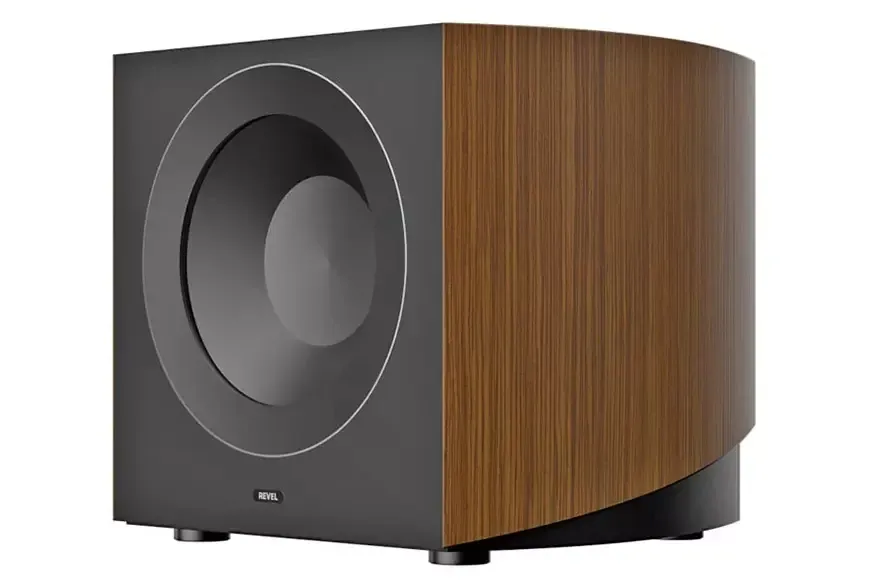

The Revel B140 is a 250 mm subwoofer from the later Performa4 series.
