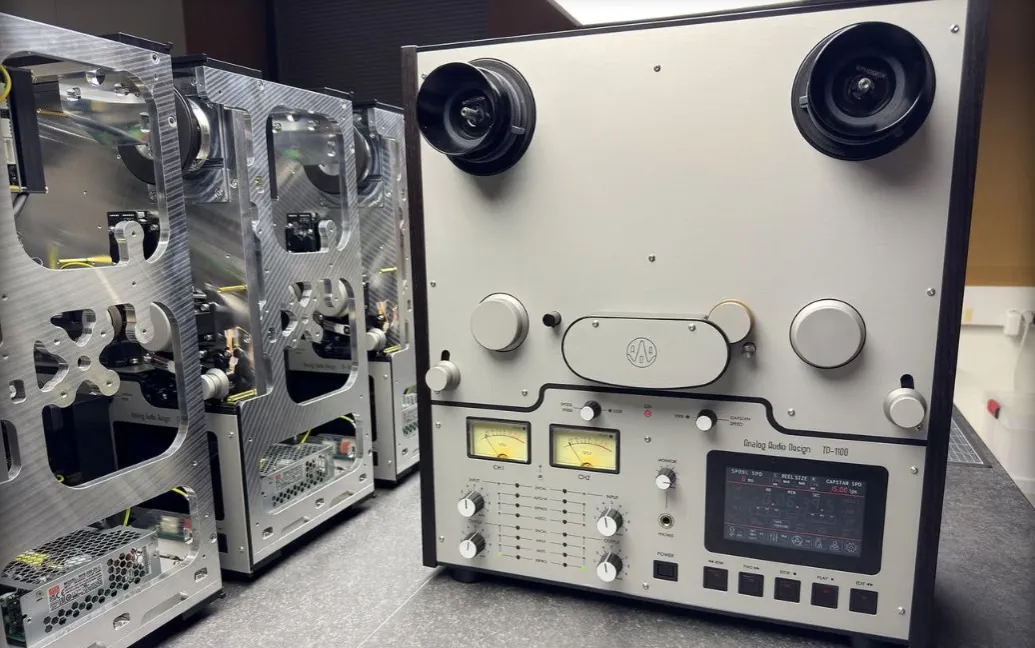

Analog Audio Design TR-1100
Image source — © Analog Audio Design
The Analog Audio Design TR-1100 is a two‑track, two‑channel tape recorder for quarter‑inch‑wide tape and reels with a diameter of up to 30 cm. The device supports three tape speeds: 30, 15, and 7.5 inches per second, which correspond to 76.2, 38.1, and 19.05 cm/s, respectively. It also features speed adjustment with a wide pitch range.
Specifications
Model name
TR-1100
Highlights
Reproduce Record Level : 320 nWb/m or 514 nWb/m, switchable Frequency Response (depends on the type of magnetic head installed) : 30 ips = 30hz to 25kHz (+/-2 dB) at 0 VU , 15 ips = 30hz to 22kHz (+/-2 dB) at 0 VU , 7.5 ips = 30hz to 20kHz (+/-2 dB) at 0 VU Signal-To-Noise Ratio : (THD-N, in CAL) / A-Weighting = 30 ips = 71 dB / 78 dB, 15 ips = 71 dB / 78 dB, 7.5 ips = 70 dB / 77 dB Distortion : 0.8% or less at 1kHz, 15 ips Channel Crosstalk : 60 dB or more Bias Frequency : 180kHz Erasure : 70dB or more, at 1kHZ, 320nWb/m, erase frequency = 90 kHz
Dimensions (mm)
571 x 586 x 351
Weight (g)
N/A
