Receivers — Anthem MRX 540 8K

Description, images, technical data and specifications

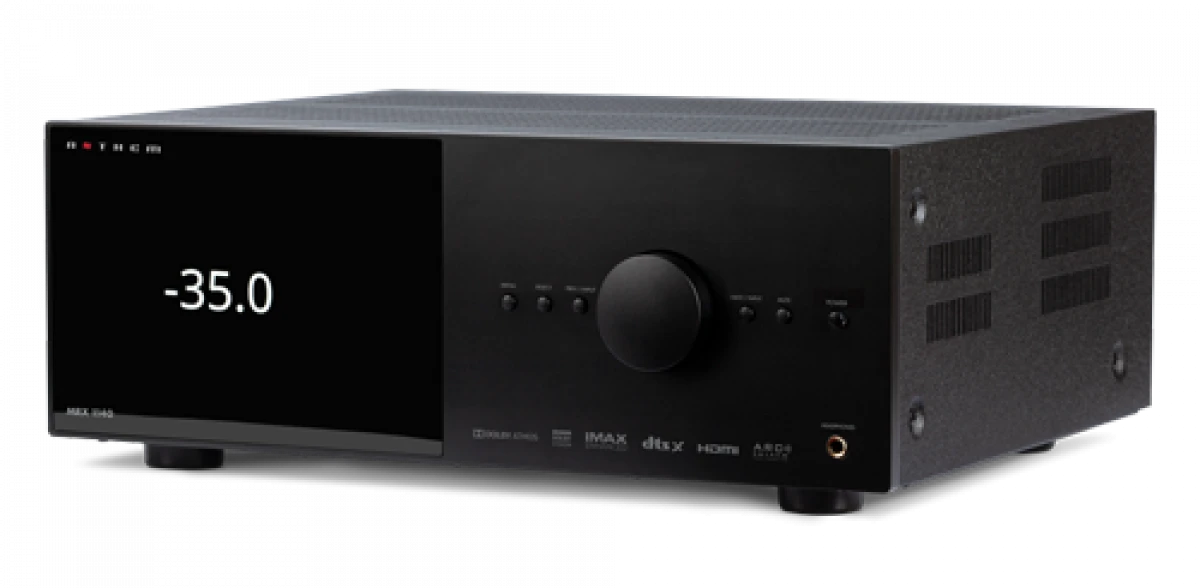

Anthem MRX 540 8K
Image source — © Anthem

The MRX 540 8K is a comprehensive AV receiver from Anthem, built with five main channels plus two dedicated subwoofer channels for elaborate home-theatre applications. The MRX 540 8K brings Anthem's considered engineering to modern 8K-compatible home-theatre receiver duties.

Key specs that matter

The MRX 540 8K handles 5 main channels plus 2 dedicated subwoofer channels. Output power is 100W into 8 ohms per channel. Frequency response spans 20Hz to 30,000Hz within plus-or-minus 3dB. Signal-to-noise ratio is 110dB. At 152.4 x 431.8 x 364mm and 12.8kg, the MRX 540 8K maintains a comprehensive yet manageable receiver chassis.

Sound and use context

Expect dependable, capable home-theatre performance reflecting Anthem's considered engineering approach, with the 5.2-channel configuration supporting a comprehensive surround-sound speaker layout alongside modern 8K video pass-through capability.

Pairing

The 5 main channels plus 2 subwoofer channels suit a comprehensive home-theatre speaker layout, and Anthem's own loudspeaker catalogue offers natural companion components.

Alternatives

Anthem's broader AV receiver and processor catalogue offers alternatives for buyers wanting a different channel count.

Specifications

  • Model name

    MRX 540 8K

  • Type

    8K AV Receiver

  • Number of main channels

    5

  • Number of subwoofers channels

    2

  • Decoding up to Dolby Atmos

    Yes

  • Decoding up to DTS X

    Yes

  • DSP chip

    Yes

  • Phono

    N/A

  • Output power (8Ω)

    100

  • Output power (4Ω)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    30 000

  • Signal to Noise Ratio (dB)

    110

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    152.4 × 431.8 × 364

  • Weight (kg)

    12.8
