Preamplifiers — TAD TAD-C1000
Description, images, technical data and specifications

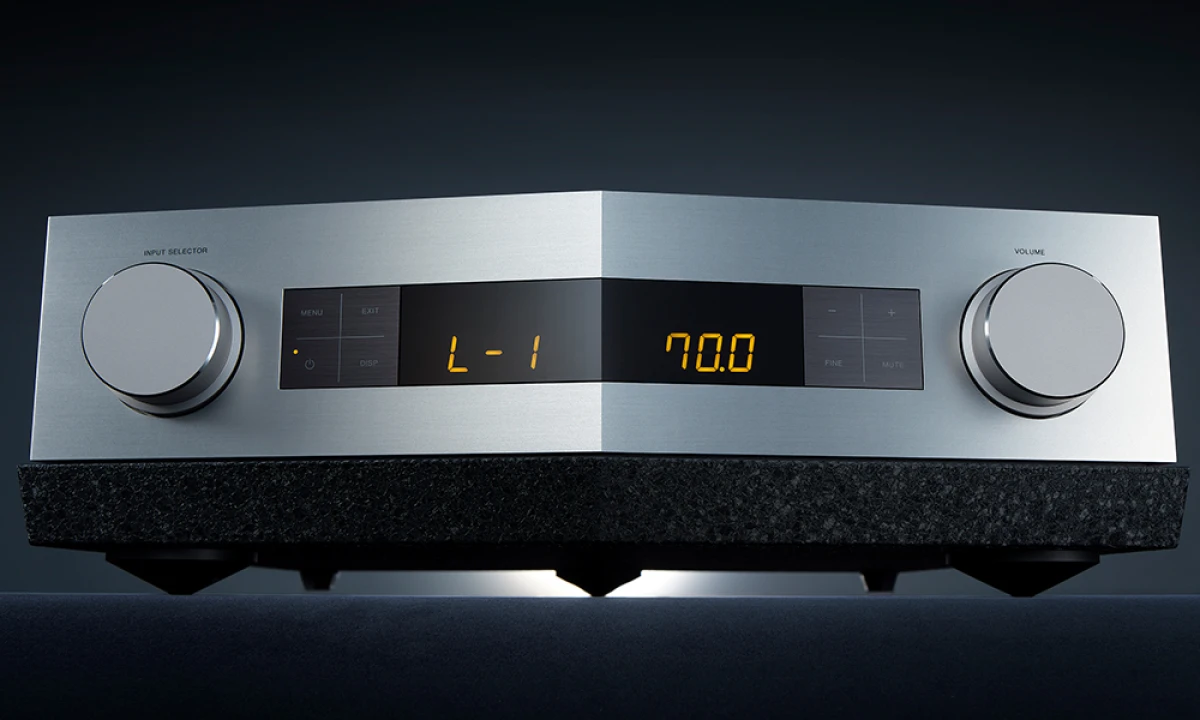

TAD TAD-C1000
Image source — © TAD
The robust metal chassis of the TAD C-1000 preamp, supported by proprietary spike supports, prevents external vibrations from affecting internal circuits. The power supply uses special toroidal transformers powering audio and control circuits, and custom-made TAD electrolytic capacitors in the power filter.
Specifications
Model name
TAD-C1000
Analog inputs (balanced)
4
Analog inputs (single-ended)
2
Analog outputs (balanced)
2
Analog outputs (single-ended)
2
Gain (dBu)
12
Input sensitivity (mV)
N/A
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (SNR, unweighted) (dB)
N/A
Total Harmonic Distortion + Noise (THD+N) (%)
0.003
Dimensions (mm)
440 x 150 x 424
Weight (kg)
17
Official link
