Schiit Audio WOTAN
Image source — © Schiit Audio

The power supply unit of the Wotan power amplifier is equipped with two 600 VA transformers each, separately for each channel. The filter has a battery of 160,000 UF capacitors. The output stages are implemented on 24 powerful bipolar Toshiba transistors.

Specifications

  • Model name

    WOTAN

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    200

  • Output power (4Ω) (W)

    400

  • Gain (dBu)

    40

  • Frequency response low +/- 3dB (Hz)

    3

  • Frequency response high +/- 3dB (Hz)

    500 000

  • Signal to Noise Ratio (dB)

    >124

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    <0.03

  • Max power consumption (W)

    1200

  • Damping factor

    >50

  • Dimensions (mm)

    406 × 330 × 98

  • Weight (kg)

    24.5

  • Official link

    https://www.schiit.com/products/wotan

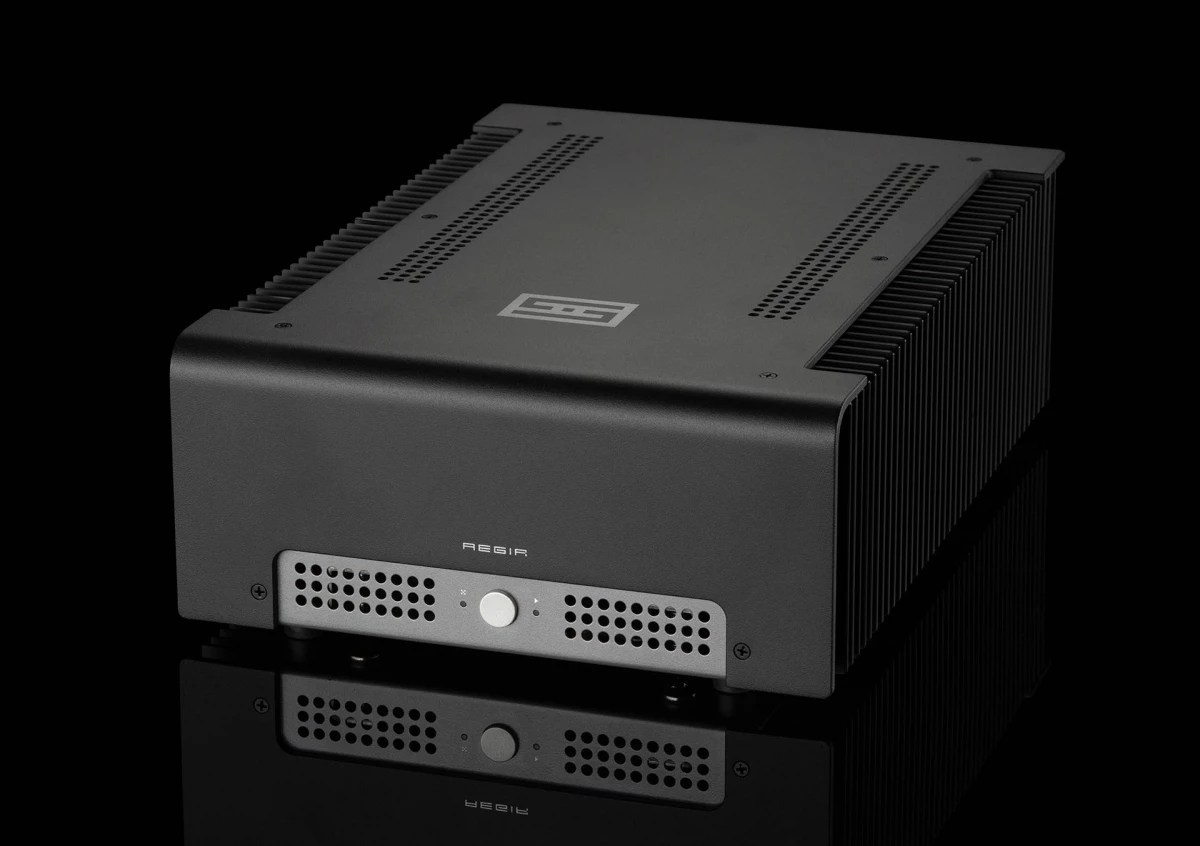

Schiit Audio AEGIR 2F
