Power amplifiers stereo — Accustic Arts AMP VI
Description, images, technical data and specifications

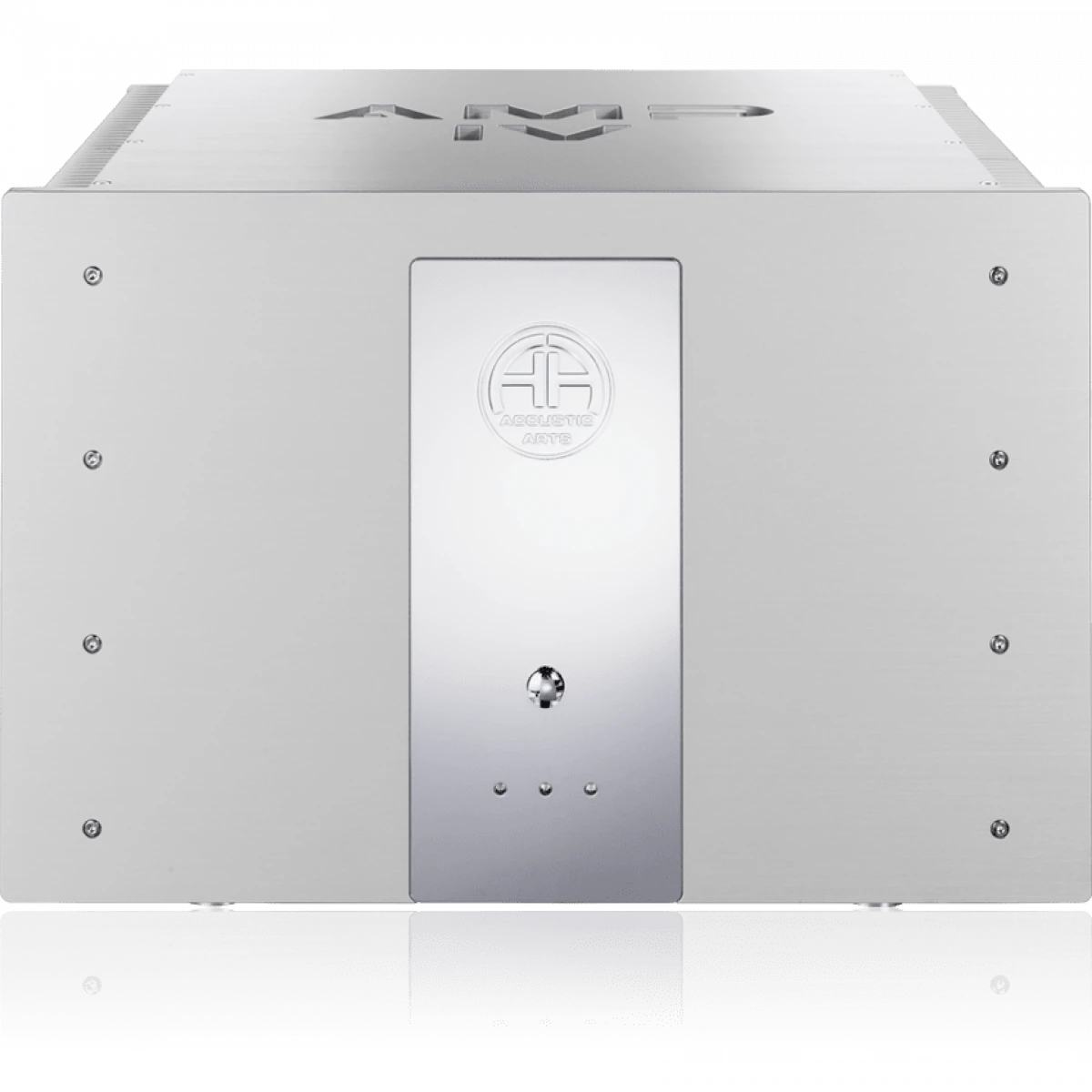

Accustic Arts AMP VI
Image source — © Accustic Arts
The AMP VI is the stereo power amplifier that Accustic Arts presents as its statement in two-channel amplification, handmade in Germany. The company says it raised the output power again after many customers asked for more, and the result uses the same 328 x 530 x 545 mm enclosure as the MONO VI. Finishes are aluminium with chrome, black with gold and black with chrome, and US prices have been USD 66,990 in chrome and USD 68,990 in gold.
Key specs that matter
The AMP VI delivers more than 950 W per channel into 8 ohm, above 1,500 W into 4 ohm and above 1,600 W into 2 ohm, all at 0.1 percent THD+N, and the minimum speaker load is 2 ohm. Voltage gain is 30.0 dB. These power and gain figures match those of one MONO VI, so a single AMP VI chassis gives each channel what a monoblock provides. Frequency response covers 10 Hz to 50 kHz within 0.5 dB. The damping factor exceeds 500 at 1 kHz and 10 W into 4 ohm. Distortion at the same point is 0.003 percent THD+N, signal-to-noise ratio is 96 dBA and crosstalk is -105 dB at 1 kHz. Input resistance is 2 x 16 kohm balanced and 15 kohm unbalanced. The amplifier consumes about 240 W at idle, weighs roughly 82 kg, and its shipping flight case adds 22 kg.
Engineering and use context
The layout is dual mono, with a fully isolated power supply for each channel. There are 40 selected MOS-FET output transistors, twice the count of the AMP IV, fed by two magnetically shielded and encapsulated toroidal transformers and more than 220,000 uF of filter capacitance from German suppliers. Gold-plated contacts are used throughout. The switchable damping factor linearization from Accustic Arts can be engaged or bypassed, a protective circuit reacts to clipping, HF oscillation and excessive DC offset, and an integrated soft-start limits current at power-on. The housing is heavy, resonance-optimised aluminium with a front inlay of high-gloss polished and chromed brass.
Pairing
The high damping factor and low-impedance capability make the AMP VI suitable for large passive loudspeakers with low sensitivity or awkward impedance, driven from one chassis instead of two monoblocks. XLR and RCA inputs are both present and selected by a switch, and gold-plated terminals accept bi-wire runs. A preamplifier with balanced output is the obvious partner, and the heavy chassis calls for a floor-level location.
Alternatives
The Accustic Arts AMP IV is a smaller stereo power amplifier in its fifth generation, rated at 400 W per channel into 8 ohm and weighing about 44 kg.
Key specs that matter
The AMP VI delivers more than 950 W per channel into 8 ohm, above 1,500 W into 4 ohm and above 1,600 W into 2 ohm, all at 0.1 percent THD+N, and the minimum speaker load is 2 ohm. Voltage gain is 30.0 dB. These power and gain figures match those of one MONO VI, so a single AMP VI chassis gives each channel what a monoblock provides. Frequency response covers 10 Hz to 50 kHz within 0.5 dB. The damping factor exceeds 500 at 1 kHz and 10 W into 4 ohm. Distortion at the same point is 0.003 percent THD+N, signal-to-noise ratio is 96 dBA and crosstalk is -105 dB at 1 kHz. Input resistance is 2 x 16 kohm balanced and 15 kohm unbalanced. The amplifier consumes about 240 W at idle, weighs roughly 82 kg, and its shipping flight case adds 22 kg.
Engineering and use context
The layout is dual mono, with a fully isolated power supply for each channel. There are 40 selected MOS-FET output transistors, twice the count of the AMP IV, fed by two magnetically shielded and encapsulated toroidal transformers and more than 220,000 uF of filter capacitance from German suppliers. Gold-plated contacts are used throughout. The switchable damping factor linearization from Accustic Arts can be engaged or bypassed, a protective circuit reacts to clipping, HF oscillation and excessive DC offset, and an integrated soft-start limits current at power-on. The housing is heavy, resonance-optimised aluminium with a front inlay of high-gloss polished and chromed brass.
Pairing
The high damping factor and low-impedance capability make the AMP VI suitable for large passive loudspeakers with low sensitivity or awkward impedance, driven from one chassis instead of two monoblocks. XLR and RCA inputs are both present and selected by a switch, and gold-plated terminals accept bi-wire runs. A preamplifier with balanced output is the obvious partner, and the heavy chassis calls for a floor-level location.
Alternatives
The Accustic Arts AMP IV is a smaller stereo power amplifier in its fifth generation, rated at 400 W per channel into 8 ohm and weighing about 44 kg.
Specifications
Model name
AMP VI
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
16 000
Input impedance (single-ended) (Ω)
15 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
950
Output power (4Ω) (W)
1500
Gain (dBu)
30
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
96
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.003
Max power consumption (W)
240
Damping factor
>500
Dimensions (mm)
328 x 530 x 545
Weight (kg)
82
