Power amplifiers stereo — Accustic Arts AMP IV
Description, images, technical data and specifications

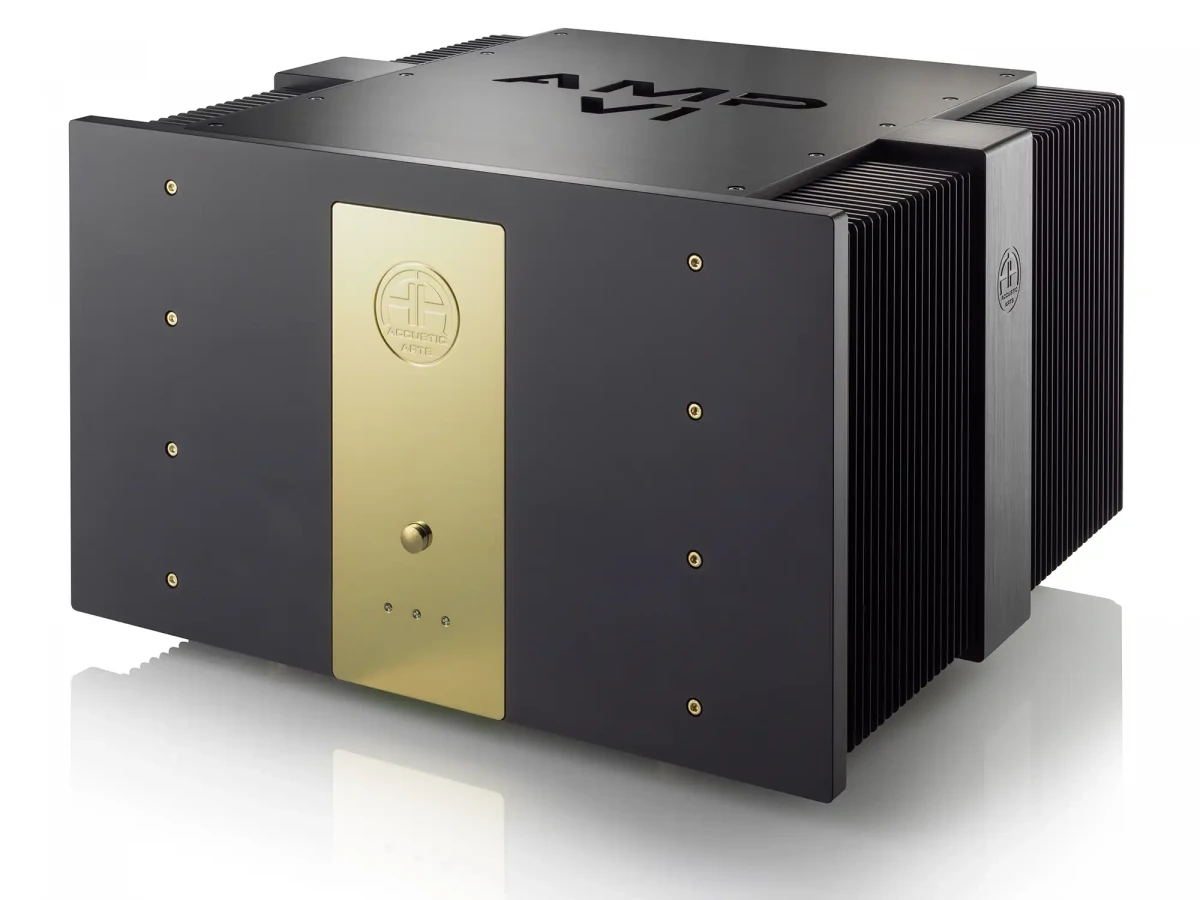

Accustic Arts AMP IV
Image source — © Accustic Arts
The Accustic Arts AMP IV power amplifier has a minimum resistance of 2 ohms and is capable of producing 810 watts at an output with a resistance of 2 ohms.
Specifications
Model name
AMP IV
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
16 000
Input impedance (single-ended) (Ω)
15 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
400
Output power (4Ω) (W)
620
Gain (dBu)
25
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
103
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.003
Max power consumption (W)
120
Damping factor
N/A
Dimensions (mm)
340 x 470 x 440
Weight (kg)
44
