Power amplifiers mono — Parasound JCA100
Description, images, technical data and specifications
Parasound JCA100
Image source — © Parasound
The Parasound JCA100 Tribute amplifier. The model name is intended to pay homage to the legendary engineer John Curl, and the "A100" indicates that the output stage operates in Class A up to 100 watts at 8 ohms.
Specifications
Model name
JCA100
Input sensitivity (mV)
1000
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
50 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
100
Output power (4Ω) (W)
200
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
2
Frequency response high +/- 3dB (Hz)
120 000
Signal to Noise Ratio (dB)
>120
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
< 0.15
Max power consumption (W)
250
Damping factor
N/A
Dimensions (mm)
448 × 197 × 508
Weight (kg)
37.6
Official link
More components
Power amplifiers mono

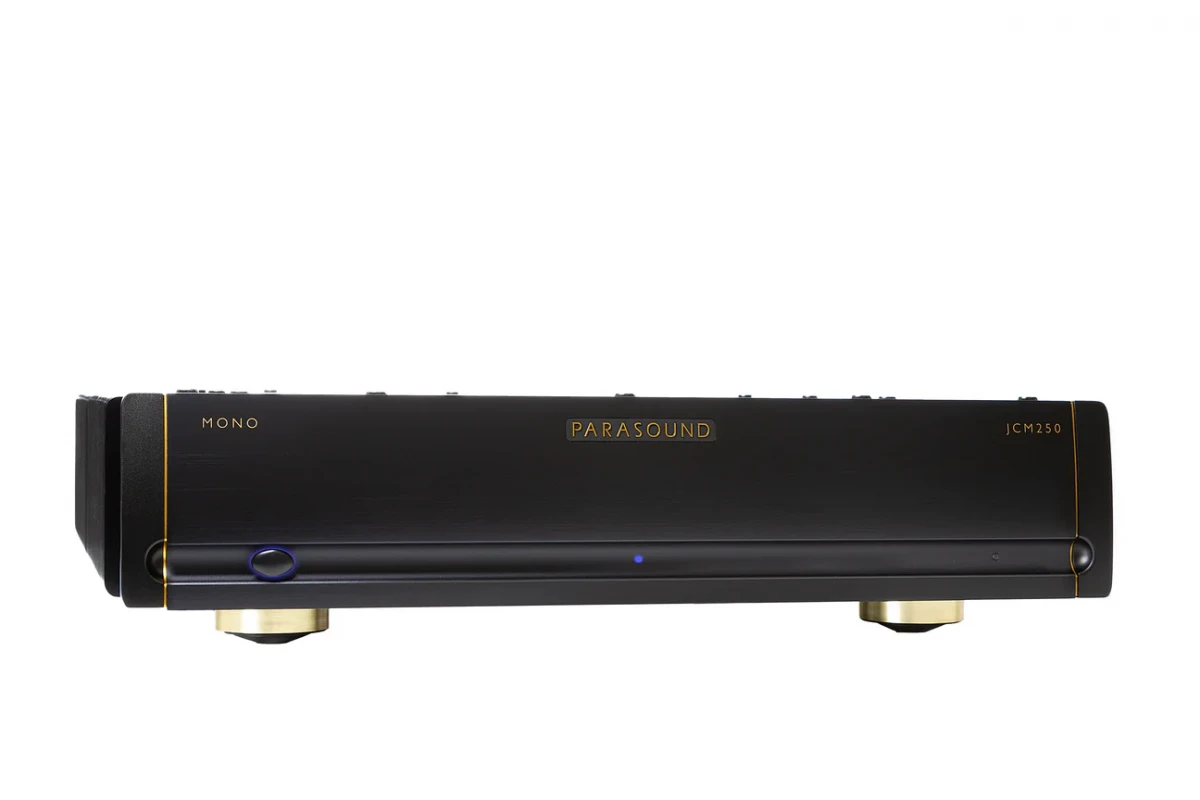

Parasound JCM250
