Power amplifiers mono — Audionet AMP I V2
Description, images, technical data and specifications

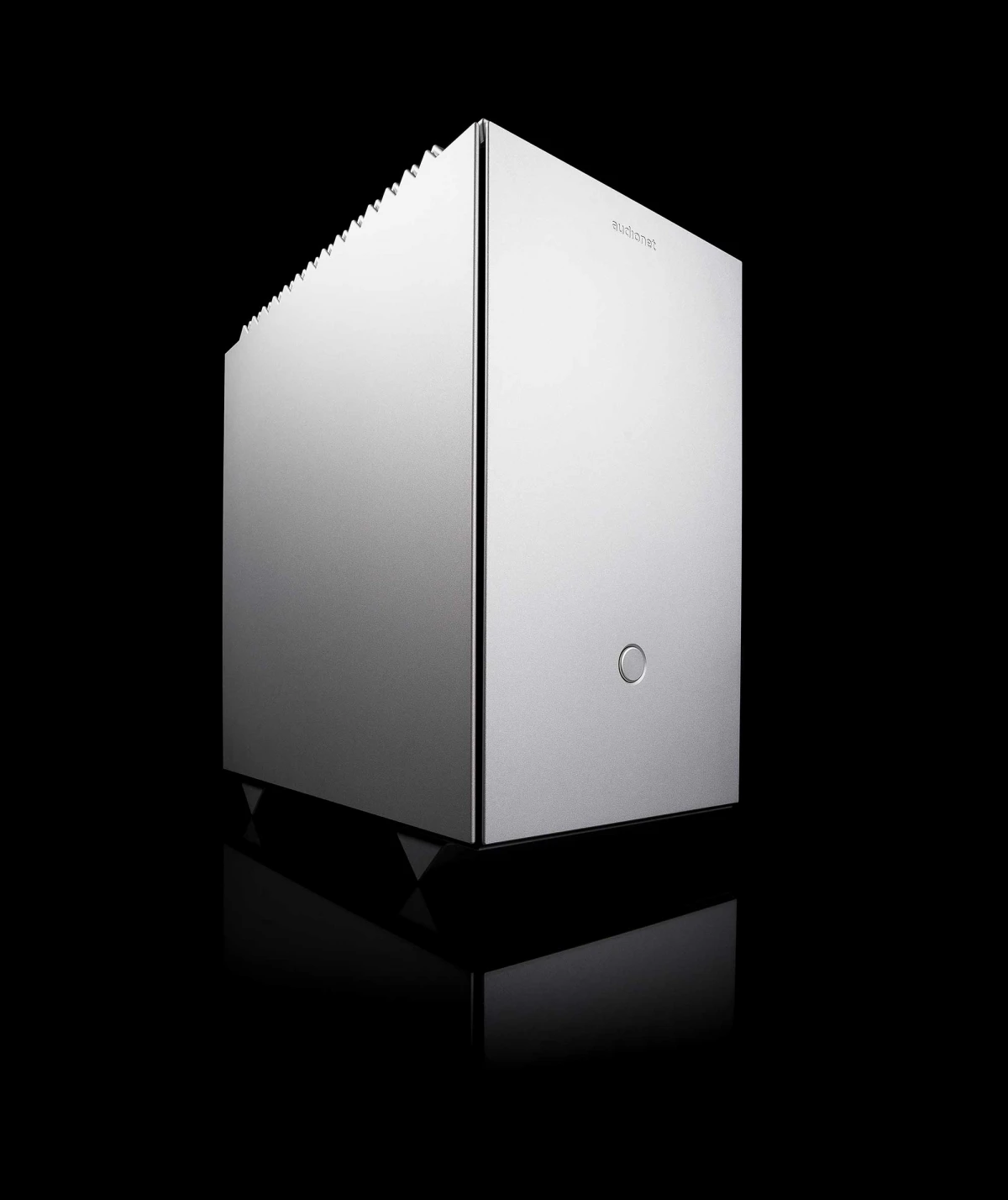

Audionet AMP I V2
Image source — © Audionet
The Audionet AMP I V2 is a two-channel power amplifier made in a massive metal case and weighing 28 kg, which indicates the solidity of its design. On the front panel of the device, made of polished aluminum, there is a single power button, as well as an LED to indicate its operating mode. At the back there are RCA connectors for the left and right channels, as well as screw terminals for connecting speakers. All connectors are of high quality and have gold-plated contact surfaces.
Specifications
Model name
AMP I V2
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
37 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
300
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
0
Frequency response high +/- 3dB (Hz)
300 000
Signal to Noise Ratio (dB)
>106
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
1500
Damping factor
> 10 000 @ 100 Hz
Dimensions (mm)
430 × 175 × 315
Weight (kg)
28
Official link
