Power amplifiers mono — Soulution Audio 511 Mono
Description, images, technical data and specifications

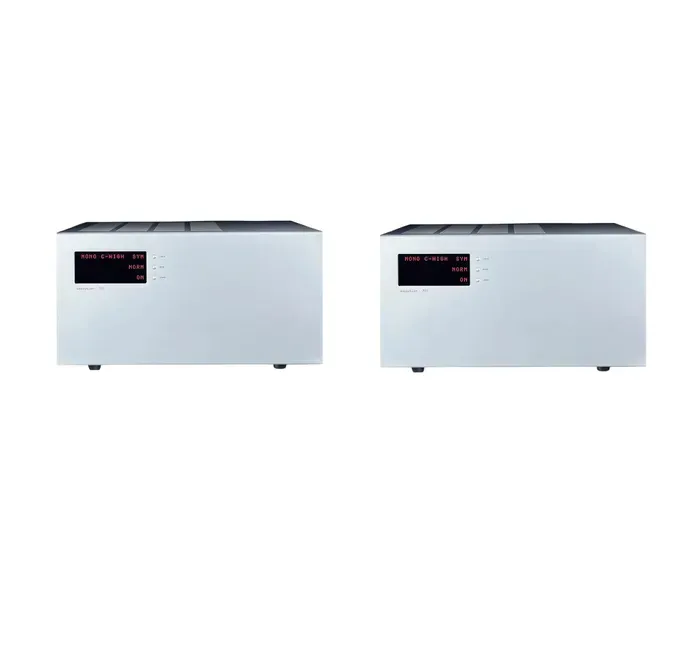

Soulution Audio 511 Mono
Image source — © Soulution Audio
The amplification scheme is similar to the technology used for the 711 and 701 amplifiers. It is based on a proprietary voltage amplification cascade consisting of linearized amplifiers operating up to a cutoff frequency of 80 MHz. Current amplification is performed in three stages, each of which uses a very small and thus almost linear operating range. High Class A operation, complemented by 500,000 UF of storage capacity in the power supply, results in an almost infinite pulse response.
Specifications
Model name
511 Mono
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
2000
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
600
Output power (4Ω) (W)
1200
Gain (dBu)
32
Frequency response low +/- 3dB (Hz)
0
Frequency response high +/- 3dB (Hz)
1 600 000
Signal to Noise Ratio (dB)
108
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
< 0.001
Max power consumption (W)
2000
Damping factor
>5000
Dimensions (mm)
442 × 270 × 448
Weight (kg)
30
