Integrated amplifiers — Vincent SV-500
Description, images, technical data and specifications
Vincent SV-500
Image source — © Vincent
The SV-500 is equipped with four analog inputs (RCA connectors) and two digital inputs (RCA and optical). There is also an adjustable preamp output (for example, for connecting a subwoofer) and a recording output. The cool look is successfully complemented by a stylish remote control with an aluminum case.
Specifications
Model name
SV-500
Type
Integrated Amplifier
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
4
Input sensitivity (mV)
420
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
50
Output power (4Ω) (W)
80
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Signal to Noise Ratio (dB)
>90
Total Harmonic Distortion + Noise (%)
<0.1
Damping factor
N/A
Dimensions (mm)
430 x 118 x 375
Weight (kg)
10
Official link
More components
Integrated amplifiers

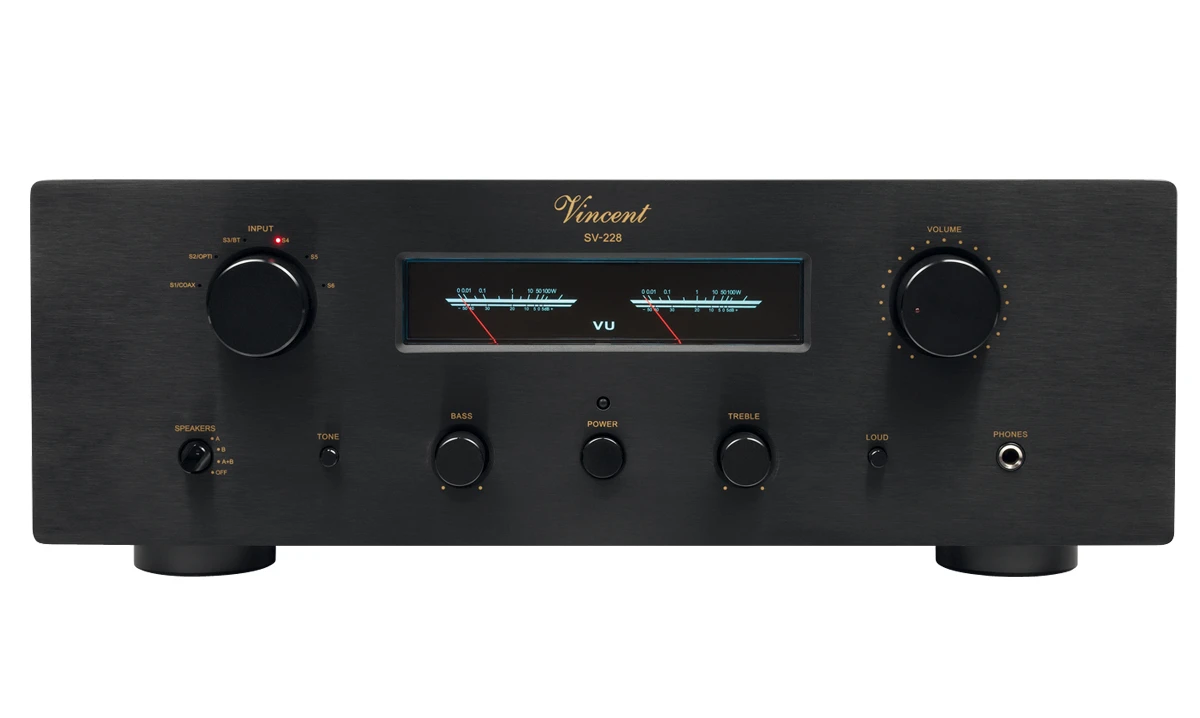

Vincent SV-228
Integrated amplifiers

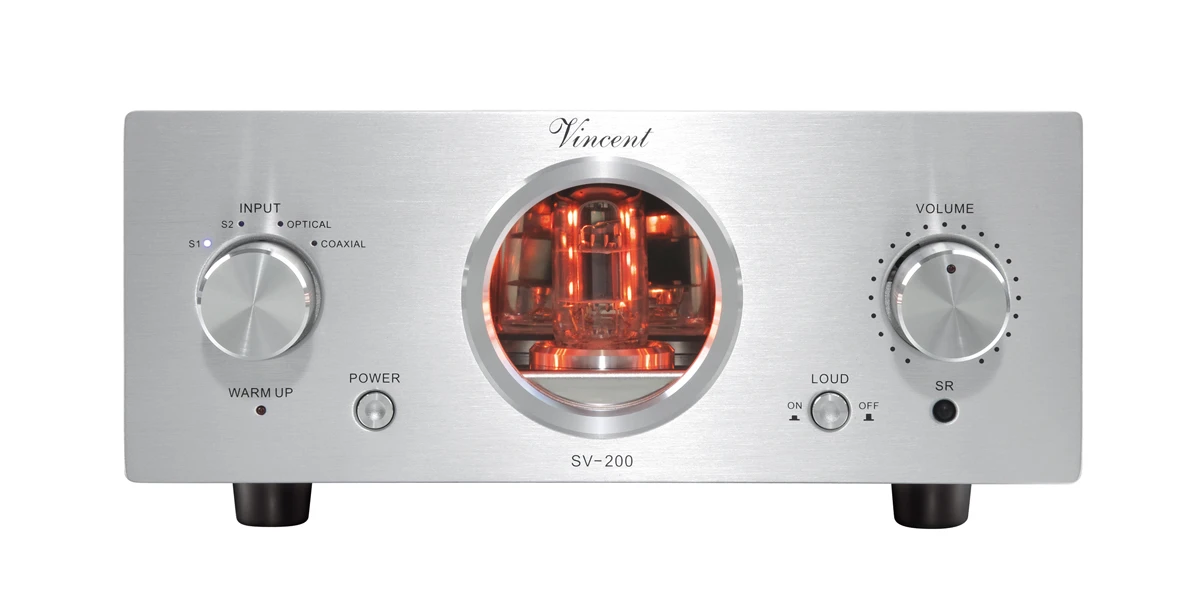

Vincent SV-200
Integrated amplifiers

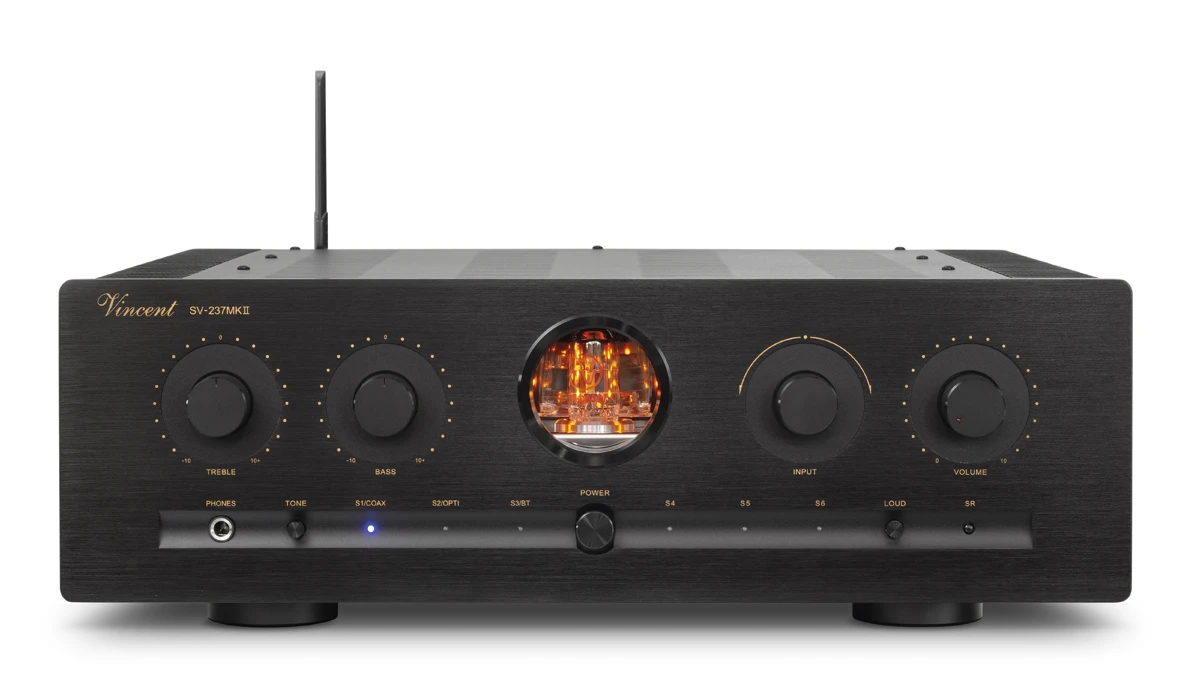

Vincent SV-237MKII
Integrated amplifiers

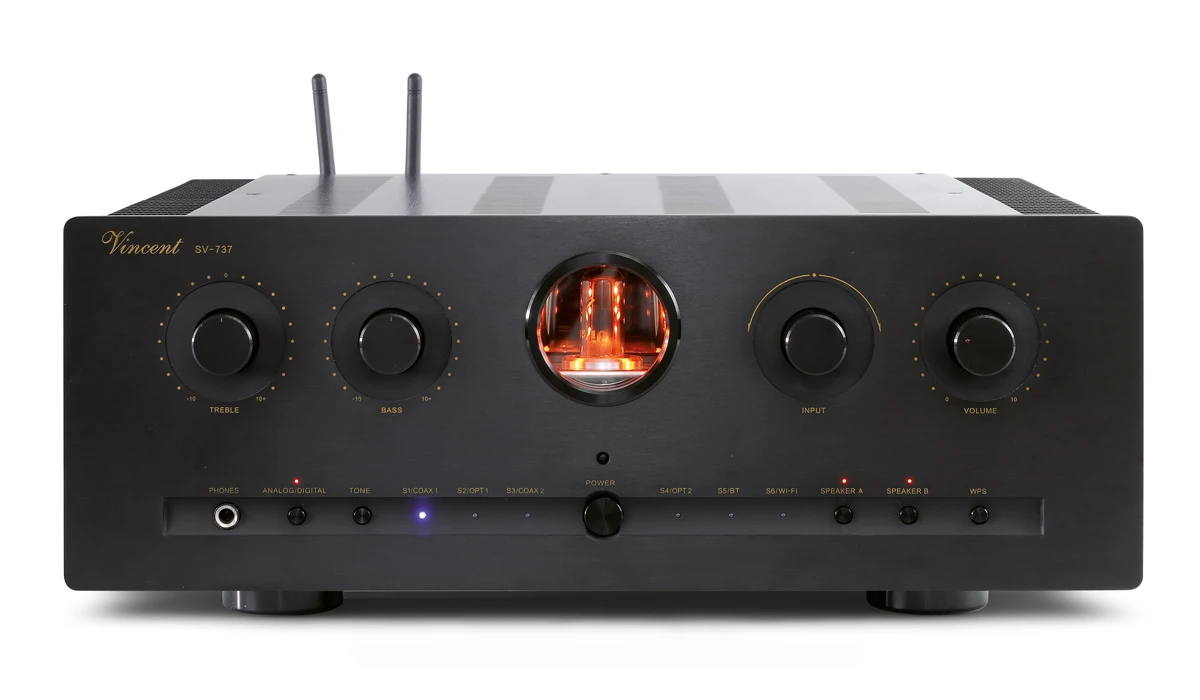

Vincent SV-737
Integrated amplifiers

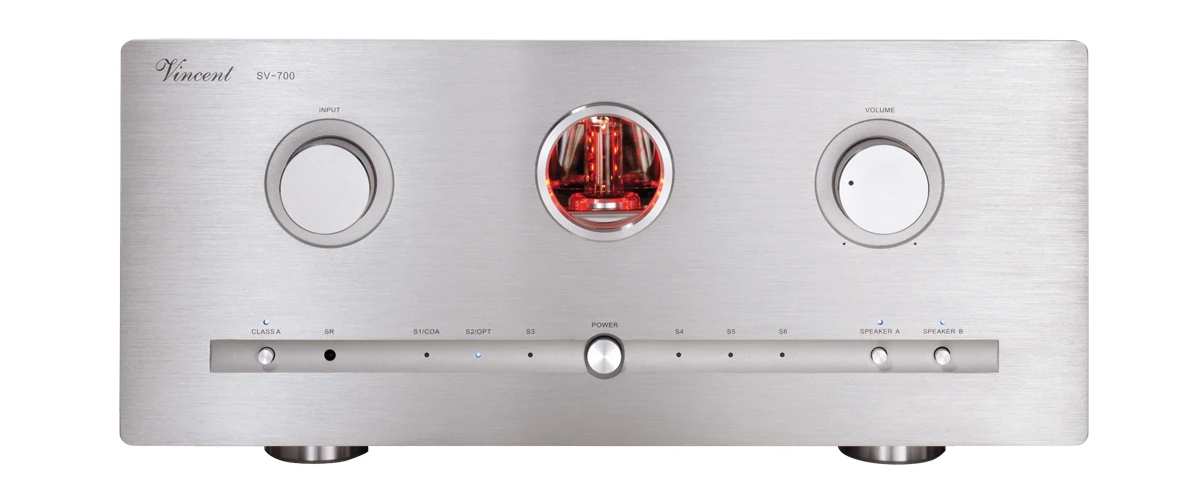

Vincent SV-700
