Integrated amplifiers — Marantz PM-10
Description, images, technical data and specifications
Marantz PM-10
Image source — © Marantz
The Marantz PM-10 is a premium integrated stereo amplifier with an output power of 2×200 watts (8 ohms) and advanced Class D pulse amplification technology. It is equipped with a discrete MM/MC phono corrector, balanced (XLR) and unbalanced (RCA) inputs, as well as Purest Mode for maximum clear sound.
Specifications
Model name
PM-10
Type
Reference Integrated Stereo Amplifier with 200W and Custom HDAM
Analog inputs (balanced)
2
Analog inputs (single-ended)
5
Input sensitivity (mV)
400
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
20 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
400
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
113
Total Harmonic Distortion + Noise (%)
0.01
Damping factor
500
Dimensions (mm)
440 x 453 x 168
Weight (kg)
21.5
Official link
More components
Integrated amplifiers

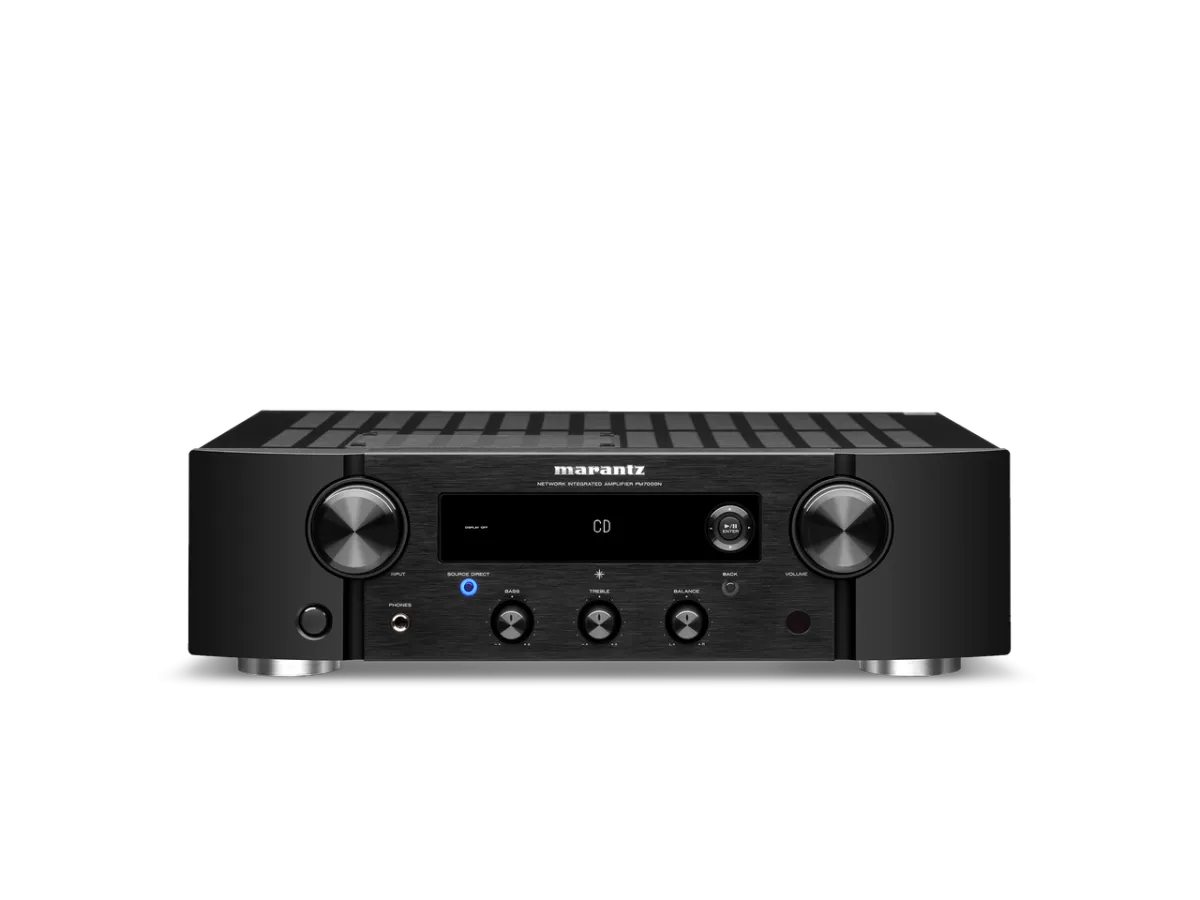

Marantz PM7000N
Integrated amplifiers

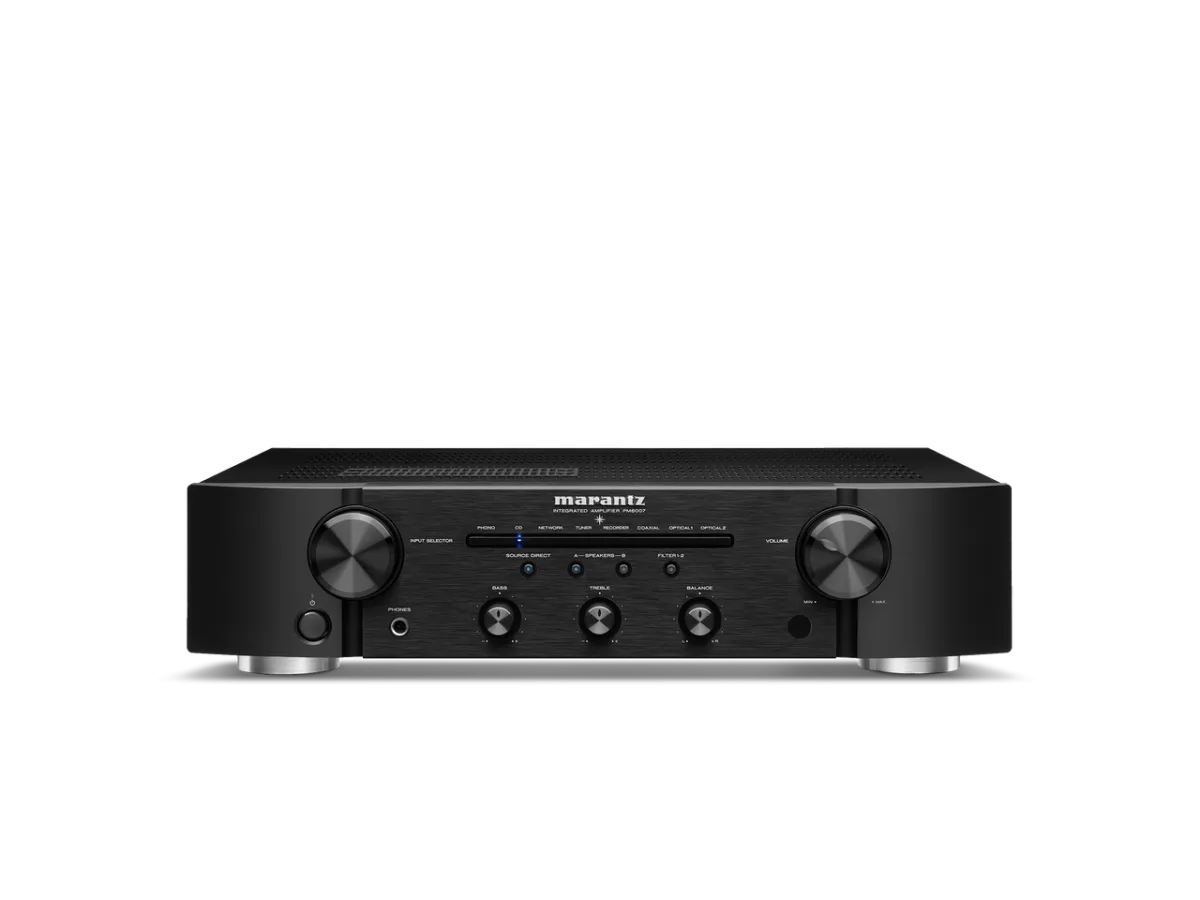

Marantz PM6007
Integrated amplifiers

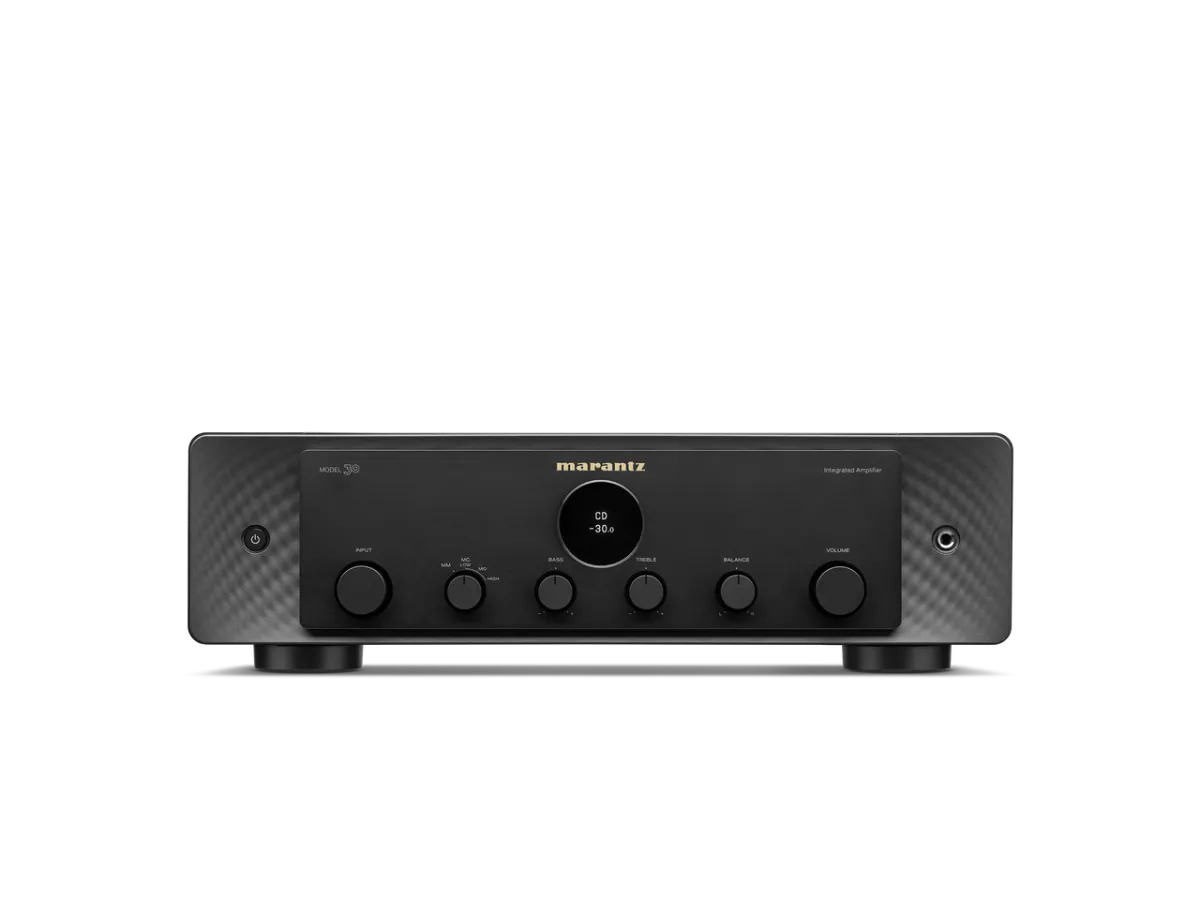

Marantz MODEL 50
Integrated amplifiers

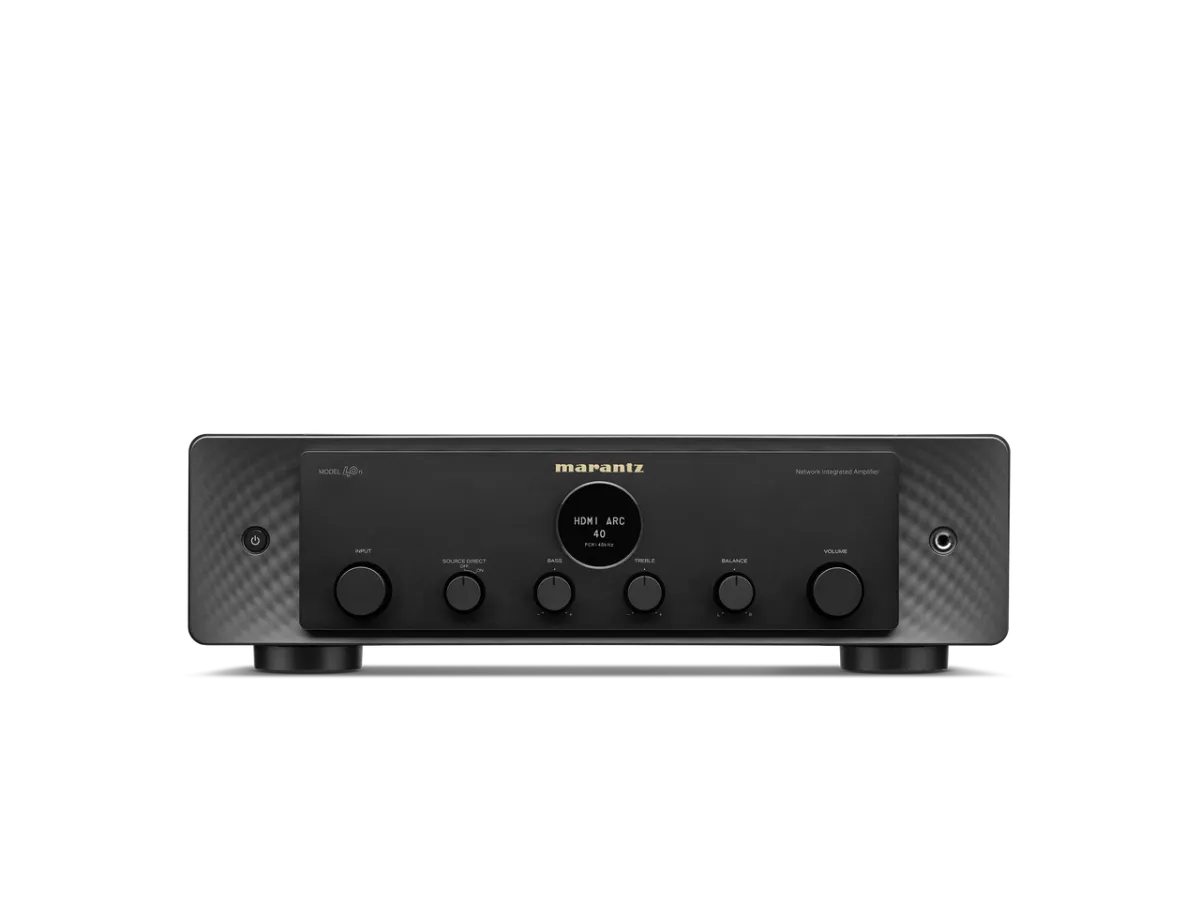

Marantz MODEL 40n
Integrated amplifiers

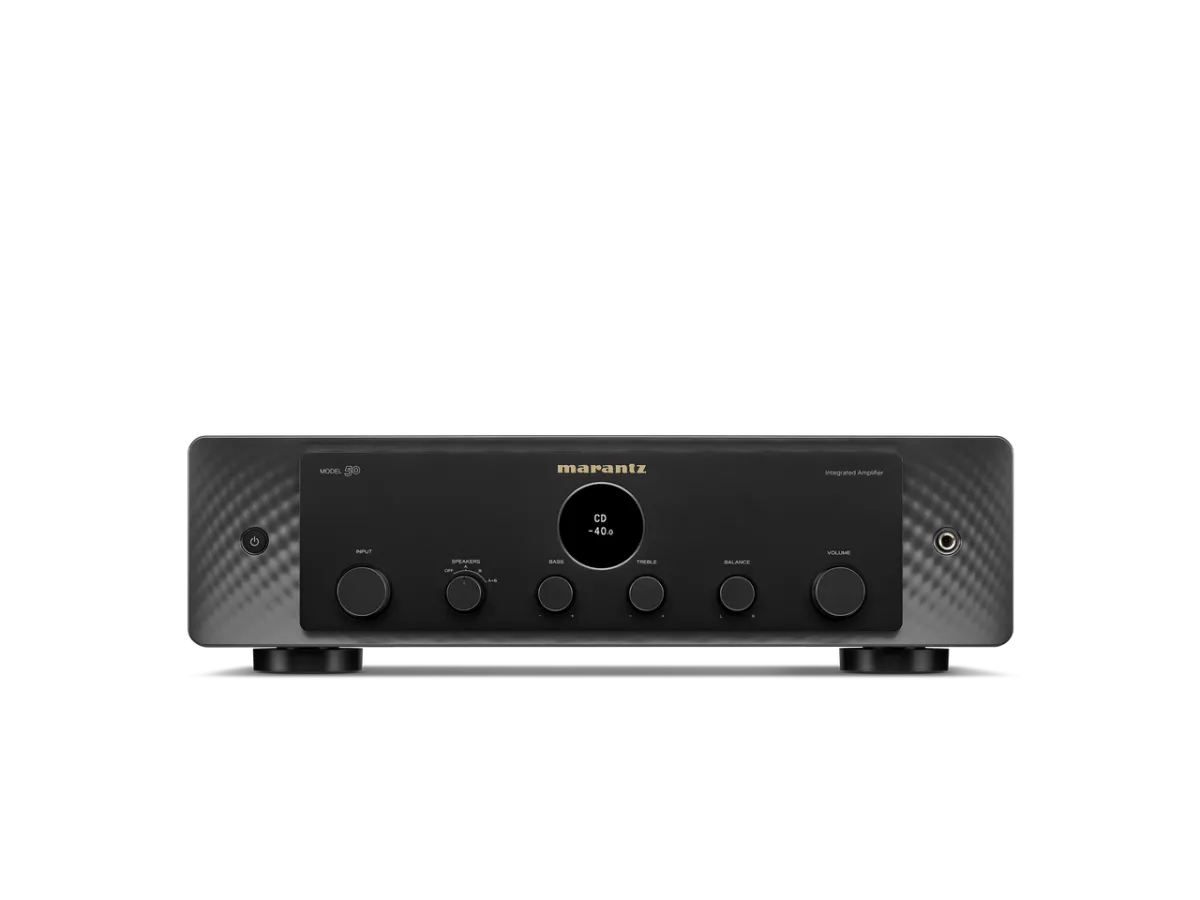

Marantz MODEL 30
