Integrated amplifiers — Gato Audio DIA-400S
Description, images, technical data and specifications

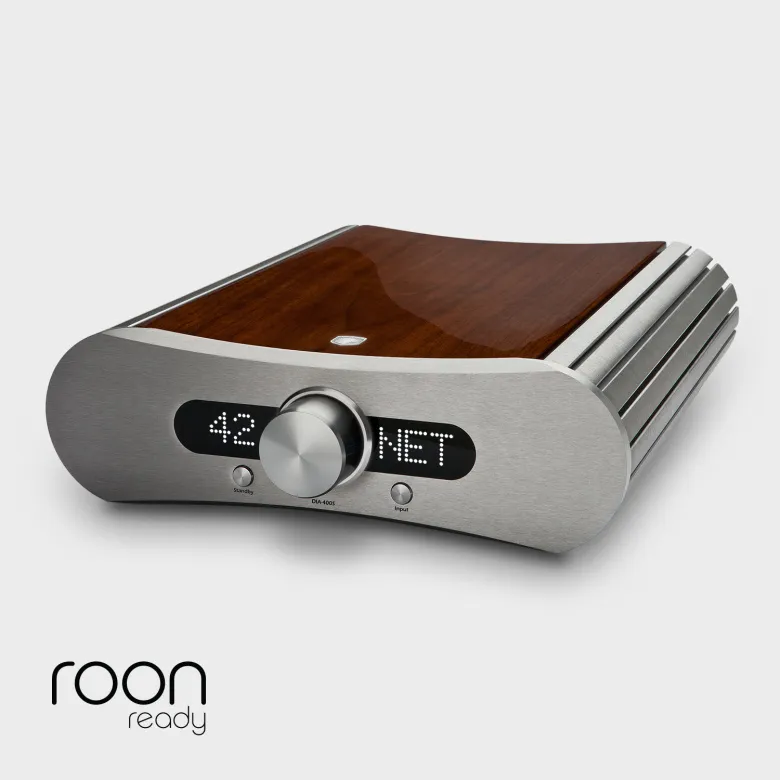

Gato Audio DIA-400S
Image source — © Gato Audio
The Gato Audio DIA-400S integrated amplifier with digital inputs is designed with an eye to combining various technologies, power, musicality, versatility, sociability, stunning appearance and compact size. The DIA-400S amplifier has a technically advanced solution in the form of Class D output stages with a separate power supply.
Specifications
Model name
DIA-400S
Type
Intagrated Amplifier with DAC
Analog inputs (balanced)
1
Analog inputs (single-ended)
2
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
40 000
Input impedance (single-ended) (Ω)
20 000
Output impedance (balanced) (Ω)
75
Output impedance (single-ended) (Ω)
75
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
400
Output power (4Ω) (W)
800
Gain (dBu)
26
Frequency response low +/- 3dB (Hz)
2
Frequency response high +/- 3dB (Hz)
70 000
Signal to Noise Ratio (dB)
>110
Total Harmonic Distortion + Noise (%)
< 0,01
Damping factor
N/A
Dimensions (mm)
325 x 105 x 420
Weight (kg)
13
Official link
