Integrated amplifiers — NAD C 338
Description, images, technical data and specifications
NAD C 338

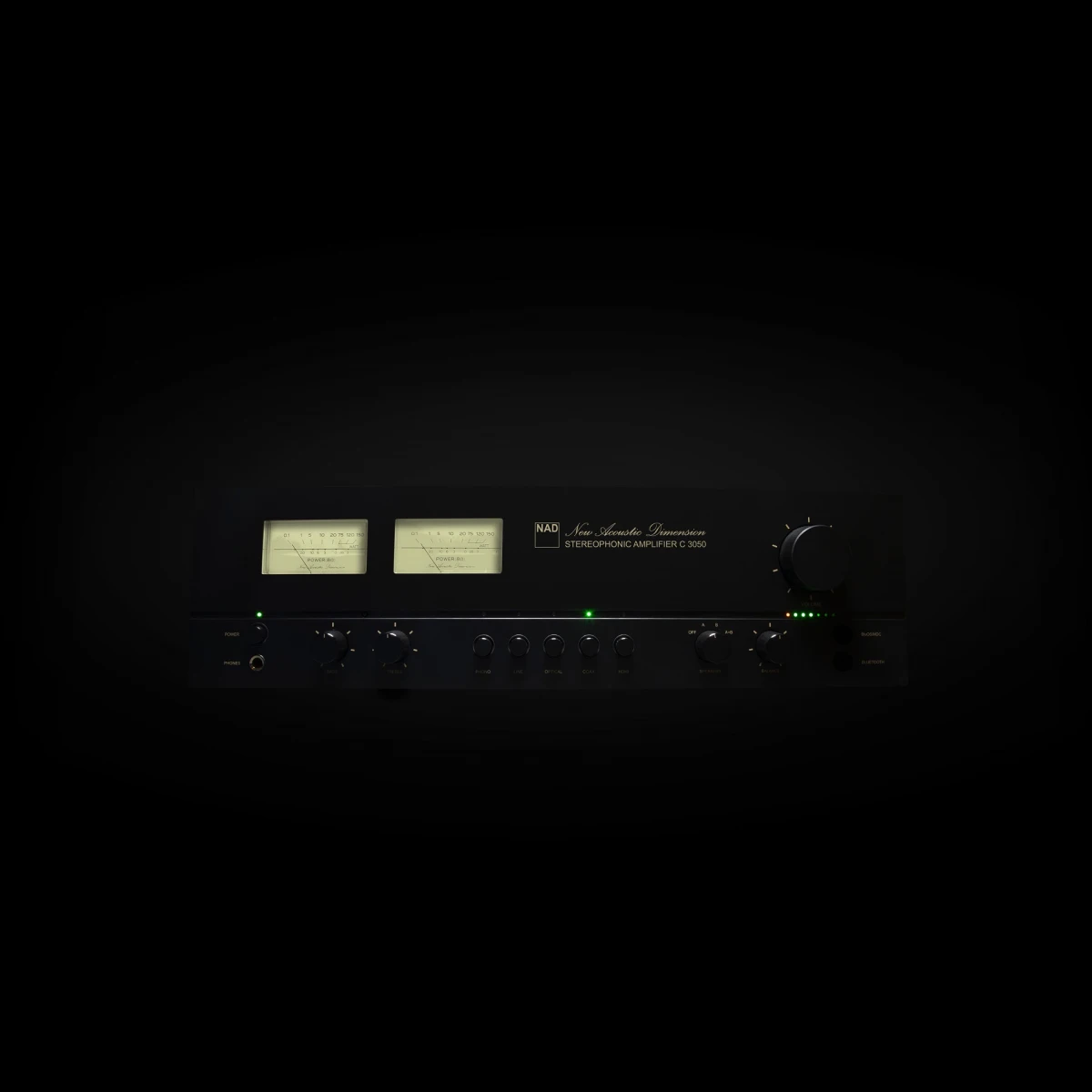

Image source — © NAD
Hybrid digital stereo amplifier. 2 x 50 Watts, Wi-Fi with the ability to stream various music services, Internet radio, Google Cast and UPnP support, Bluetooth®, MM phono input, TV audio input, SPDIF coaxial and optical inputs, subwoofer output, headphone amplifier, woofer equalizer, remote control, smartphone application.
Specifications
Model name
C 338
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
3 + 1 (Phono)
Input sensitivity (mV)
380
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
56 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
200
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
47 000
Output power (8Ω) (W)
80
Output power (4Ω) (W)
150
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>98
Total Harmonic Distortion + Noise (%)
<0.03
Damping factor
>300
Dimensions (mm)
435 x 70 x 285
Weight (kg)
4.85
