Integrated amplifiers — Rotel A10MKII
Description, images, technical data and specifications
Rotel A10MKII
Image source — © Rotel
The A10MKII is an accomplished integrated amplifier with phono stage from Rotel, offering the perfect combination of power and style, built on a linear power supply with a massive Rotel toroidal power transformer. The A10MKII brings Rotel's considered engineering to a compact, feature-rich integrated-amplification format.
Key specs that matter
Four single-ended analogue inputs are provided. Input sensitivity is 120mV, with input impedance at 45,000 ohms. Output power reaches 50W into 8 ohms, rising to 60W into 4 ohms. Frequency response spans 20Hz to 20,000Hz within plus-or-minus 3dB. Total harmonic distortion plus noise is under 0.03%, with damping factor at 120. At 430 x 73 x 347mm and 6.6kg, the A10MKII maintains a compact integrated-amplifier chassis reflecting Rotel's considered linear-power-supply engineering.
Sound and use context
Expect a clean, dependable performance reflecting the massive toroidal transformer's linear power delivery, with the built-in phono stage covering vinyl playback directly within one compact, stylish chassis.
Pairing
The built-in phono stage covers a turntable directly without needing an external phono preamplifier, and the four single-ended inputs accommodate a comprehensive source collection.
Alternatives
Rotel's own broader integrated-amplifier catalogue offers related alternatives at different power levels within the same considered engineering philosophy.
Key specs that matter
Four single-ended analogue inputs are provided. Input sensitivity is 120mV, with input impedance at 45,000 ohms. Output power reaches 50W into 8 ohms, rising to 60W into 4 ohms. Frequency response spans 20Hz to 20,000Hz within plus-or-minus 3dB. Total harmonic distortion plus noise is under 0.03%, with damping factor at 120. At 430 x 73 x 347mm and 6.6kg, the A10MKII maintains a compact integrated-amplifier chassis reflecting Rotel's considered linear-power-supply engineering.
Sound and use context
Expect a clean, dependable performance reflecting the massive toroidal transformer's linear power delivery, with the built-in phono stage covering vinyl playback directly within one compact, stylish chassis.
Pairing
The built-in phono stage covers a turntable directly without needing an external phono preamplifier, and the four single-ended inputs accommodate a comprehensive source collection.
Alternatives
Rotel's own broader integrated-amplifier catalogue offers related alternatives at different power levels within the same considered engineering philosophy.
Specifications
Model name
A10MKII
Type
Integrated Amplifier with Phono
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
4
Input sensitivity (mV)
120
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
45 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
50
Output power (4Ω) (W)
60
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (%)
<0.03
Damping factor
120
Dimensions (mm)
430 × 73 × 347
Weight (kg)
6.6
Official link
More components
Integrated amplifiers
Rotel S14
Integrated amplifiers
Rotel RAS-5000
Integrated amplifiers

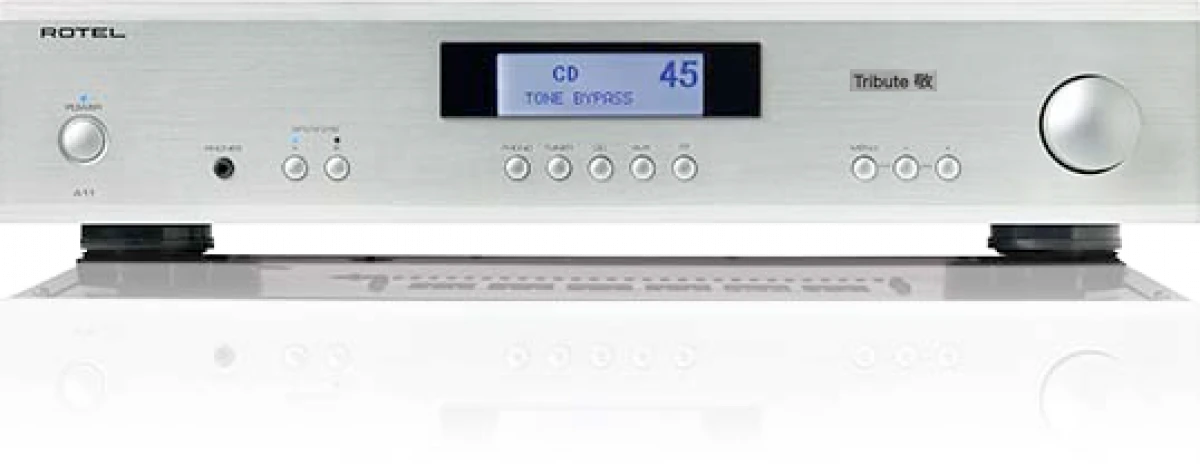

Rotel A11 Tribute
