Integrated amplifiers — Audiolab 8300A

Name: 8300A
Brand: Audiolab
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Audiolab 8300A
Image source — © Audiolab

The Audiolab 8300A has a "dual mono" type design, it operates in class AB, delivering up to 75 watts per channel to a load with a resistance of 8 ohms. Compared to the previous generation, the Audiolab 8300A is equipped with a higher-power power transformer, more capacious storage capacitors and enlarged radiators, which allowed for increased output power.

Specifications

Model name
8300A
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
1
Analog inputs (single-ended)
1 (Phono)
Input sensitivity (mV)
840
Input impedance (balanced) (Ω)
50 000
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
120
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
47 000
Output power (8Ω) (W)
75
Output power (4Ω) (W)
115
Gain (dBu)
29
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
>109
Total Harmonic Distortion + Noise (%)
<0.001
Damping factor
>100
Dimensions (mm)
80 x 444 x 330.3
Weight (kg)
7.8
Official link
https://www.audiolab.co.uk/collections/amplifiers/products/8300a

Audiolab 6000A Play

Audiolab 6000A MKII

More components

Integrated amplifiers
Audiolab 6000A MKII
The heart of the Audiolab 6000 MkII integrated amplifier power supply is a 200 VA toroidal transformer supported by four 15,000 UF smoothing capacitors.
Integrated amplifiers
Audiolab 6000A Play
The output power remained at the same level, that is, 50 watts per channel when operating on speakers with a nominal resistance of 8 ohms in the traditional analog class AB. The output stage, according to the manufacturer, is characterized by high thermal stability, while the amplifier can supply a current of up to 9 amperes to the load. A solid 200 VA toroidal transformer is installed in the power supply unit, and the total capacity of the filter capacitors is 60,000 microfarads.
Integrated amplifiers
Audiolab 6000A
The power of the Audiolab 6000A is 50 watts per channel in class AB, and it is also possible to use the device as a power amplifier or pre-amplifier, for which separate inputs and outputs are provided.
Integrated amplifiers

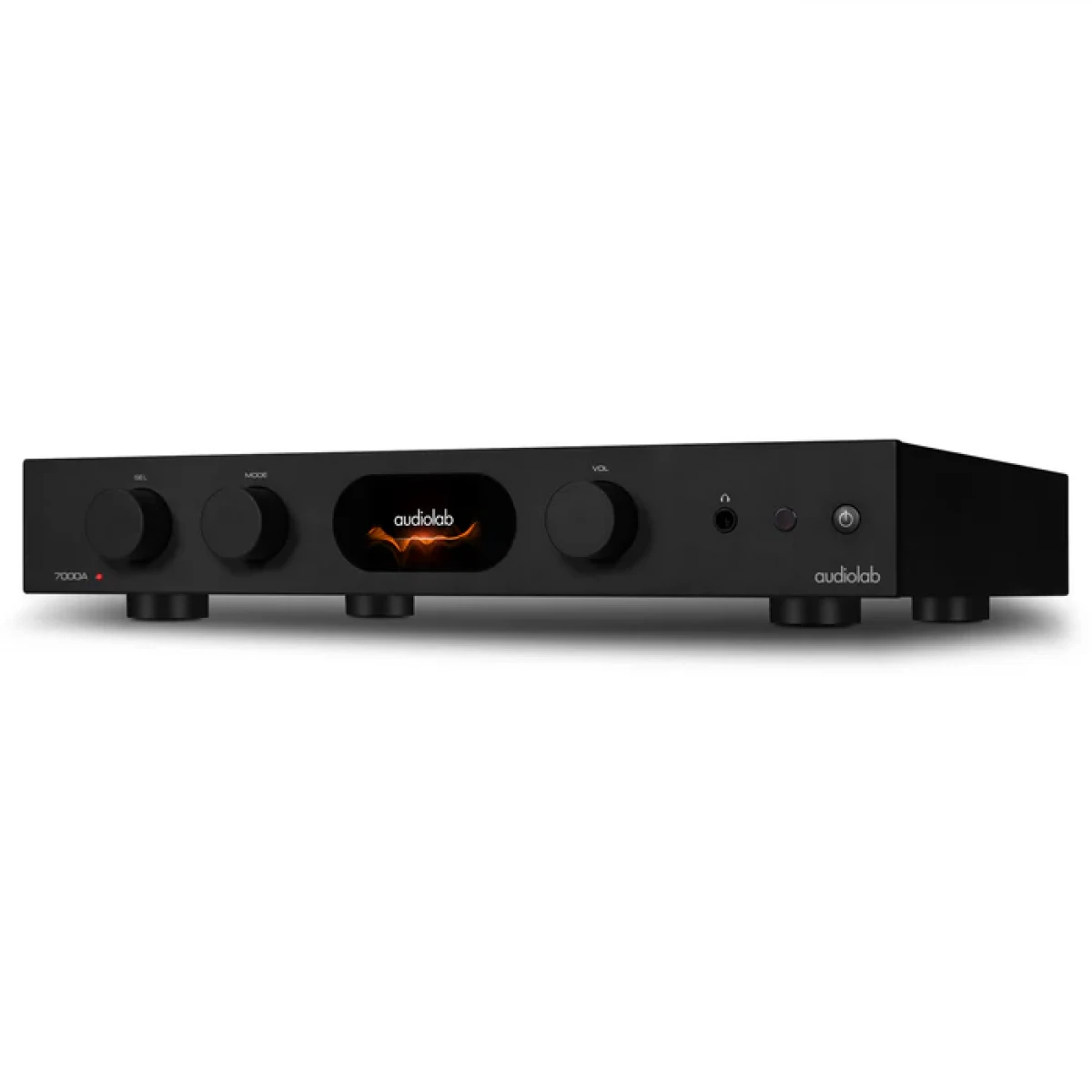

Audiolab 7000A
