Integrated amplifiers — Audiolab 7000A

Description, images, technical data and specifications

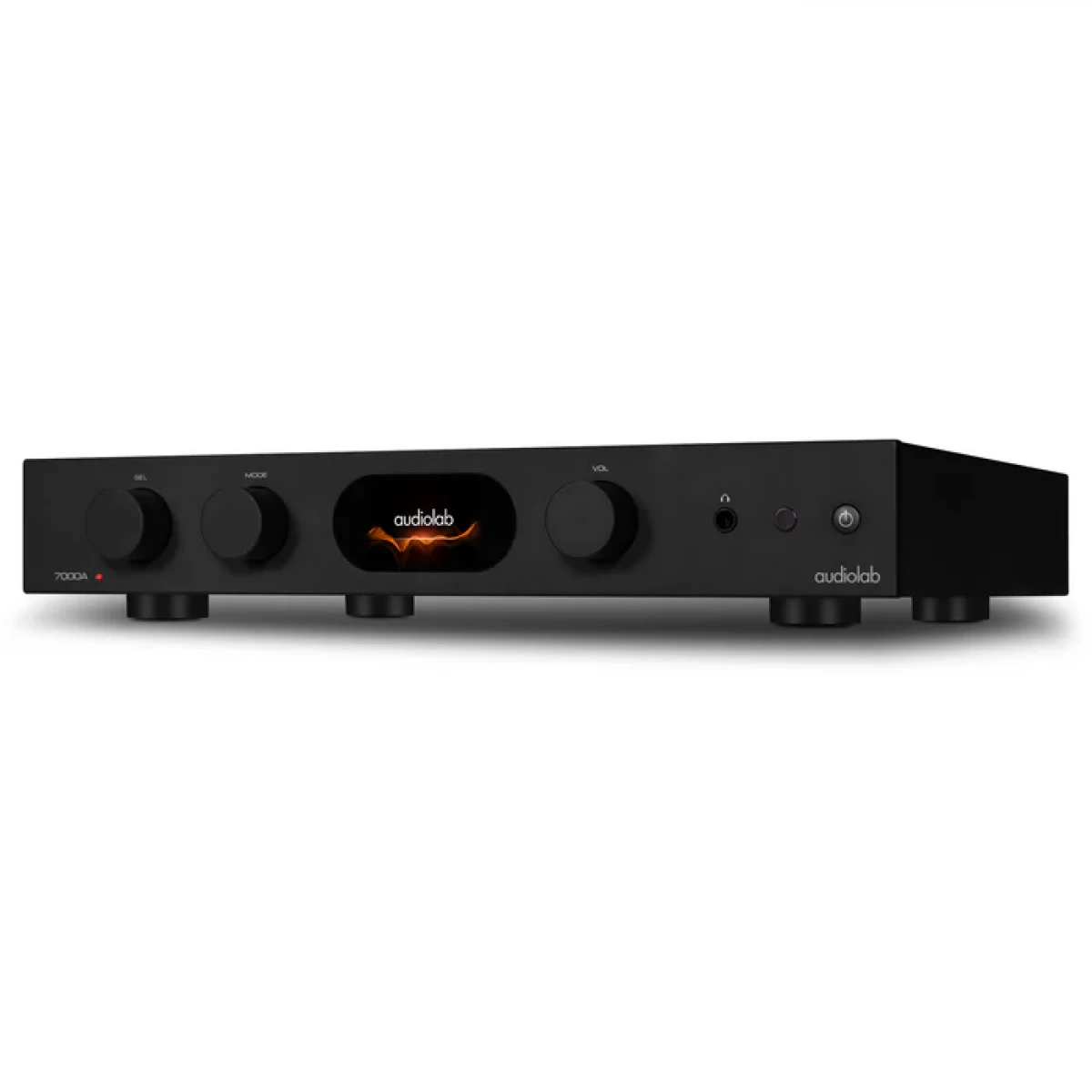

Audiolab 7000A
Image source — © Audiolab

The integrated 7000A amplifier, which looks similar to other AudioLab models and therefore provides full compliance with the visual aesthetics of the brand, surpasses the younger 6000A due to its higher output power of 70 watts per channel, a new DAC, a new full-color IPS LCD screen and much more! More compact than the 9000 series model, it retains its clear ergonomics, high-quality design, useful feature set, and excellent all-round acoustic performance and connectivity.

Specifications

  • Model name

    7000A

  • Type

    Integrated Amplifier with DAC and Phono

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    4 + 1 (Phono)

  • Input sensitivity (mV)

    820 (Line, Volume = 0dB); 3.1 (Phone MM, Volume = 0dB)

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    10 000 (Line); 47 000 // 100pF (Phono MM)

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    100

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    70

  • Output power (4Ω) (W)

    110

  • Gain (dBu)

    6 (Line); 55 (Phono MM)

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    > 110

  • Total Harmonic Distortion + Noise (%)

    < 0.0005

  • Damping factor

    N/A

  • Dimensions (mm)

    444 x 340 x 78

  • Weight (kg)

    8.4

  • Official link

    https://www.audiolab.co.uk/collections/amplifiers/products/7000a

Audiolab 9000A

Audiolab 6000A

More components

  • 6000A MKII

    Integrated amplifiers

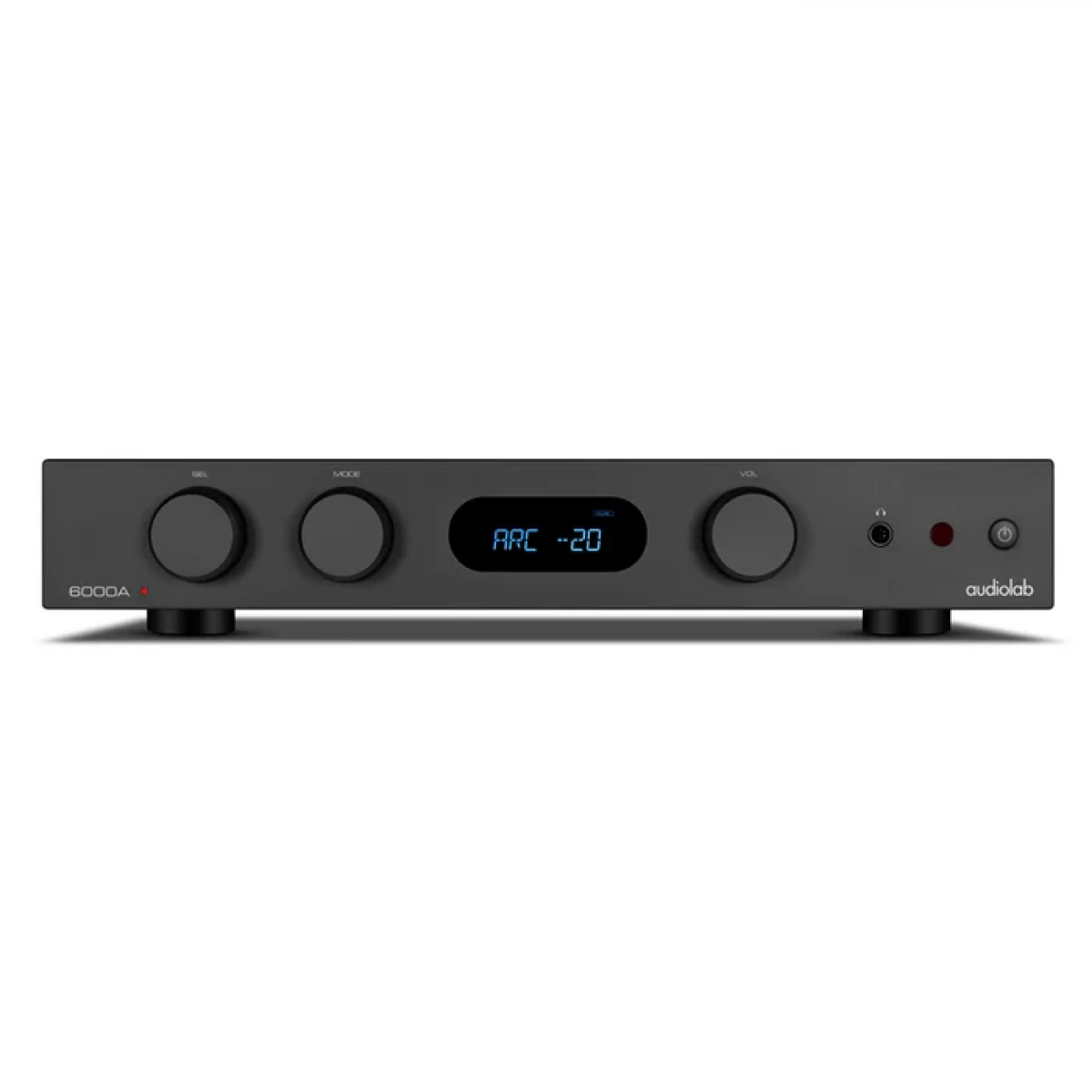

    Audiolab 6000A MKII

    The heart of the Audiolab 6000 MkII integrated amplifier power supply is a 200 VA toroidal transformer supported by four 15,000 UF smoothing capacitors.

  • 8300A

    Integrated amplifiers

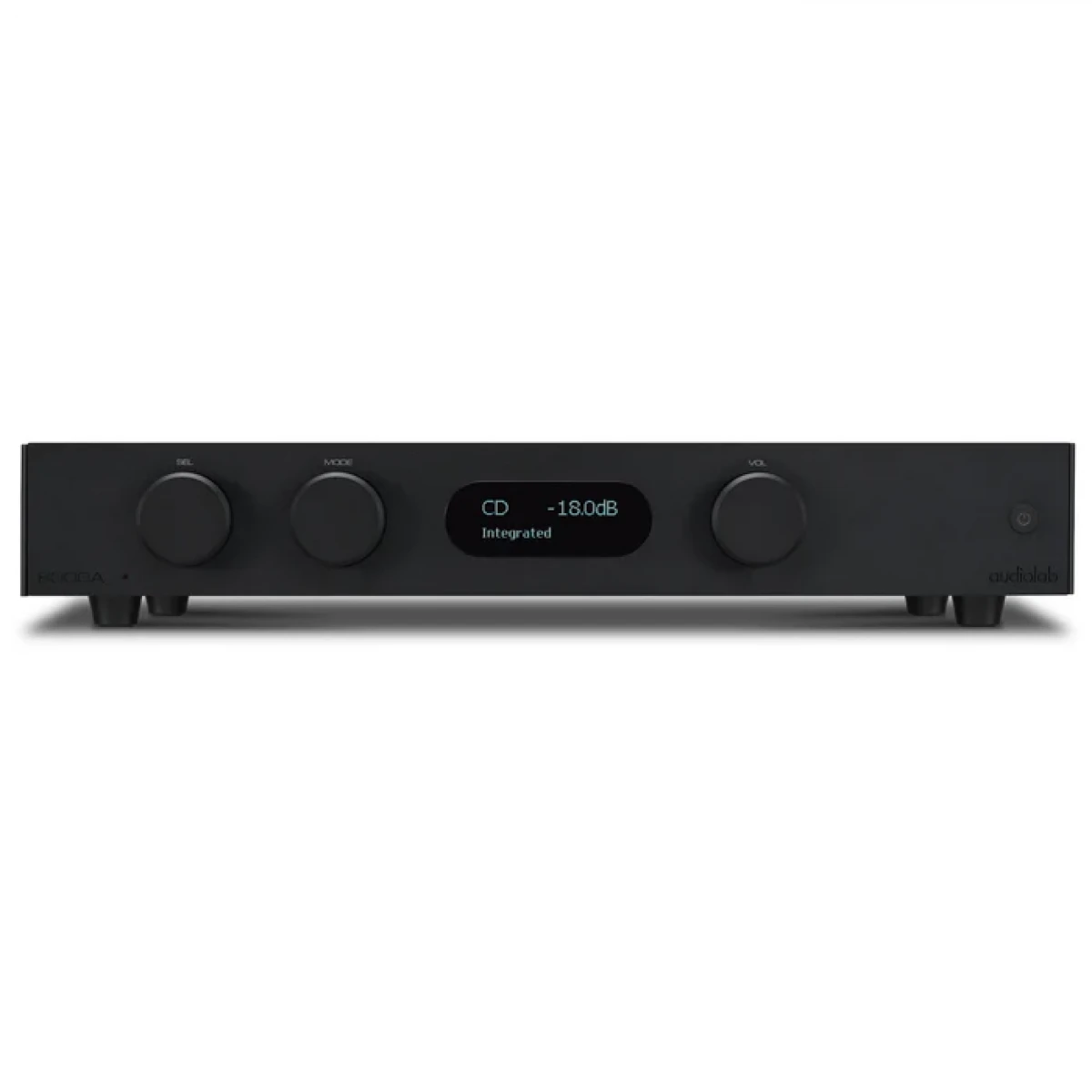

    Audiolab 8300A

    The Audiolab 8300A has a "dual mono" type design, it operates in class AB, delivering up to 75 watts per channel to a load with a resistance of 8 ohms. Compared to the previous generation, the Audiolab 8300A is equipped with a higher-power power transformer, more capacious storage capacitors and enlarged radiators, which allowed for increased output power.

  • 6000A Play

    Integrated amplifiers

    Audiolab 6000A Play

    The output power remained at the same level, that is, 50 watts per channel when operating on speakers with a nominal resistance of 8 ohms in the traditional analog class AB. The output stage, according to the manufacturer, is characterized by high thermal stability, while the amplifier can supply a current of up to 9 amperes to the load. A solid 200 VA toroidal transformer is installed in the power supply unit, and the total capacity of the filter capacitors is 60,000 microfarads.

  • 6000A

    Integrated amplifiers

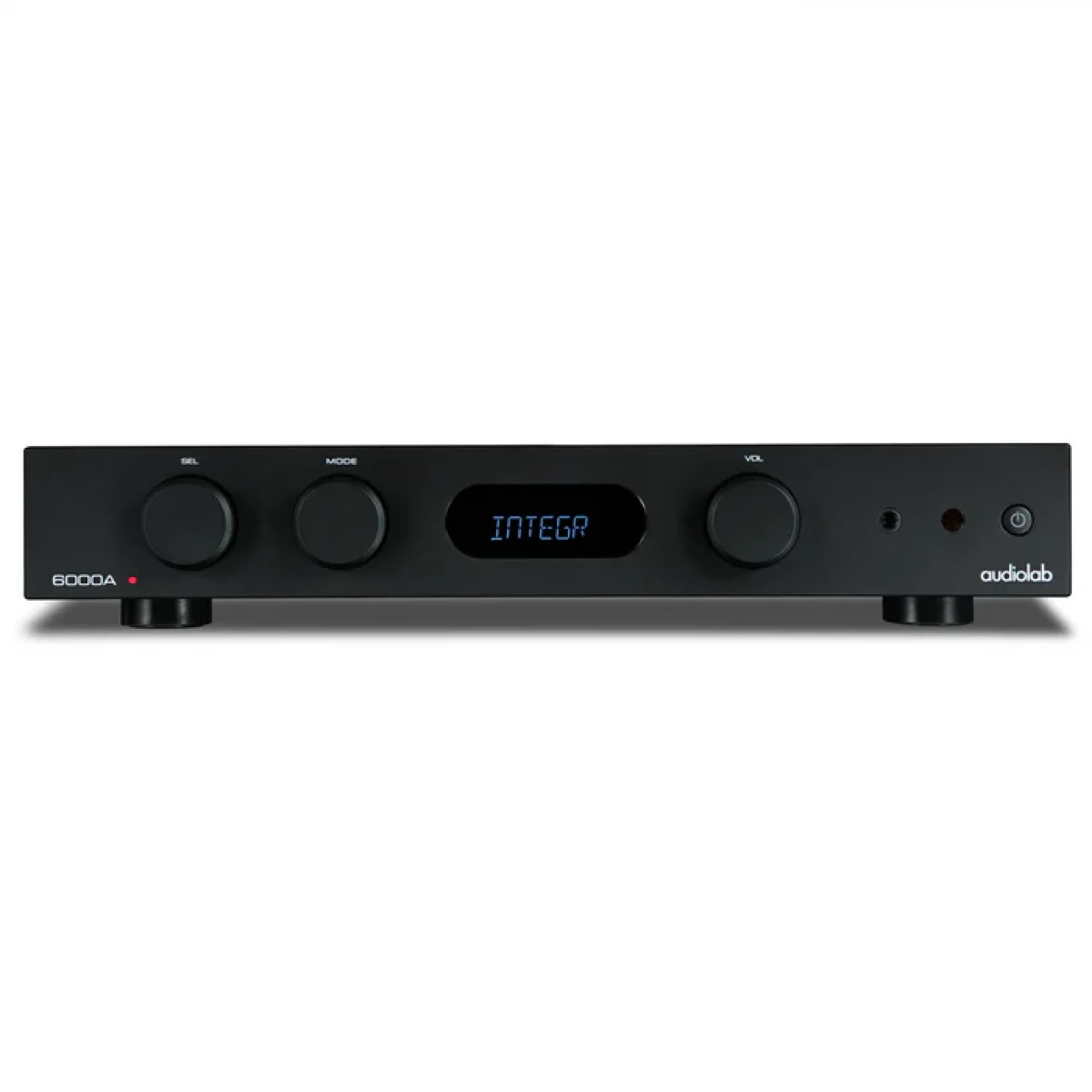

    Audiolab 6000A

    The power of the Audiolab 6000A is 50 watts per channel in class AB, and it is also possible to use the device as a power amplifier or pre-amplifier, for which separate inputs and outputs are provided.

  • 9000A

    Integrated amplifiers

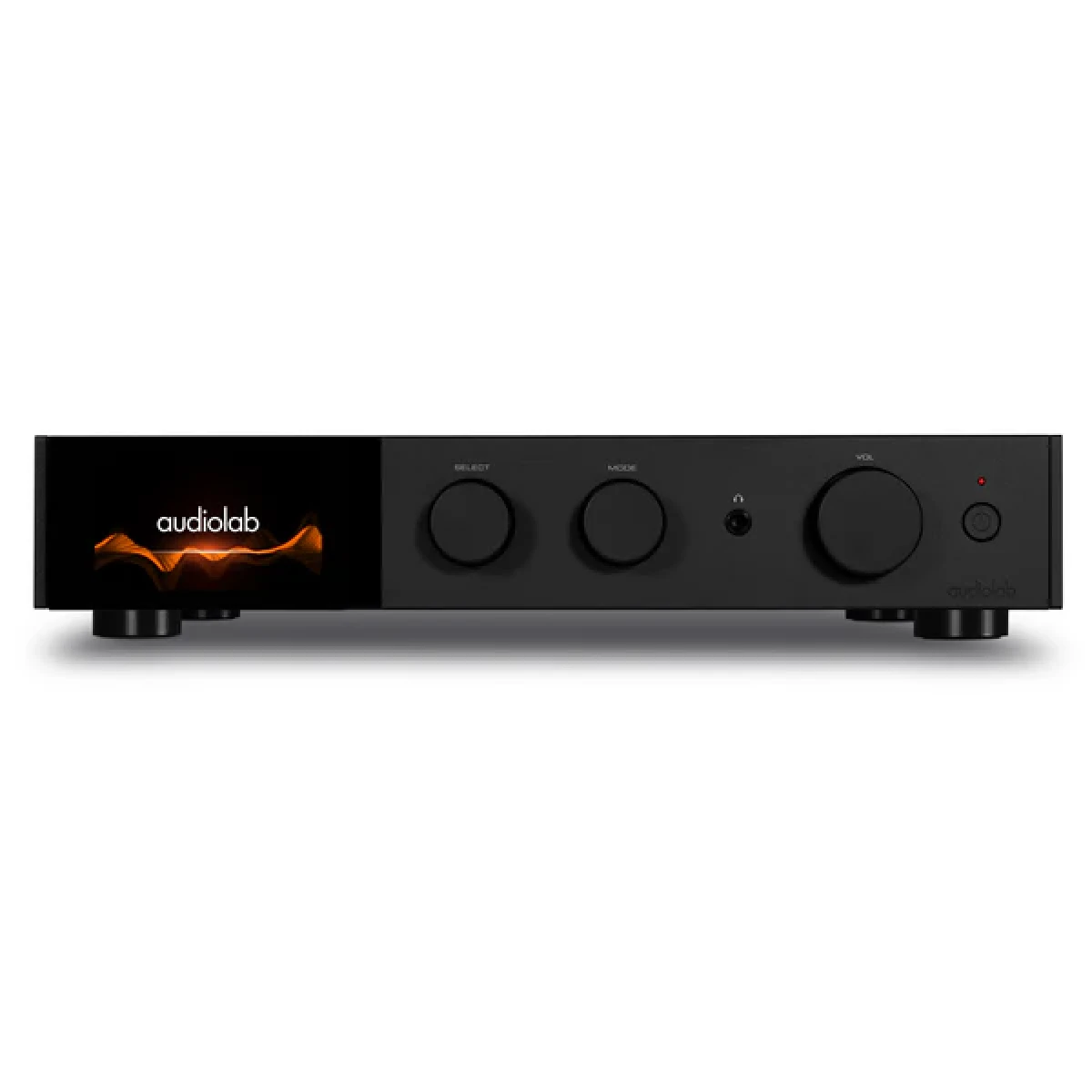

    Audiolab 9000A
