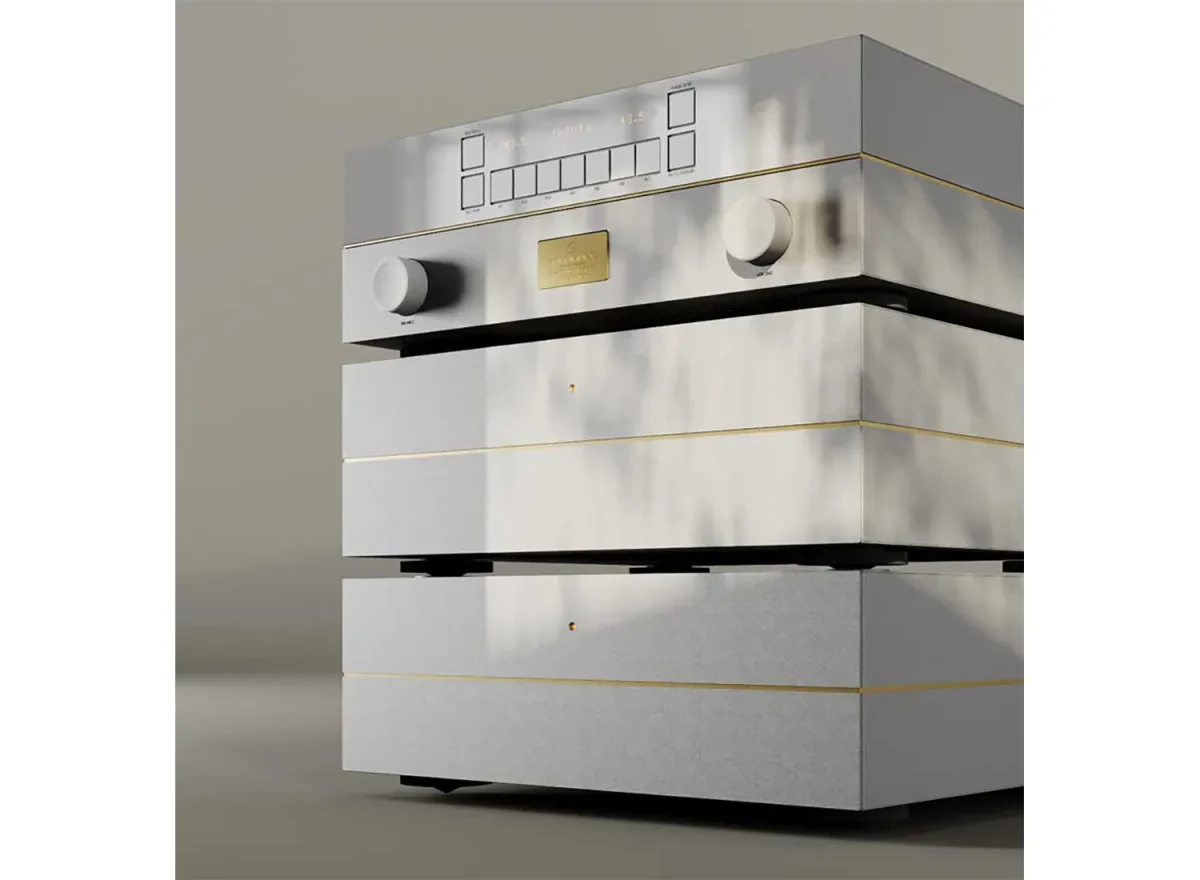

Goldmund Mimesis Reference
Image source - (c) Goldmund

The Mimesis Reference is an analogue preamplifier from Goldmund of Switzerland, housed in two chassis with the power supply in its own enclosure. Since 2023 it follows a new Goldmund design language. Its top panel has a no-screw design, the side panels follow the brand's active loudspeaker range, and the enclosure parts are 12 mm thick. Finishes are Goldmund's classic silver grey or matte black, with a gold ring or a ring matching the case on the top left of the front.

Key specs that matter

Frequency response is ±0 dB from 20 Hz to 20 kHz and ±3 dB from 0.2 Hz to 1.2 MHz, for any level up to 10 V RMS. THD is 0.0002% unbalanced to unbalanced and 0.0001% balanced to balanced, flat with frequency (1 V RMS output, 80 kHz bandwidth, 600 ohm termination), with IMD at the same values. Signal-to-noise ratio on the line input is above 126 dB (0.01 Hz - 10 MHz) and above 136 dB ASA A-weighted. Nominal output level is 1.55 V RMS, maximum output level is 9.6 V RMS balanced and 4.8 V RMS unbalanced, and output impedance is 50 ohms. Nominal input sensitivity is 100 mV, saturation level is 5 V RMS and nominal input impedance is 39 kohms. Slew rate of the amplification stages is 2500 V/us, and propagation delay stays below 300 ns from DC to 200 kHz. The preamplifier measures 44 x 16 x 40.6 cm (W x H x D) and weighs 20 kg, and the power supply measures 44 x 16 x 39 cm and weighs 25 kg.

Engineering and use context

Class A output stage drivers and ultra-low noise active and passive components are used. The power supply was redesigned with separate analogue and digital circuits. Custom audio-grade transformers supply each section, each channel has its own dedicated power supply, and a further separate supply is dedicated to the digital section. An in-house CNC-machined heat sink dissipates the heat of the power supplies. On the audio board a new shielding design also acts as a heat sink, and each low noise op-amp has its own heat sink machined from a single piece of aluminium in direct contact with it.

Seven line inputs each have a separate level adjustment from -12 to +12 dB. Inputs and outputs are on balanced XLR and RCA connectors, the RCA pairs serving tape and line, alongside Link float and an RS232 connector. Signal ground and earth are separated, with an optional connection between them to cancel ground loops. The unit switches to muting if the AC line drops or is interrupted and has automatic protection against tape loops.

Pairing

A power amplifier with balanced XLR inputs uses the full balanced path. Sources with XLR or RCA outputs connect directly. The tape outputs allow a recorder in the loop.

Alternatives

The Mimesis Signature is a digital-analogue preamplifier in Goldmund's Mimesis range.

Specifications

  • Model name

    Mimesis Reference

  • Analog inputs (balanced)

    7

  • Analog inputs (single-ended)

    3

  • Analog outputs (balanced)

    3

  • Analog outputs (single-ended)

    3

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    100

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    50

  • Output impedance (single-ended) (Ω)

    50

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    0.2

  • Frequency response high +/- 3dB (Hz)

    1 200 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    >126

  • Total Harmonic Distortion + Noise (THD+N) (%)

    0.0002

  • Dimensions (mm)

    440 x 160 x 406 (Main) + 440 x 160 x 390 (PSU)

  • Weight (kg)

    20 (Main) + 25 (PSU)
