Phonostages — Parasound ZC ZPhonoXRM

Description, images, technical data and specifications

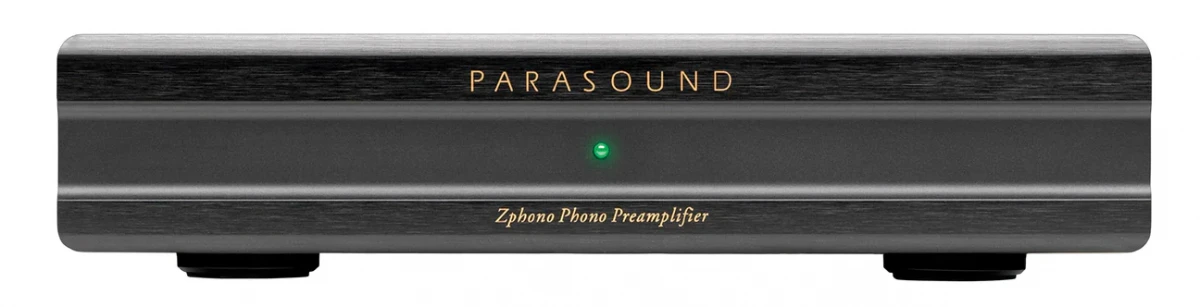

Parasound ZC ZPhonoXRM
Image source — © Parasound

Parasound Zphono XRM is the latest phono corrector. The device is equipped with XLR and RCA outputs, a head-type switch (mono - stereo), as well as a turn-off rumble filter. The MM and MC correction schemes are completely independent.

Specifications

  • Model name

    ZC ZPhonoXRM

  • Inputs (balanced)

    N/A

  • Inputs (single-ended)

    1

  • MC current-sensing input impedance (Ω)

    N/A

  • MM/MC voltage input impedance (Ω)

    47 000 (MM) + 1050 (MC)

  • Output impedance (Ω)

    150 (XLR) + 50 (RCA)

  • Gain (dB)

    94 (MM)

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Total Harmonic Distortion + Noise (%)

    0.02

  • Dimensions (mm)

    220 × 254 × 51

  • Weight (kg)

    1.8

  • Official link

    https://parasound.com/products/zc-zphonoxrm

Parasound ZC ZPhono

More components

  • ZC ZPhono

    Phonostages

    Parasound ZC ZPhono

    The Parasound Z phono phono corrector is compatible with all preamps and integrated amplifiers. On the back panel there is a toggle switch for the MM or MS type heads used, as well as a polarity switch to eliminate buzzing. It has very low distortion and an error of no more than 0.25 Db according to the RIAA standard.
