Phonostages — Schiit Audio MANI
Description, images, technical data and specifications

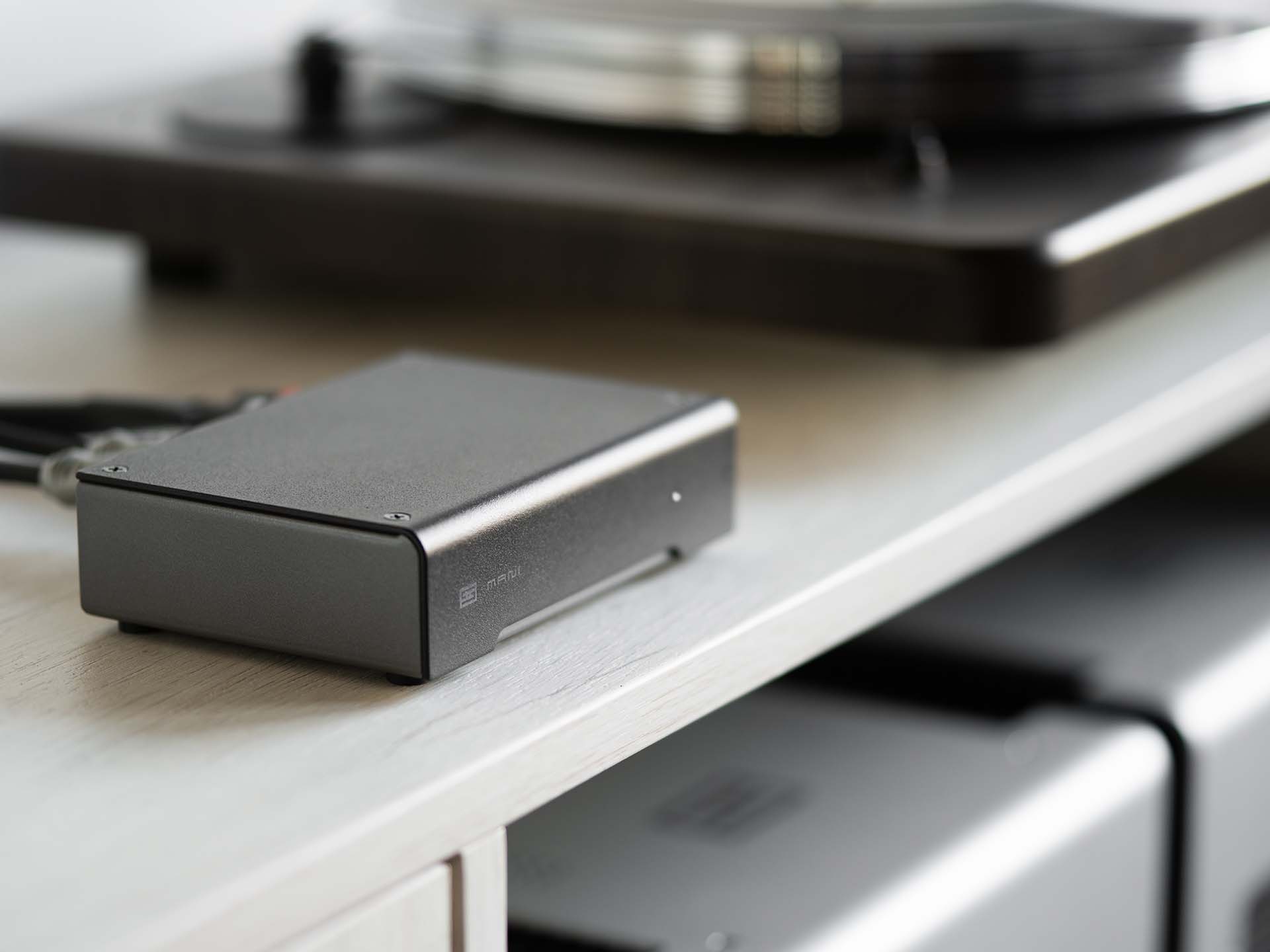

Schiit Audio MANI
Image source — © Schiit Audio
Schiit Mani is a compact phono corrector for vinyl players that supports operation with MM and MC cartridges, equipped with four gain modes, low noise and distortion, as well as accurate RIAA correction; mode switches are located at the bottom of the case.
Specifications
Model name
MANI
Inputs (balanced)
N/A
Inputs (single-ended)
N/A
MC current-sensing input impedance (Ω)
N/A
MM/MC voltage input impedance (Ω)
47 000, 200, 47 or 38
Output impedance (Ω)
75
Gain (dB)
33
Playback EQ curves accuracy (dB)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Total Harmonic Distortion + Noise (%)
<0.0003
Dimensions (mm)
127 x 89 x 32
Weight (kg)
0.45
Official link
