Phonostages — Esoteric Grandioso E1

Description, images, technical data and specifications

Esoteric Grandioso E1
Image source — © Esoteric

Grandioso E1 имеет конфигурацию с двумя шасси, в которой секции питания и управления отделены от основного. Разделив функции, которые являются потенциальными источниками вибрации и шума, от основного шасси, разработчики добились максимально чистового аудиосигнала.

Specifications

  • Model name

    Grandioso E1

  • Inputs (balanced)

    3

  • Inputs (single-ended)

    1

  • MC current-sensing input impedance (Ω)

    N/A

  • MM/MC voltage input impedance (Ω)

    47 000 (MM) + 10, 50, 100, 200, 560 (MC)

  • Output impedance (Ω)

    50 (XLR) + 18 (RCA)

  • Gain (dB)

    MC (currant): 65 dB (XLR output) / 59 dB (RCA output), MC (voltage): 72 dB (XLR output) / 66 dB (RCA output), MM (voltage): 46 dB (XLR output) / 40 dB (RCA output)

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Total Harmonic Distortion + Noise (%)

    0.008 (MM)

  • Dimensions (mm)

    445 × 131 × 445 + 445 × 131 × 451 (Power)

  • Weight (kg)

    20.7 + 23.4 (Power)

  • Official link

    https://www.esoteric.jp/en/product/e1/top

Esoteric E-02

More components

  • E-02

    Phonostages

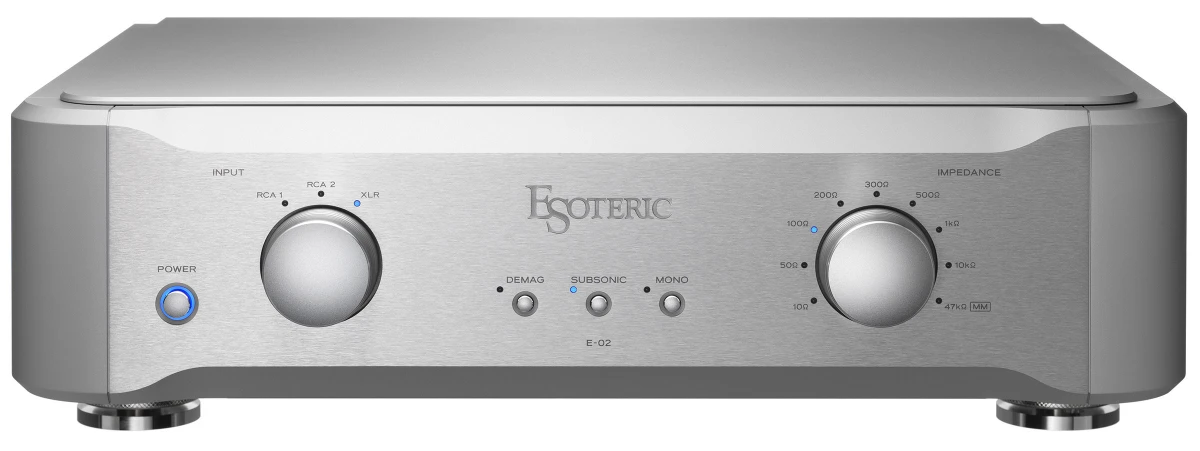

    Esoteric E-02
