Phonostages — Soulution Audio 755
Description, images, technical data and specifications
Soulution Audio 755
Image source — © Soulution Audio
Specifications
Model name
755
Inputs (balanced)
N/A
Inputs (single-ended)
3
MC current-sensing input impedance (Ω)
N/A
MM/MC voltage input impedance (Ω)
10 - 100 (MC), 47 - 47 000 (MM)
Output impedance (Ω)
2
Gain (dB)
78 (MC), 66 (MM)
Playback EQ curves accuracy (dB)
N/A
Frequency response low +/- 3dB (Hz)
0
Frequency response high +/- 3dB (Hz)
1 000 000
Total Harmonic Distortion + Noise (%)
< 0,002
Dimensions (mm)
480 × 167 × 450
Weight (kg)
30
Official link
More components
Phonostages

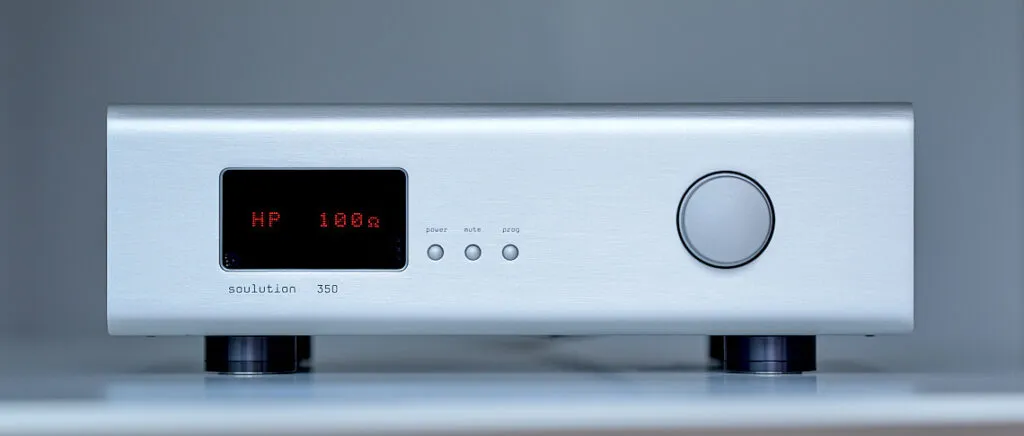

Soulution Audio 350 phono stage
On the back panel, users will find one unbalanced RCA input, one balanced XLR output, one balanced RCA output. Like other Series 3 devices, the phono corrector is made in silver color. All controls and an information display are located on the front panel.
Phonostages

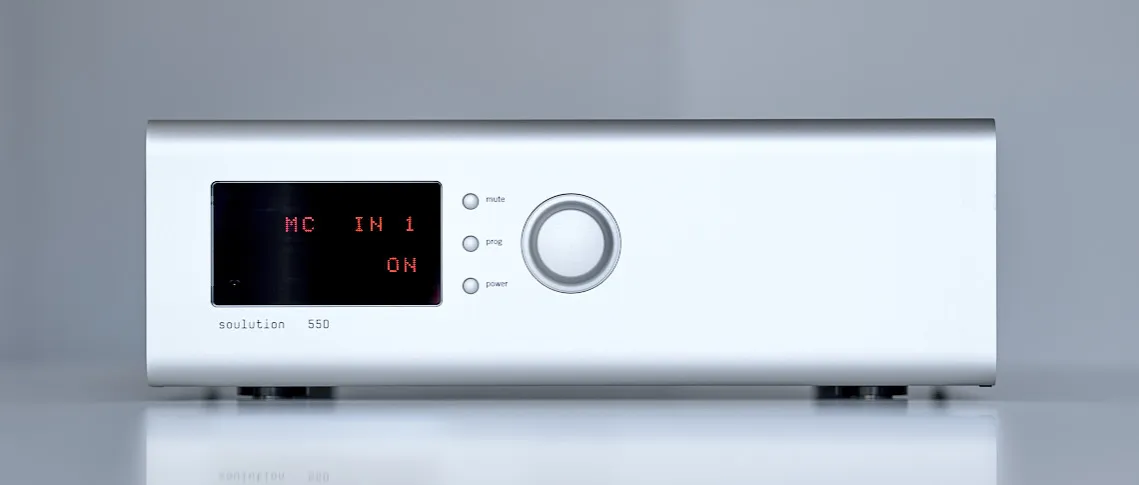

Soulution Audio 550 phono
The Soulution 550 Phono phono corrector has an asymmetrical design with two mono and separate power supplies for the left and right channels, which guarantees minimal possible crosstalk in the channel. Both 550 inputs can be configured to move cartridges with magnets or coils, while the load resistance is selected using the front panel or remote control for each input individually.
Phonostages

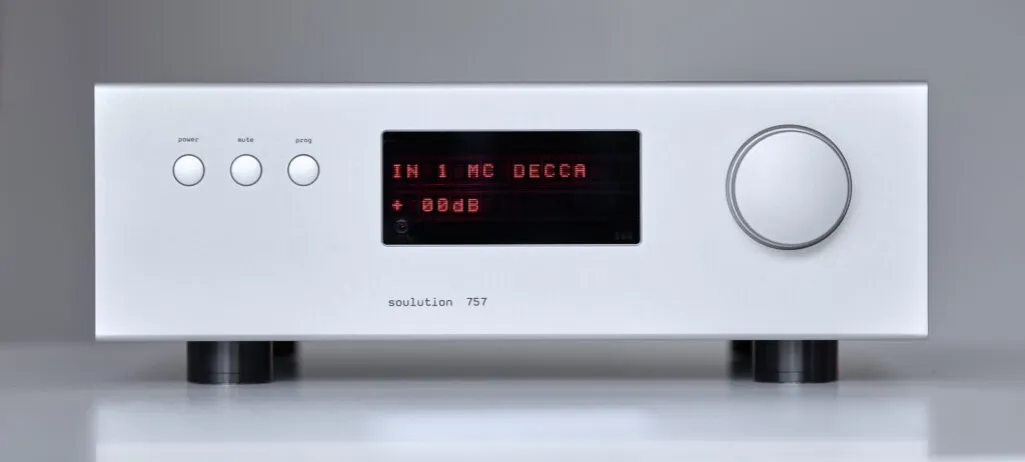

Soulution Audio 757 deemphasis
Soulution Audio 757 Deemphasis is a reference preamp for vinyl and tape with a unique correction system (deemphasis) that supports a wide range of equalization curves: for vinyl - RIAA, DECCA, COLUMBIA, LONDON, TELDEC, NARTB; for tape - IEC2-30ips, IEC1-15ips, IEC1-7.5ips, NAB-15ips.
