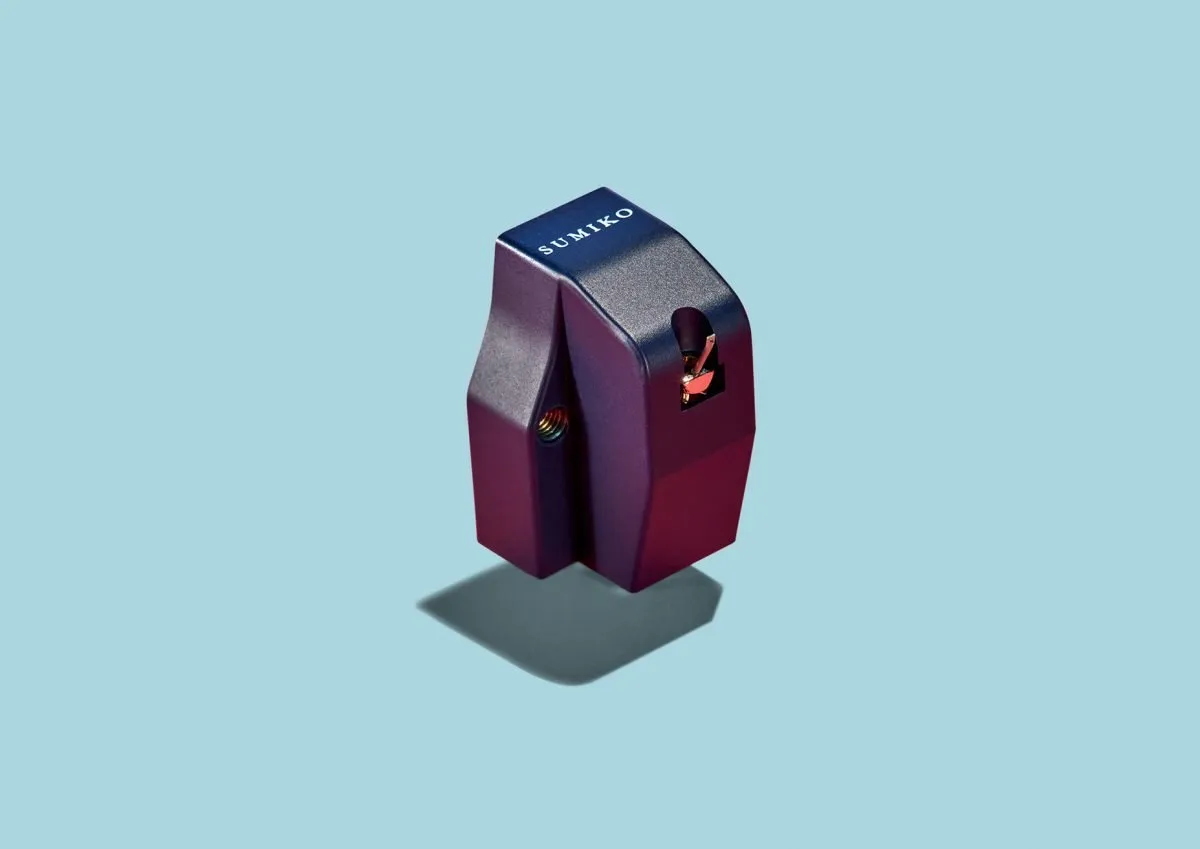

Sumiko Oriole
Image source — © Sumiko
The cartridge is equipped with a diamond stylus Shibata (6.5 x 40 µm), and the cantilever is made of aluminum. The output is 0.3 V, and the coil's internal impedance is 5.5 ohms. The manufacturer recommends selecting a load above 55 ohms. The coils are wound with high-purity copper wire, and the compliance at 100 Hz is 12 x 10-6 cm/dyne. The cartridge weighs 7.3 grams.
Specifications
Model name
Oriole
Type
MC
Stylus
diamond Nude Shibata (6.5 x 40µm)
Body
N/A
Cantilever
aluminium 0.5mm Reinforced Aluminum Pipe
Coils
High-Purity Copper
Output voltage (mV@5cm/sec)
0.3
Frequency response low +/- 3dB (Hz)
12
Frequency response high +/- 3dB (Hz)
45000
Internal impedance (Ohm)
5.5
Channel separation (dB / 1,000 Hz)
30
Compliance (×10-6cm/dyne at 100Hz)
12
Recommended load (Ohm)
55
Recommended tonearms
Medium
Weight (g)
7.3
