Streamers — Naim ND 555

Description, images, technical data and specifications

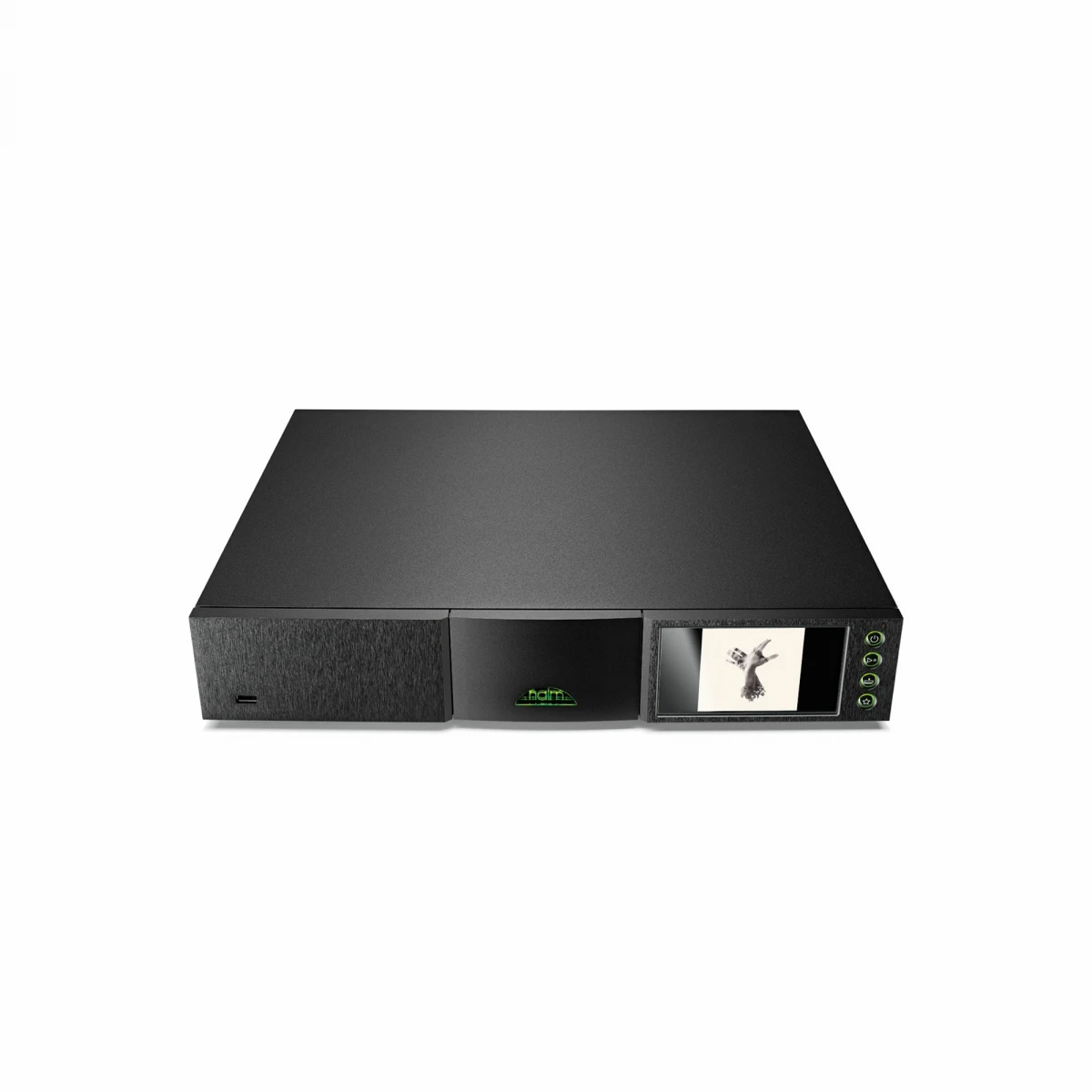

Naim ND 555
Image source - (c) Naim

The ND 555 is the reference network player from Naim, launched in 2018 at the top of the company's streaming range, above the NDX 2 and ND5 XS 2 and alongside the NSS 333. It has no internal power supply and runs from the external NAPS 555 DR.

Key specs that matter

A 40-bit SHARC processor oversamples the data for 40-bit accuracy before a Burr-Brown R2R ladder DAC. Supported formats are WAV up to 32-bit/384 kHz, FLAC, AIFF and ALAC up to 24-bit/384 kHz, DSD64 and DSD128, and MP3, AAC, OGG, WMA and M4A up to 48 kHz, with gapless playback on all formats. Analogue outputs are one RCA pair and one 5-pin DIN socket, and a BNC S/PDIF digital output carries up to 24-bit/192 kHz. Digital inputs are two optical TOSLink (24-bit/96 kHz), one coaxial RCA and one coaxial BNC (24-bit/192 kHz, DoP 64Fs), plus two USB Type A sockets, front and rear. Network connection is Ethernet (10/100 Mbps) or Wi-Fi (802.11 b/g/n/ac) with external antennae. It measures 87 x 432 x 314 mm (H x W x D) and weighs 12.25 kg.

Engineering and use context

Naim's streaming board lets the DAC clock control the flow of audio data. Its digital audio circuits use Low Voltage Differential Signalling (LVDS), which Naim specifies for minimising timing errors and radiation. Analogue stages sit on a suspended brass sub-chassis with a tuned suspension that isolates the sound-critical circuits from vibration and minimises microphony. Naim's DR regulator technology supplies DC voltage to the audio circuitry. All formats play up to 384 kHz over the wireless network.

Streaming covers Chromecast built-in, AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz, Apple Music, internet radio, Roon Ready, UPnP and Bluetooth aptX HD. Control is through the Focal & Naim app for iOS and Android, which also installs wireless updates, or the remote control, and a large full-colour display sits on the front panel. Power consumption is 15 W.

Pairing

Naim names its Statement and 500 series amplification as partners for the ND 555, connected through the DIN output. The NAPS 555 DR power supply is required. Any amplifier with an RCA line input or a DAC with a BNC S/PDIF input also connects.

Alternatives

The Naim NDX 2 is the next network player down in the range, with a built-in power supply.

Specifications

  • Model name

    ND 555

  • Has internal DAC

    Yes

  • DSD compatability

    Yes

  • Parameters

    up to 32bits/384kHz and DSD128

  • DSP processing

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    1

  • Gain (dBu)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Analog outputs level (balanced) (V)

    N/A

  • Analog outputs level (single-ended) (V)

    N/A

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    N/A

  • Dimensions (mm)

    N/A

  • Weight (kg)

    N/A

  • Official link
