DACs — Eversolo DAC-Z10
Description, images, technical data and specifications
Eversolo DAC-Z10
Image source — © Eversolo
The Eversolo DAC-Z10 uses DAC chips from the Japanese company Asahi Kasei, whereas early models of the brand used chips from ESS Sabre Technologies. The company calls its new topology Fully Isolated Architecture (FIA), a design with physical separation of digital and analog parts to minimize interference and maintain signal purity.
Specifications
Model name
DAC-Z10
Conversion type
N/A
Engine
DCP8568
DSD compatability
Yes
Parameters
up to DSD512 and PCM 768kHz / 32Bit
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Gain (dBu)
N/A
Output Level (balanced) (V)
5
Output Level (single-ended) (V)
2.5
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
N/A
Output Impedance (single-ended) (Ω)
N/A
Analog outputs
N/A
Signal to Noise Ratio (dB)
130 (XLR), 128 (RCA)
Total Harmonic Distortion + Noise (% at 22 kHz)
0.00008 (XLR), 0.000097 (RCA)
Dimensions (mm)
365 × 310 × 88
Weight (kg)
N/A
Official link
More components
DACs

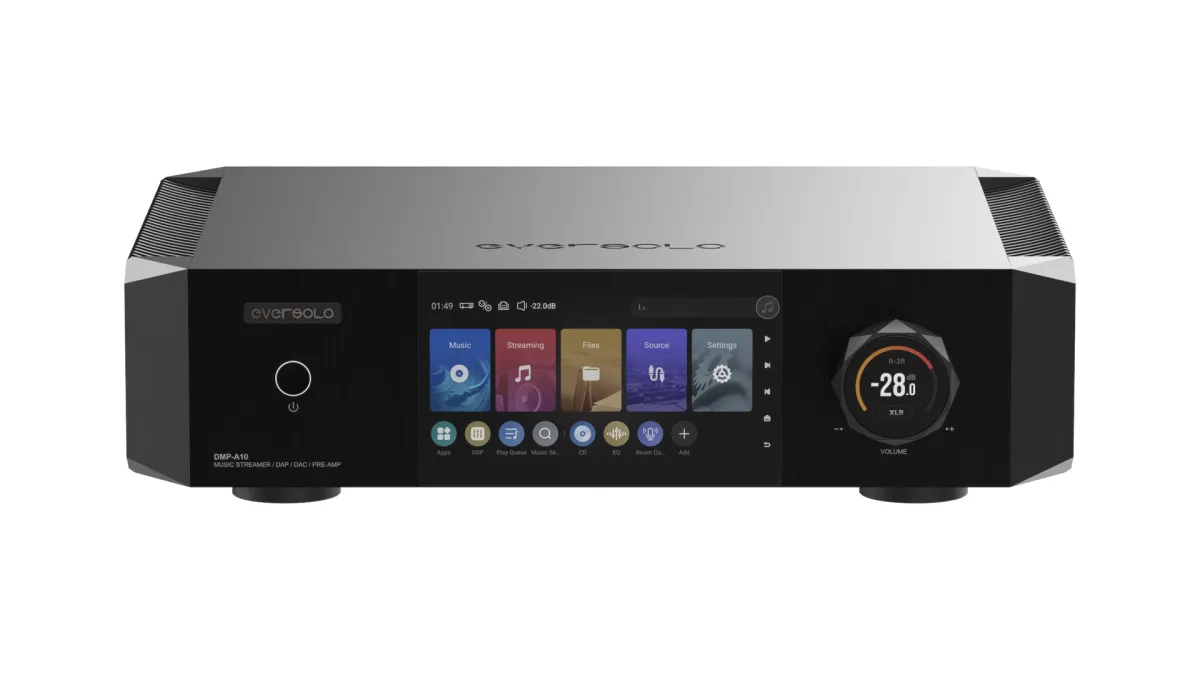

Eversolo DMP-A10
