DACs — Nuprime Audio DAC-8
Description, images, technical data and specifications

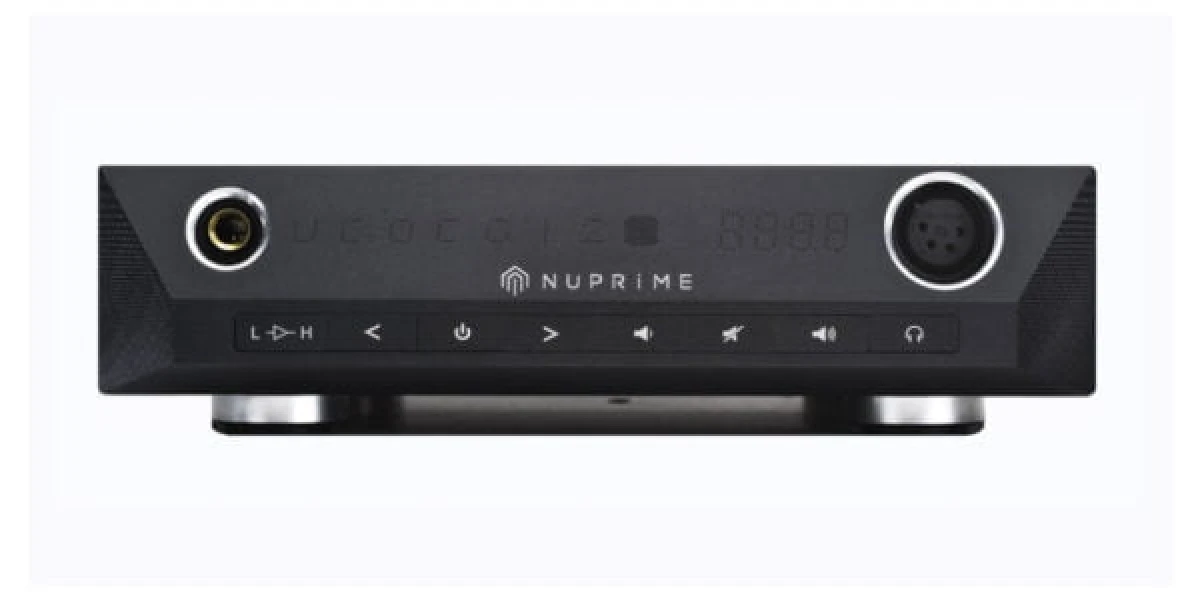

Nuprime Audio DAC-8
Image source — © Nuprime Audio
The Prime DOC-8 is based on a proprietary SIS chip and is capable of processing digital PCM streams with a resolution up to 32 bits/384 kHz and DSD up to DSD256. The analog output on two high–quality gold-plated RCA connectors is adjustable - the digital volume control has 99 steps of 0.5 dB each.
Specifications
Model name
DAC-8
Conversion type
N/A
Engine
N/A
DSD compatability
Yes
Parameters
up to 384KHz/24Bit and Native DSD 256
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Gain (dBu)
N/A
Output Level (balanced) (V)
2
Output Level (single-ended) (V)
N/A
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
N/A
Output Impedance (single-ended) (Ω)
N/A
Analog outputs
N/A
Signal to Noise Ratio (dB)
110
Total Harmonic Distortion + Noise (% at 22 kHz)
0.005
Dimensions (mm)
55 x 235 x 281
Weight (kg)
2
