Soulnote D-3
Image source — © Soulnote

Digital-to-analog converter Soulnote D-3. A perfect digital-to-analog converter with zero asynchronous circuits. Connecting a network transport equipped with ZERO LINK creates a network system that is fully synchronized with the clock frequency of the DAC, which allows for significant improvements in sound quality by eliminating asynchronous circuits. The input signal from the ZEROLINK terminals passes through a selector consisting of a mechanical relay that does not add jitter and is connected directly to the DAC chip using a unique circuit for ZERO LINK.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    D-3

  • Conversion type

    N/A

  • Engine

    ES9038PRO

  • DSD compatability

    Yes

  • Parameters

    up to 32 bit / 768 kHz and DSD512

  • Frequency response low +/- 3dB (Hz)

    2

  • Frequency response high +/- 3dB (Hz)

    120 000

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    N/A

  • Output Level (single-ended) (V)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Analog outputs

    N/A

  • Signal to Noise Ratio (dB)

    110

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    0.008

  • Dimensions (mm)

    454 × 174 × 407

  • Weight (kg)

    28

  • Official link

    https://www.soulnote.co.jp/us_detail_d3.html

Soulnote D-2

More components

  • D-2

    DACs

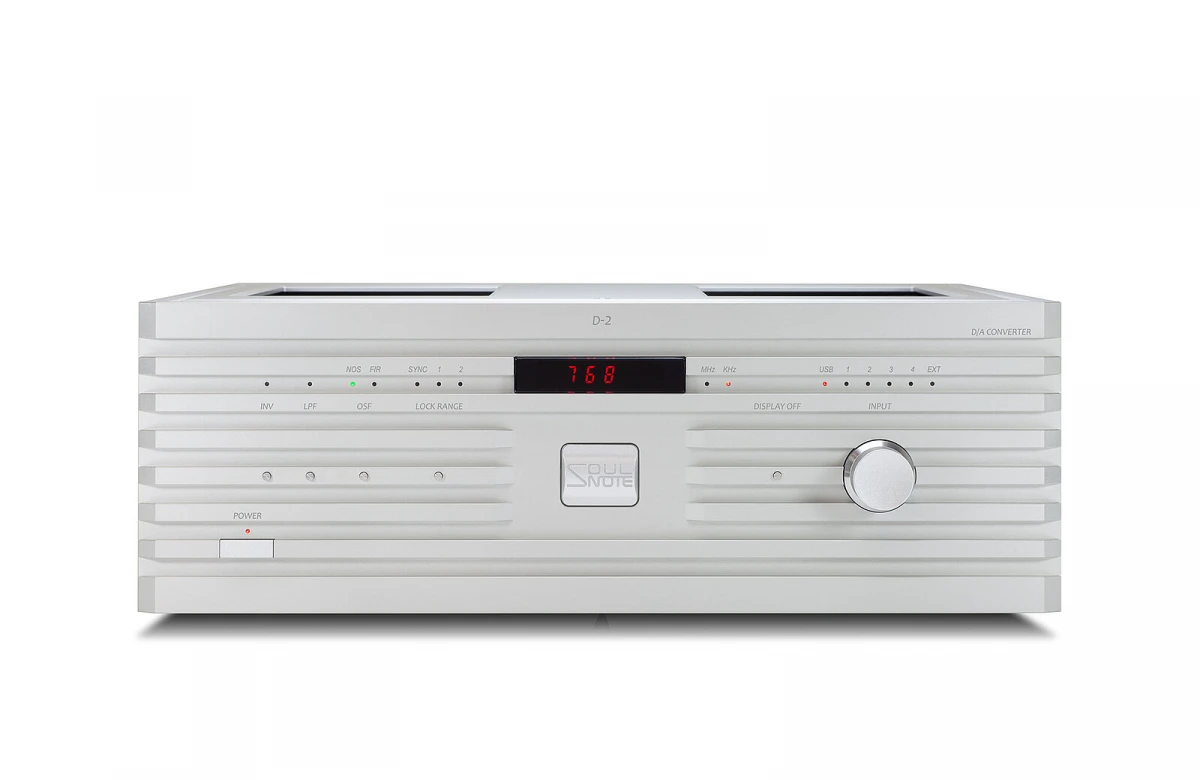

    Soulnote D-2

    The Soulnote D-2 digital-to-analog converter uses the LMX2594 ultra-low jitter function with external clock generator inputs.A perfectly symmetrical digital-to-analog converter without NFB, using a total of four ES9038PRO circuits without excessive oversampling.

  • D-1N

    DACs

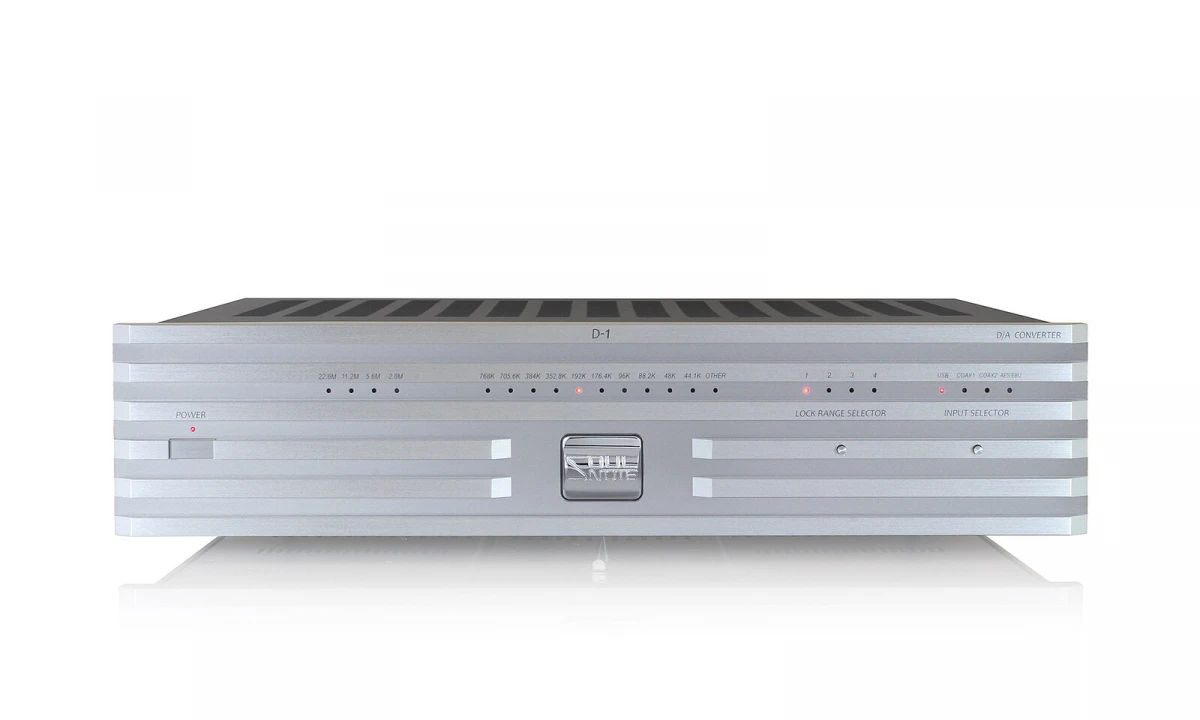

    Soulnote D-1N
