CD / SACD players and transports — YBA GENESIS CD4

Description, images, technical data and specifications

YBA GENESIS CD4
Image source — © YBA

Developed on the basis of the CD430 player from the Passion series, this player uses the Sanyo HD850 CD top-loading transport with the patented Blue Diode. The ABAC Genesis CD4 has balanced and RCA analog outputs, and it can also be used as a transport, with a coaxial digital output. It is possible to turn off the power to the digital output.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
GENESIS CD4
Transport
Yes
Player
Yes
SACD support
N/A
Engine
N/A
Frequency response low +/- 3dB (for CD) (Hz)
20
Frequency response high +/- 3dB (for CD) (Hz)
20 000
Frequency response low +/- 3dB (for SACD) (Hz)
N/A
Frequency response high +/- 3dB (for SACD) (Hz)
N/A
Gain (dBu)
N/A
Output Level (balanced) (V)
2.2
Output Level (single-ended) (V)
4.4
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
N/A
Output Impedance (single-ended) (Ω)
N/A
Dynamic range (for CD) (dB)
N/A
Dynamic range (for SACD) (dB)
N/A
Signal to Noise Ratio (for CD) (dB)
110
Signal to Noise Ratio (for SACD) (dB)
N/A
Total Harmonic Distortion + Noise (for CD) (%)
0.0015% (16bit), 0.0008% (24bit)
Total Harmonic Distortion + Noise (for SACD) (%)
N/A
Dimensions (mm)
430 x 388 x 115
Weight (kg)
11
Official link
https://www.ybahifi.com/product/genesis-cd4-cd-player/

YBA HERITAGE CD200

YBA PASSION CD430

More components

CD / SACD players and transports

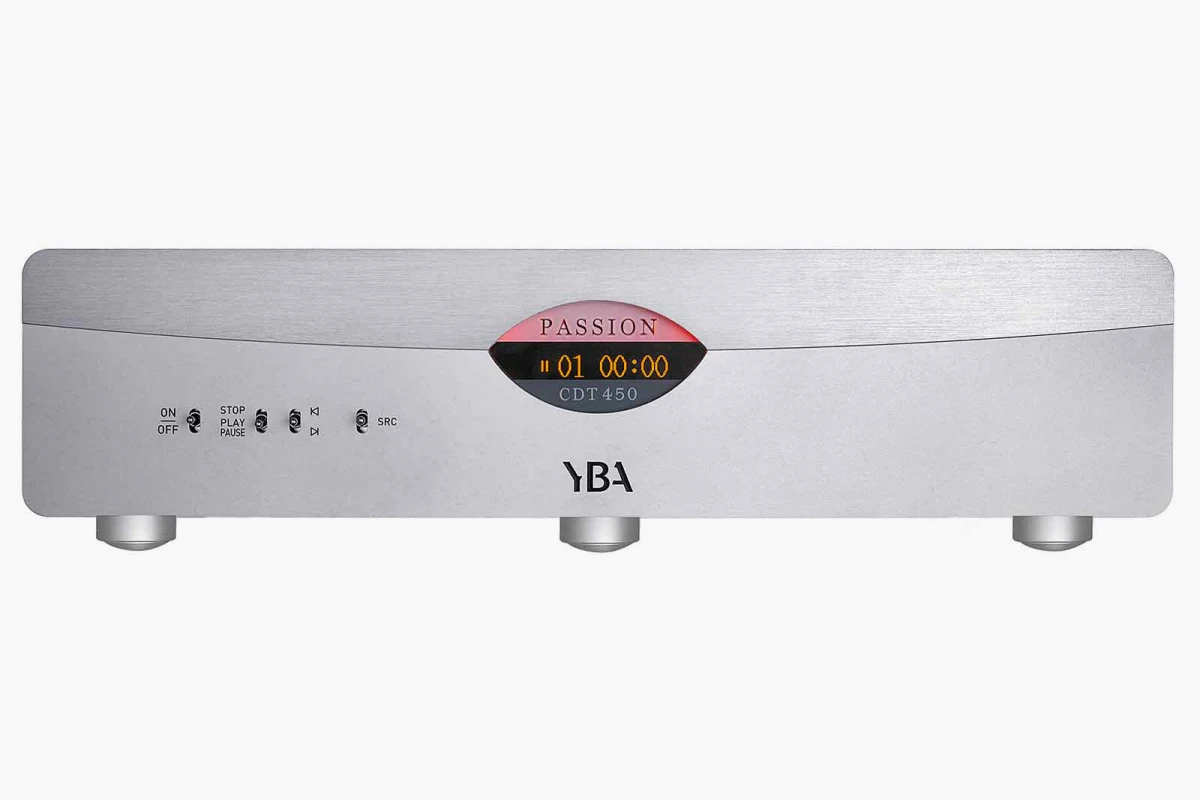

YBA PASSION CDT450
The Passion CDT450 is an easy-to-use top-loading player. The transport mechanism uses a high-quality Philips CD PRO mlm with a patented Blue Diode system. The CD is loaded through a sliding door, which must remain partially open during playback to minimize vibration due to the movement of the airflow from the rotation of the disc.
CD / SACD players and transports
YBA Passion CD430 MKII
The MKII version also received significantly upgraded digital inputs for any situation where you want to use it as a standalone DAC. In addition to the standard S/PDIF optical input, it also features a high-performance XMOS USB input for high-quality audio when directly connected to a computer.
CD / SACD players and transports

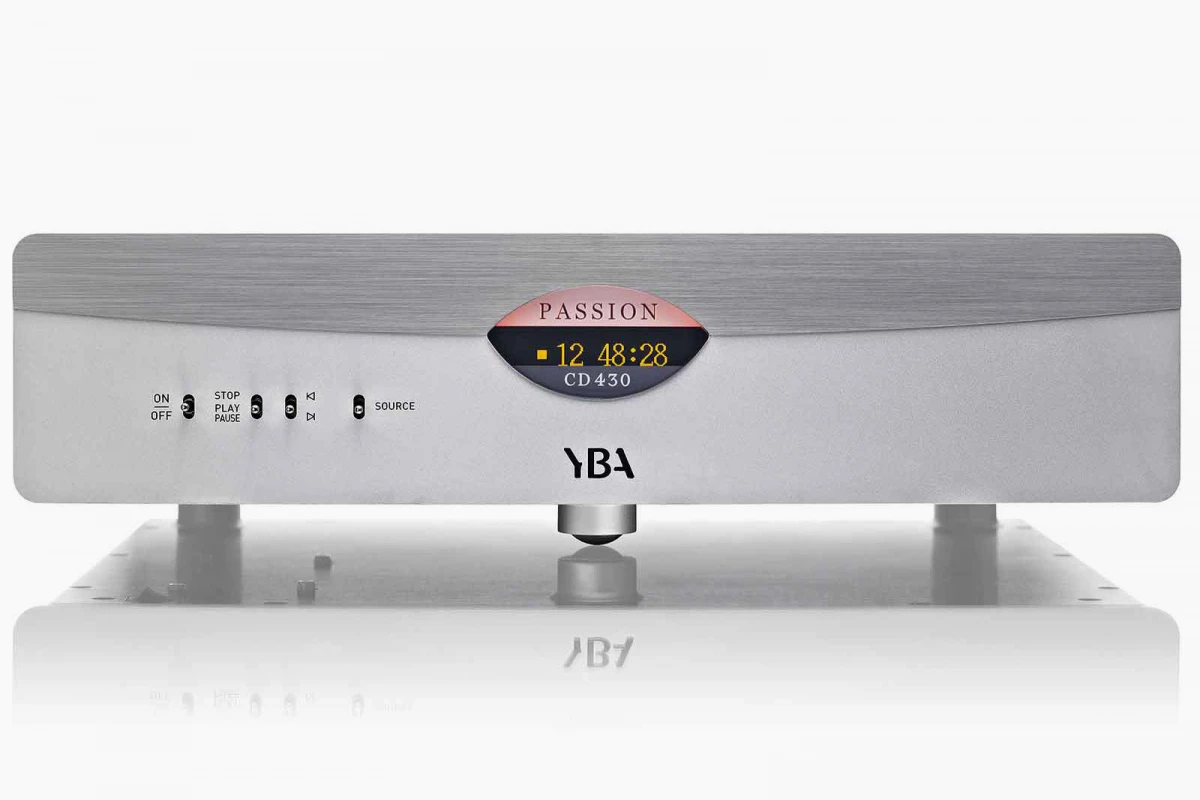

YBA PASSION CD430
The CD430 has always been a very important part of our Passion line, so we had to pay special attention to it when upgrading to the MKII version. The transition from the discontinued Philips CD PRO mechanics to the Philips CDM4 and the upgrade of the DAC section to a pair of AD1955 analog devices ensured that the original sound quality was preserved and makes it look forward to the future.
CD / SACD players and transports

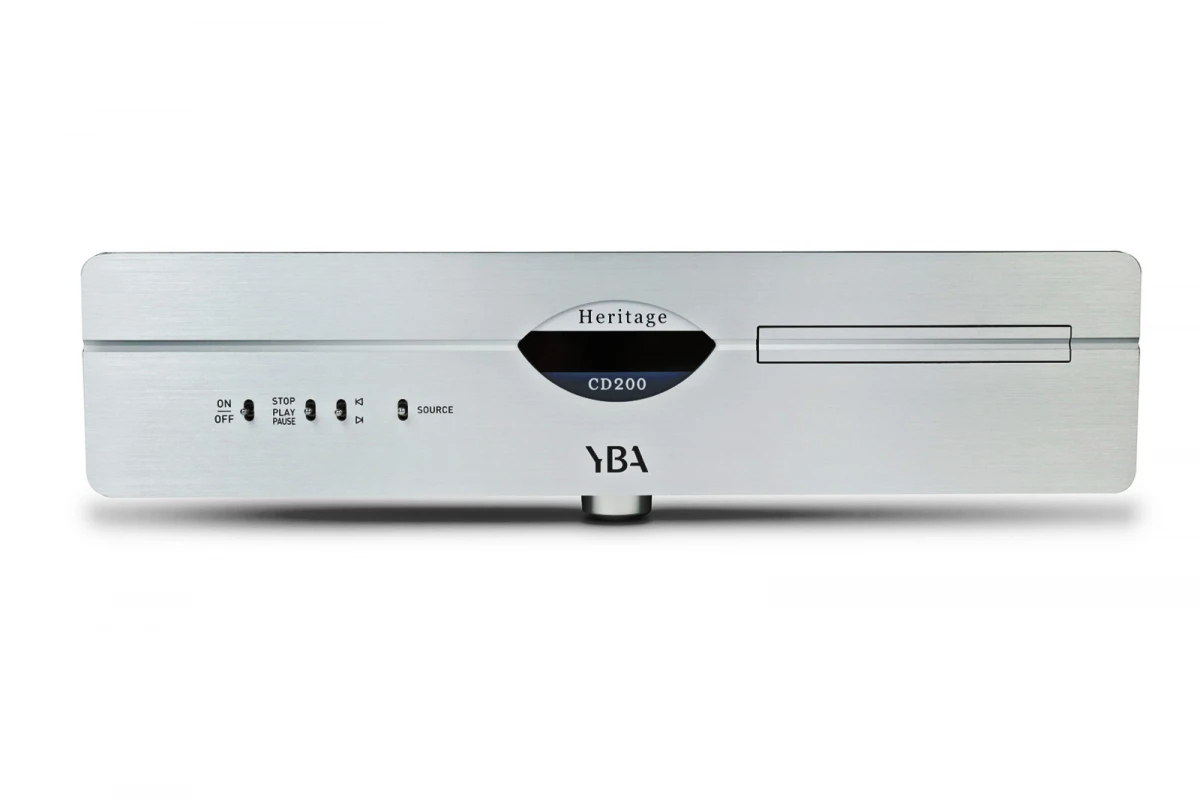

YBA HERITAGE CD200
The CD200 is an updated version of the popular CD player with a new DAC section and upgraded digital inputs. It serves as an excellent CD player and an excellent standalone DAC in your Hi-Fi system or with your computer.
CD / SACD players and transports

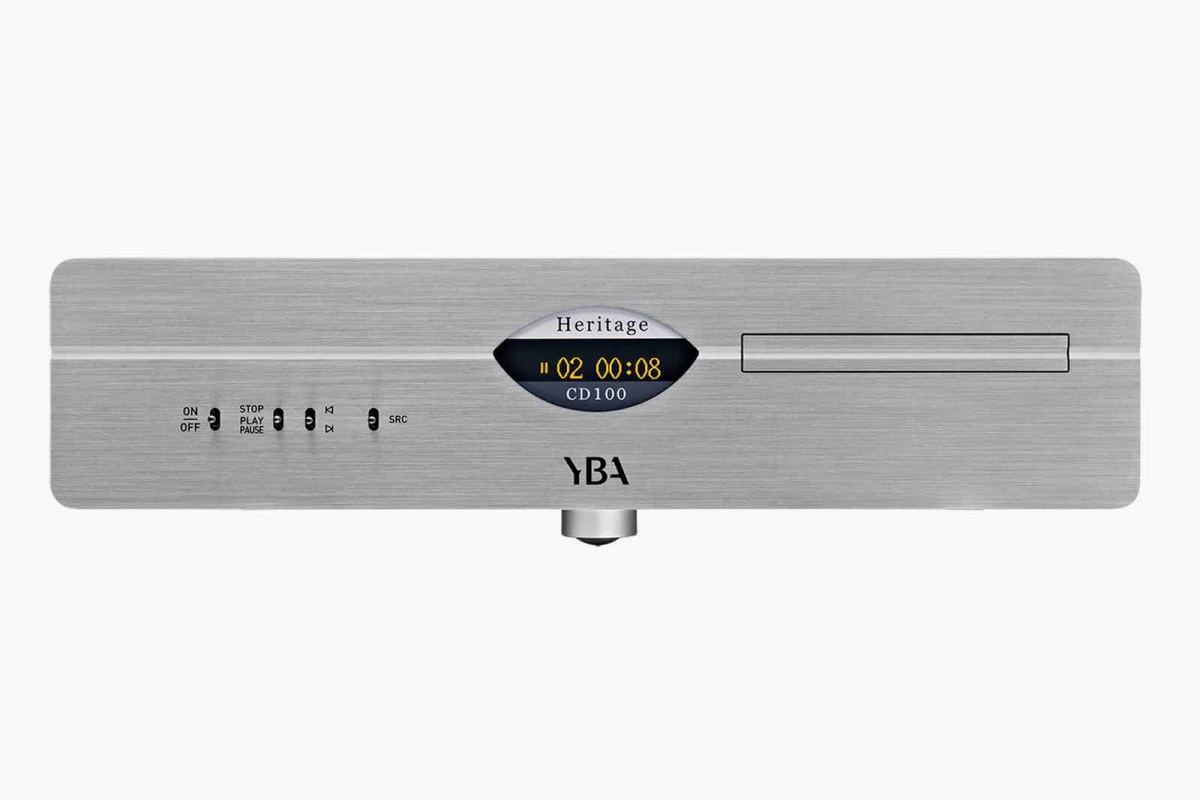

YBA HERITAGE CD100
