CD / SACD players and transports — T+A 3100 HV Gen 3

Description, images, technical data and specifications

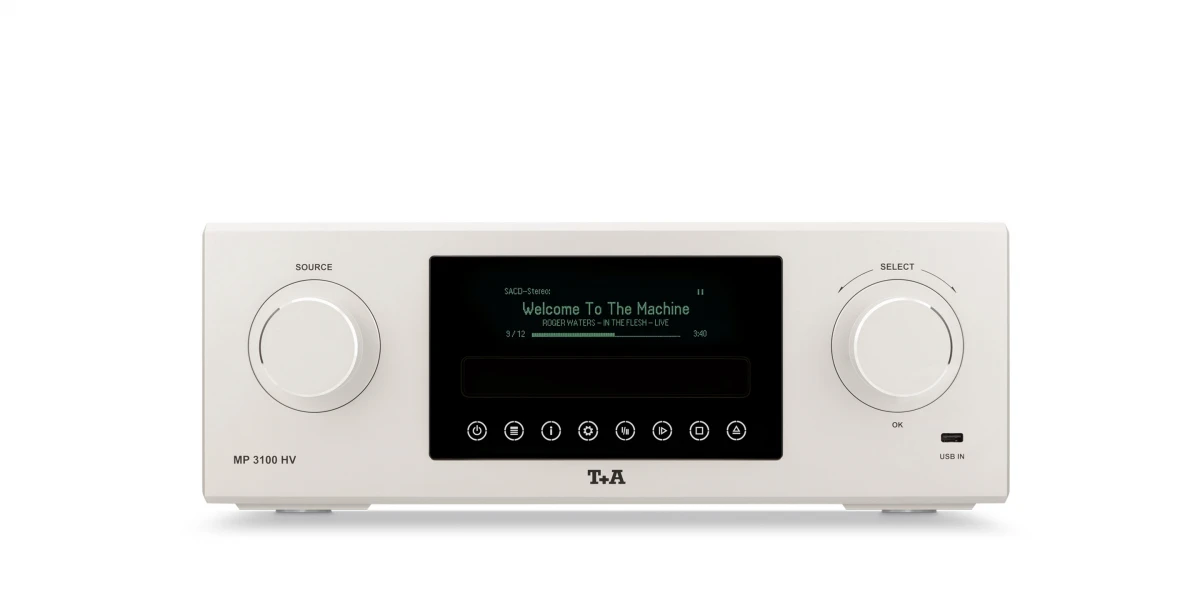

T+A 3100 HV Gen 3
Image source — © T+A

he new T+A MP 3100 HV Gen 3 player is based on the proprietary audiophile streaming platform ASA Gen 3, which provides access to many streaming services, including Tidal Connect, Spotify Connect or Apple AirPlay2. In addition, the platform supports high-resolution audio streaming in DSD format without conversion to PCM. The signal processing has been significantly improved via a new motherboard. CD-Text support has been added too - now you can get additional information, such as album covers, directly in the MusicNavigator G3 application using the Gracenote music service. The DAC unit of the T + A MP 3100 HV Gen 3 player is based on True1-Bit DSD and Quadrupel PCM chips.

Specifications

  • Model name

    3100 HV Gen 3

  • Transport

    Yes

  • Player

    Yes

  • SACD support

    N/A

  • Engine

    N/A

  • Frequency response low +/- 3dB (for CD) (Hz)

    2

  • Frequency response high +/- 3dB (for CD) (Hz)

    20000

  • Frequency response low +/- 3dB (for SACD) (Hz)

    2

  • Frequency response high +/- 3dB (for SACD) (Hz)

    44000

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    N/A

  • Output Level (single-ended) (V)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Dynamic range (for CD) (dB)

    N/A

  • Dynamic range (for SACD) (dB)

    N/A

  • Signal to Noise Ratio (for CD) (dB)

    N/A

  • Signal to Noise Ratio (for SACD) (dB)

    116

  • Total Harmonic Distortion + Noise (for CD) (%)

    N/A

  • Total Harmonic Distortion + Noise (for SACD) (%)

    0.001

  • Dimensions (mm)

    170 x 460 x 460

  • Weight (kg)

    26

  • Official link

    https://www.ta-hifi.de/en/audiosystems/hv-series/mp-3100-hv-g3-multi-source-sacd-player/
