Headphones — Stax SR-X9000

Description, images, technical data and specifications

Stax SR-X9000
Image source — © Stax

The headphones are equipped with a four-layer MLER-3 electrode, and the diaphragm is made of ultra-thin plastic film. Due to the emitter mass close to zero, an ideal frequency response is guaranteed.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    SR-X9000

  • Transducer principle

    Electostatic or Planar magnetic

  • Scheme

    Open

  • Wearing style

    Over-ear

  • Frequency response low +/- 10dB (Hz)

    5

  • Frequency response high +/- 10dB (Hz)

    42000

  • Max. sound pressure level (dBSPL (1 kHz @ 5% THD))

    N/A

  • Connection type

    Wired

  • Connector (mm)

    N/A

  • Sensitivity (dBSPL (1 kHz/ 1 mW)))

    100

  • Impedance (Ohm (1 kHz))

    145000

  • Playback time (hours)

    N/A

  • Weight (g)

    432

  • Official link

Related content

More components

  • SR-007S

    Headphones

    Stax SR-007S

    Originally introduced as the SR-007 and later updated to the SR-007A, this third-generation model retains the signature round earcup body and open-back design, but includes significant upgrades, many of which are inspired by STAX’s current flagship, the SR-X9000. At the heart of the STAX SR-007S are redesigned internal components, including a new diaphragm and fixed electrode structure. STAX engineers have reduced the diameter of the vents by 20% compared to previous generations using a precision etching process. This change optimizes airflow and improves acoustic output, delivering greater clarity and resolution without sacrificing the signature warm, rich sound of the 007 series.

  • SR-003MK2

    Headphones

    Stax SR-003MK2

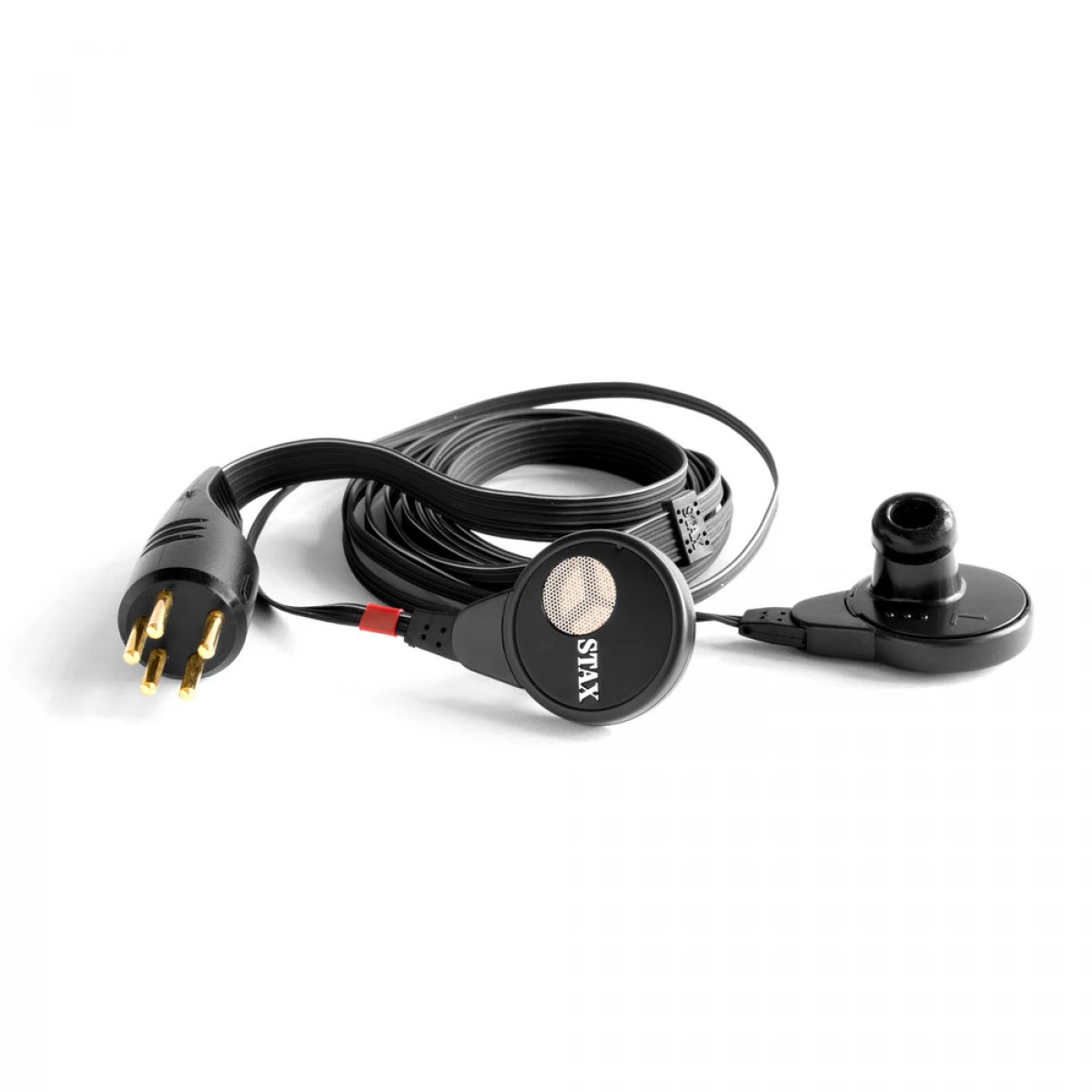

    The SR-003MK2 is a portable in-ear earphone with a 5-pin PRO connector that can be used when connected to a headphone amplifier with a 5-pin PRO output connector. The redesigned SR-003 ear canal type structure allows you to enjoy excellent electrostatic sound quality without covering your ears. The SR-003MK2 is connected to devices or with a STAX adapter equipped with a 5-pin PRO bias output.
