Headphones amplifiers — Lehmann Audio StudioCube
Description, images, technical data and specifications
Lehmann Audio StudioCube
Image source — © Lehmann Audio
Specifications
Model name
StudioCube
Maximum Power, 32 Ohms (mW RMS per channel)
200 (33 Ohms)
Maximum Power, 50 Ohms (mW RMS per channel)
N/A
Maximum Power, 300 Ohms (mW RMS per channel)
N/A
Maximum Power, 600 Ohms (mW RMS per channel)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
40 000
Gain (dBu)
6 / 12
THD (% at 1V RMS, 300 ohms)
< 0.02
Signal to Noise Ratio (dB)
90
IMD (%, CCIR, 300 Ohms)
N/A
Crosstalk (dB, 20Hz-20KHz, 300 Ohms)
N/A
Output Impedance (Ohms)
5
Dimensions (mm)
130 x 132 x 45
Weight (kg)
0.88
Official link
More components
Headphones amplifiers
Lehmann Audio Linear II Pro
The Lehmann Linear II Pro is a professional studio headphone amplifier with a power of 400 MW (60 ohms), a frequency range of 10 Hz–35 kHz, a signal-to-noise ratio of >95 dB, low distortion (<0.001%) and dual Neutrik output. Ideal for precise monitoring with high channel separation (>70 dB) and adjustable gain. Made in Class A with a discrete output stage and a new ESS Sabre DAC for clear, transparent sound.
Headphones amplifiers

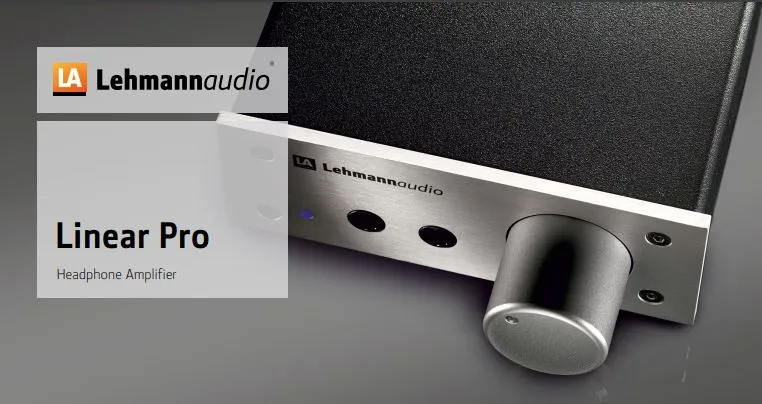

Lehmann Audio Linear Pro
The Lehmann Linear Pro is a professional headphone amplifier with a power of up to 400 MW (60 ohms), a frequency range of 10 Hz–35 kHz, minimal distortion and switchable gain.
Headphones amplifiers

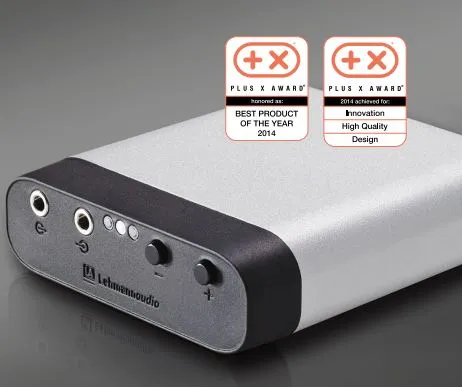

Lehmann Audio Traveller
