Headphones amplifiers — Trafomatic Audio Head 2
Description, images, technical data and specifications
Trafomatic Audio Head 2
Image source — © Trafomatic Audio
In the Trafomatic Audio headphone amplifier line, the Head Two amplifier is the second model, following the highly successful Experience Head One model. The amplifier circuit is 100% tube-type, push-pull in class A. The feedback depth is 3 dB, and the output power is 2 watts at a load of 50 ohms. The power supply is made with a large margin and provides excellent low-frequency transmission, thanks to multi-link smoothing filters.
Specifications
Model name
Head 2
Maximum Power, 32 Ohms (mW RMS per channel)
N/A
Maximum Power, 50 Ohms (mW RMS per channel)
2
Maximum Power, 300 Ohms (mW RMS per channel)
N/A
Maximum Power, 600 Ohms (mW RMS per channel)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
80 000
Gain (dBu)
26
THD (% at 1V RMS, 300 ohms)
0.2
Signal to Noise Ratio (dB)
88
IMD (%, CCIR, 300 Ohms)
N/A
Crosstalk (dB, 20Hz-20KHz, 300 Ohms)
N/A
Output Impedance (Ohms)
25 – 50 -100 – 300 and 600
Dimensions (mm)
400 x 310 x 100
Weight (kg)
10
Official link
More components
Headphones amplifiers

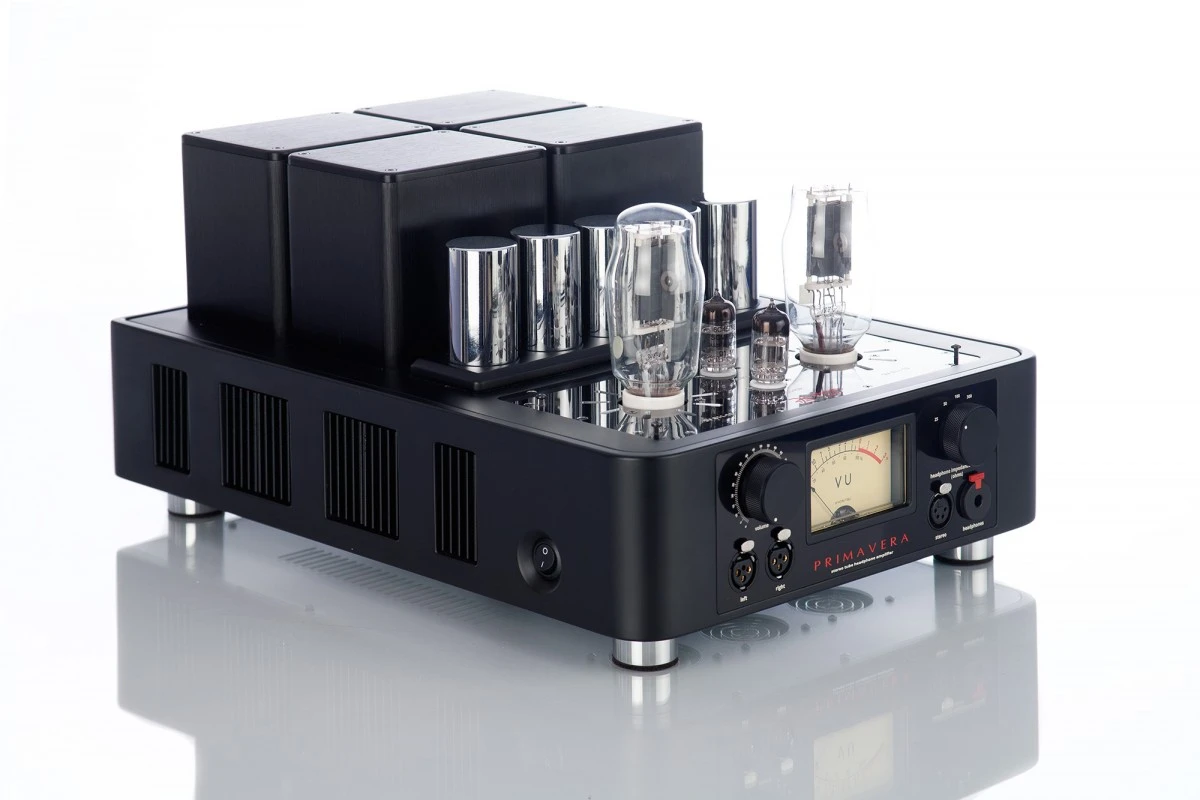

Trafomatic Audio Primavera
