Receivers — Denon AVC-X6800H

Description, images, technical data and specifications

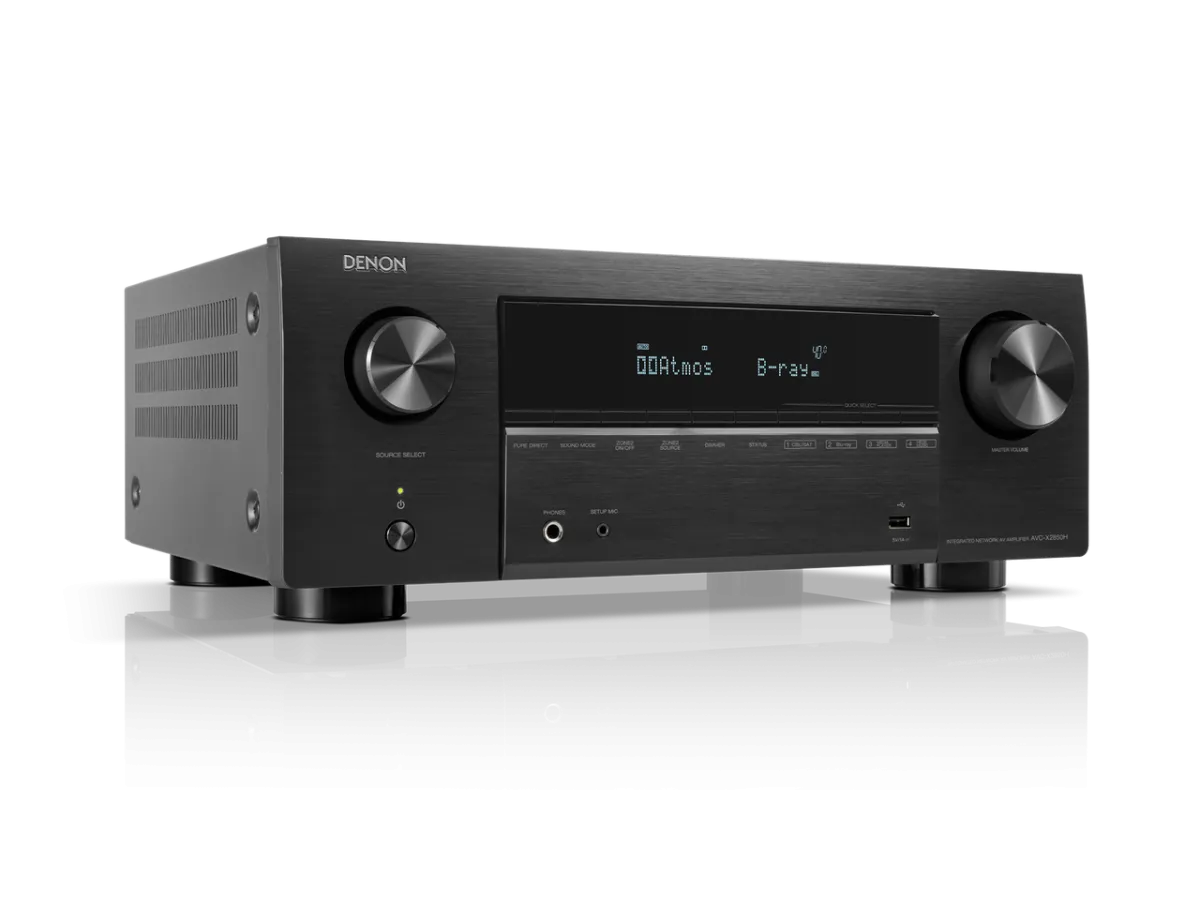

Denon AVC-X6800H
Image source — © Denon

The AVC-X6800H is an 8K AV receiver with built-in HEOS multiroom streaming from Denon, sitting above the AVC-X4800H with an extensive 11-channel configuration. The AVC-X6800H brings Denon's more accomplished current engineering to serious multichannel home-theatre duty.

Key specs that matter

Eleven main channels plus four dedicated subwoofer channels are provided - a comprehensive configuration supporting elaborate object-based surround setups. Dolby Atmos and DTS -X decoding are both supported, with a built-in MM phono input. Output power is 205W into 8 ohms. Frequency response spans a wide 10Hz to 100,000Hz within plus-or-minus 3dB. Signal-to-noise ratio is 102dB. At 434 x 389 x 167mm and 15.6kg, the AVC-X6800H represents a serious home-theatre receiver commitment.

Sound and use context

Expect comprehensive, immersive surround-sound reproduction reflecting the extensive 11-channel configuration with full Dolby Atmos and DTS -X object-based decoding, consistent with Denon's broader accomplished home-theatre engineering standards.

Pairing

The extensive 11-channel plus four-subwoofer configuration accommodates elaborate object-based surround setups including height channels, and the built-in phono input covers a turntable directly.

Alternatives

Denon's own flagship AVC-X8500HA offers a considerably more extensive 13-channel alternative within the same broader receiver catalogue.

Specifications

  • Model name

    AVC-X6800H

  • Type

    8K AV Receiver with HEOS® Built-in

  • Number of main channels

    11

  • Number of subwoofers channels

    4

  • Decoding up to Dolby Atmos

    Yes

  • Decoding up to DTS X

    Yes

  • DSP chip

    N/A

  • Phono

    MM

  • Output power (8Ω)

    205

  • Output power (4Ω)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (dB)

    102

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    434 × 389 × 167

  • Weight (kg)

    15.6
