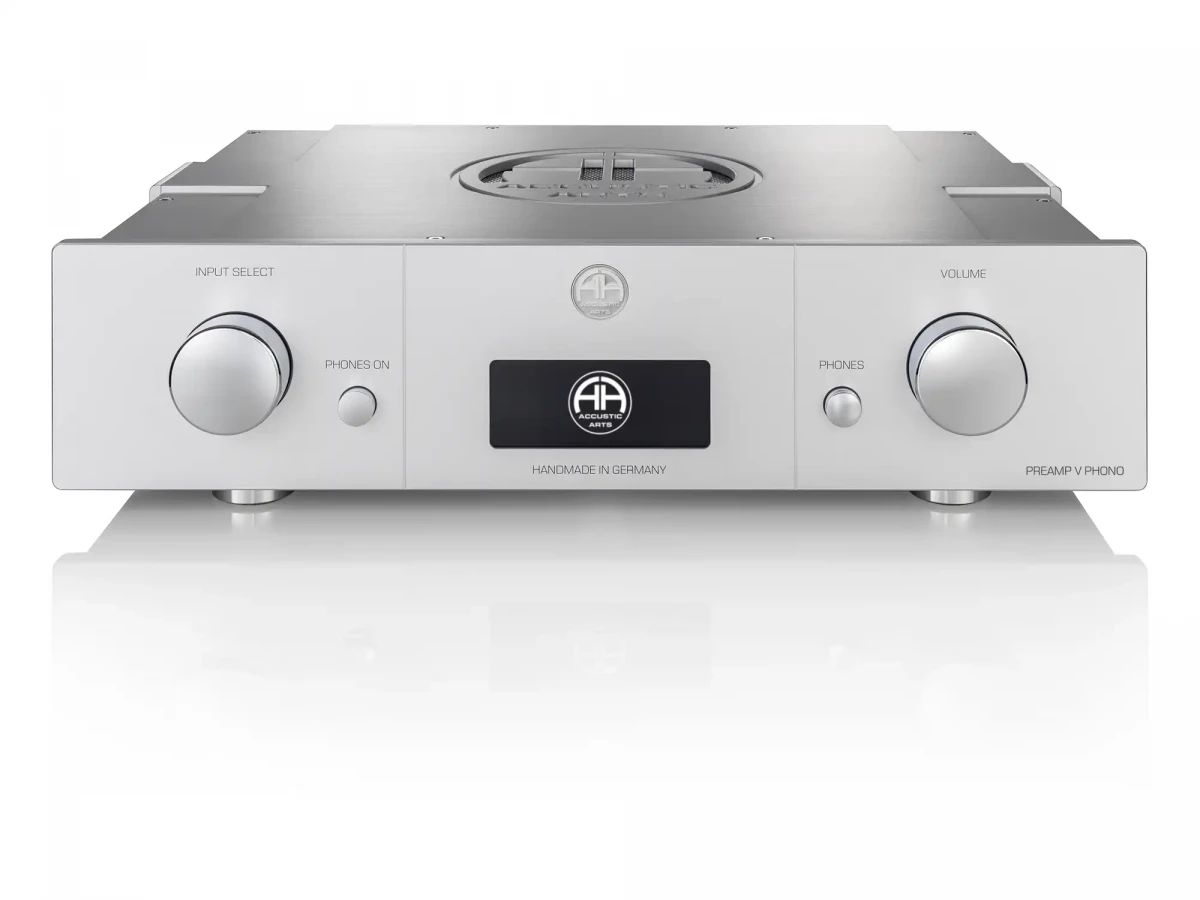

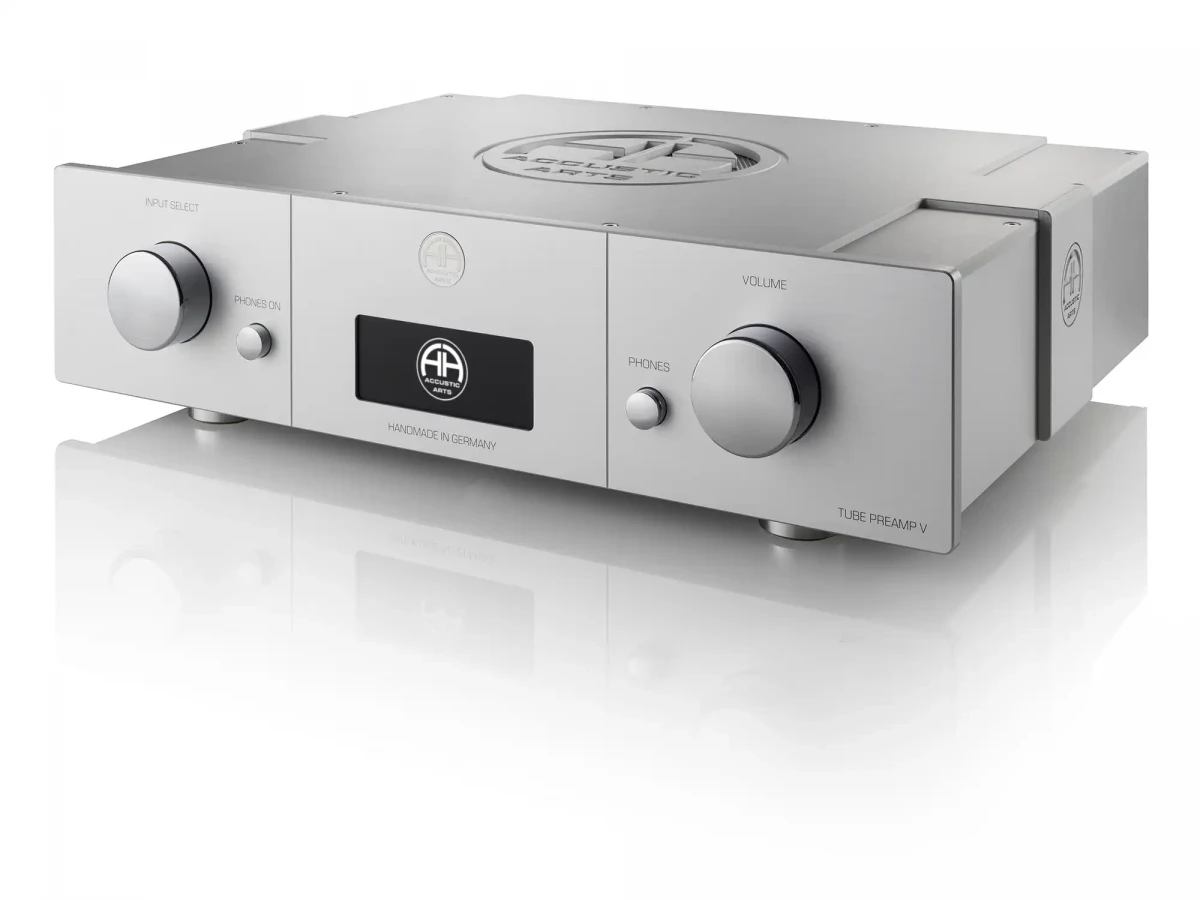

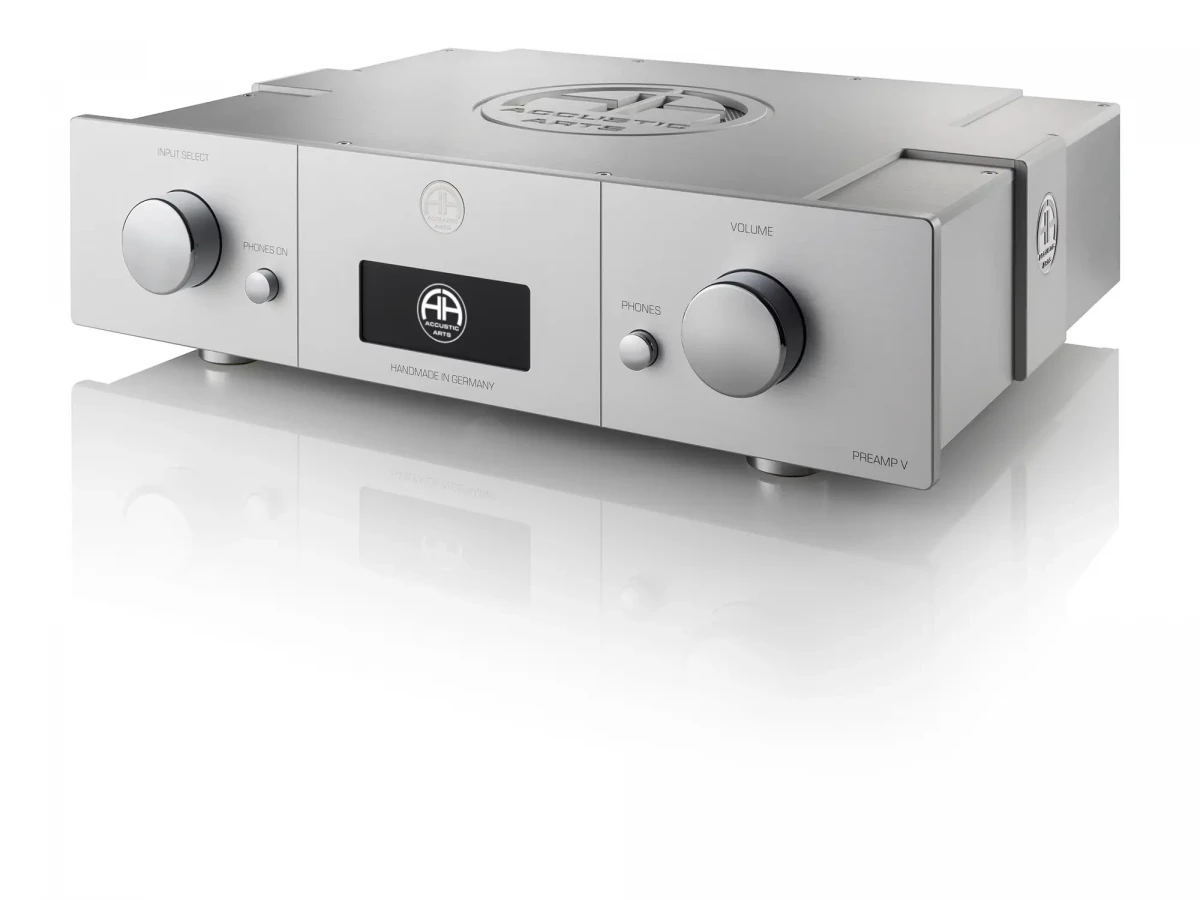

Preamplifiers — Accustic Arts TUBE PREAMP V PHONO

Specifications

• Model name

  TUBE PREAMP V PHONO

• Analog inputs (balanced)

  3

• Analog inputs (single-ended)

  3

• Analog outputs (balanced)

  3

• Analog outputs (single-ended)

  3

• Gain (dBu)

  N/A

• Input sensitivity (mV)

  N/A

• Output voltage (V)

  N/A

• Input impedance (balanced) (Ω)

  50 000

• Input impedance (single-ended) (Ω)

  50 000 (Line), 47, 100, 220, 470 (MC)

• Output impedance (balanced) (Ω)

  50

• Output impedance (single-ended) (Ω)

  50

• Maximum output level (balanced) (dBu)

  N/A

• Maximum output level (single-ended) (dBu)

  N/A

• Volume control range (dBu)

  N/A

• Frequency response low +/- 3dB (Hz)

  N/A

• Frequency response high +/- 3dB (Hz)

  120 000

• Signal to Noise Ratio (SNR, unweighted) (dB)

  103 (Line), 84 (MM), 75 (MC)

• Total Harmonic Distortion + Noise (THD+N) (%)

  < 0,0015 (Line), 0.007 (MM), 0.04 (MC)

• Dimensions (mm)

  128 x 482 x 393

• Weight (kg)

  16

• Official link

  https://www.accusticarts.de/en/products/tube-preamp-v-phono/
