Preamplifiers — PS Audio Stellar Phono Preamplifier

Description, images, technical data and specifications

PS Audio Stellar Phono Preamplifier
Image source — © PS Audio

The Stellar Phono Preamplifier has two inputs that support the pickup heads (cartridges) both with a movable coil (MS) and a movable magnet (MM), or a turntable with two tonearms, allowing you to choose the best option at the discretion of the user.

Specifications

  • Model name

    Stellar Phono Preamplifier

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    1

  • Analog outputs (balanced)

    1

  • Analog outputs (single-ended)

    1

  • Gain (dBu)

    56 (MM) + 72 (MC)

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    200

  • Output impedance (single-ended) (Ω)

    200 per leg

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    >82 (MM), 74 (MC)

  • Total Harmonic Distortion + Noise (THD+N) (%)

    <0.01

  • Dimensions (mm)

    430 x 330.2 x 82.55

  • Weight (kg)

    9.8

  • Official link

    https://www.psaudio.com/products/stellar-phono-preamplifier

PS Audio StellarGold Preamplifier

More components

  • StellarGold Preamplifier

    Preamplifiers

    PS Audio StellarGold Preamplifier

    The Stellar Gold preamp is equipped with two discrete element amplification stages, both of which have extremely high signal rise rates, wide bandwidth, and can process audio with negligible distortion. Based on a combination of field-effect JFET and bipolar BJT transistors, along with carefully hand-selected components, this preamplifier carefully transmits the musical signal without interference from the capacitors in the signal path.

  • BHK Signature Preamplifier

    Preamplifiers

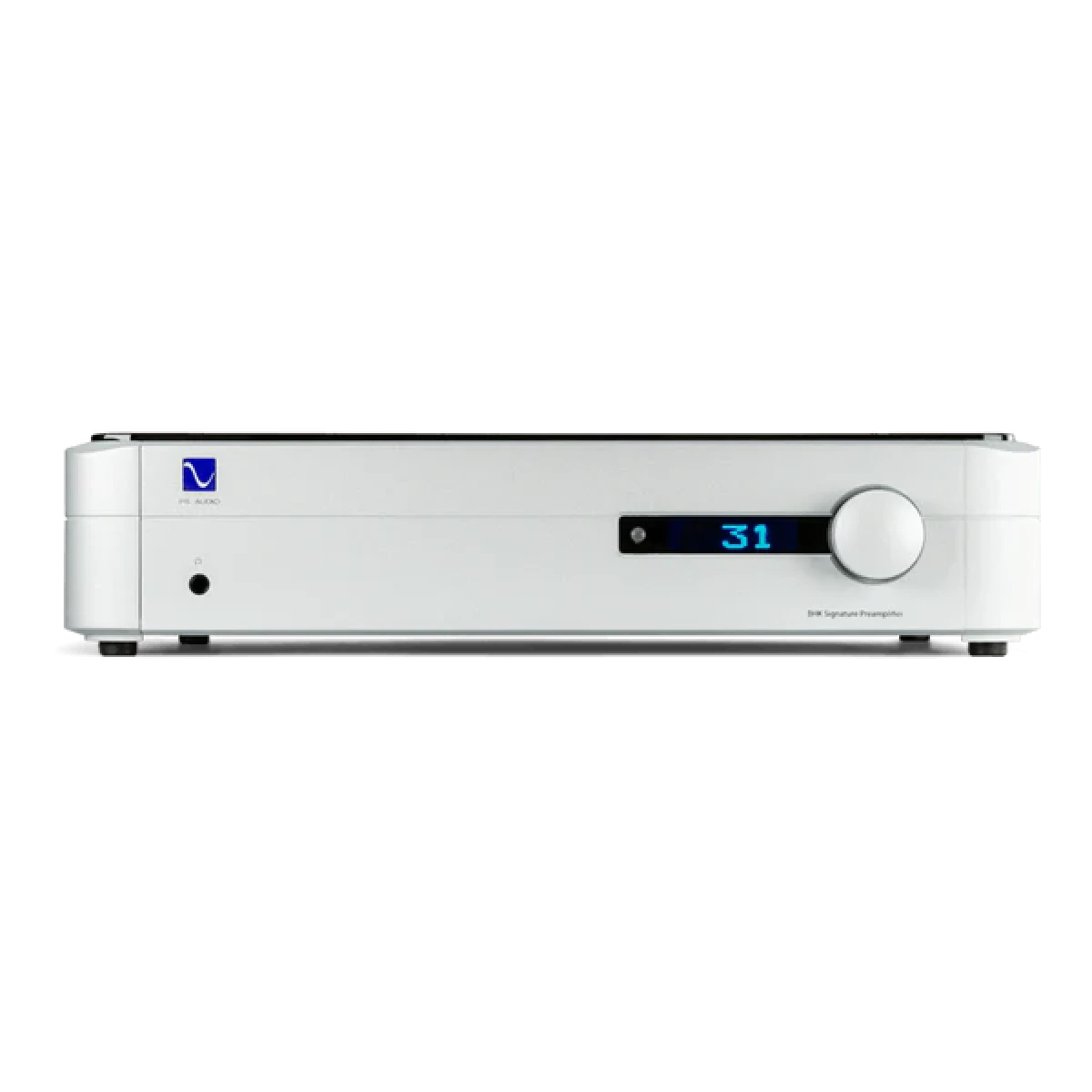

    PS Audio BHK Signature Preamplifier
