Preamplifiers — Vincent SA-32
Description, images, technical data and specifications

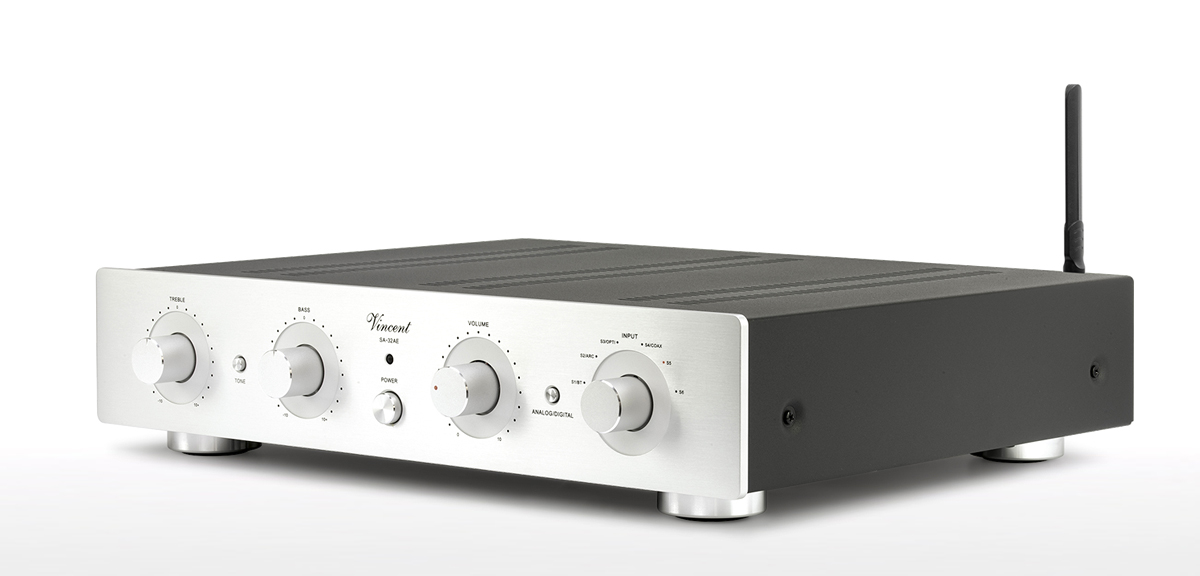

Vincent SA-32
Image source — © Vincent
The Vincent SA-32 preamp has replaced the classic Vincent SA-31 model (which has been in production for 22 years). The Vincent SA-32 is built according to a hybrid scheme - on four 6N16 lamps (two in the input stage and two in the output stage); the device has an 8 dB gain control.
Specifications
Model name
SA-32
Analog inputs (balanced)
1
Analog inputs (single-ended)
5
Analog outputs (balanced)
1
Analog outputs (single-ended)
2
Gain (dBu)
N/A
Input sensitivity (mV)
500
Output voltage (V)
2
Input impedance (balanced) (Ω)
47 000
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (SNR, unweighted) (dB)
>90
Total Harmonic Distortion + Noise (THD+N) (%)
<0.1
Dimensions (mm)
430 x 77 x 360
Weight (kg)
6.2
Official link
More components
Preamplifiers

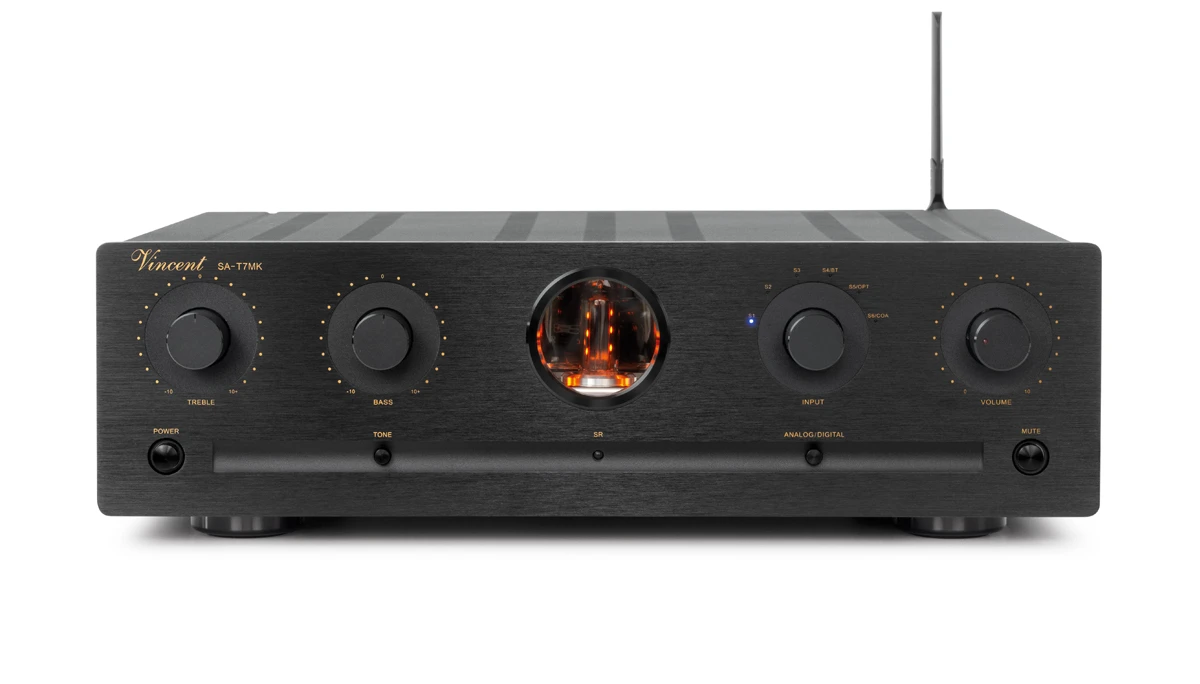

Vincent SA-T7MK
