Preamplifiers — Audio Research Reference 6SE Line-Stage

Description, images, technical data and specifications

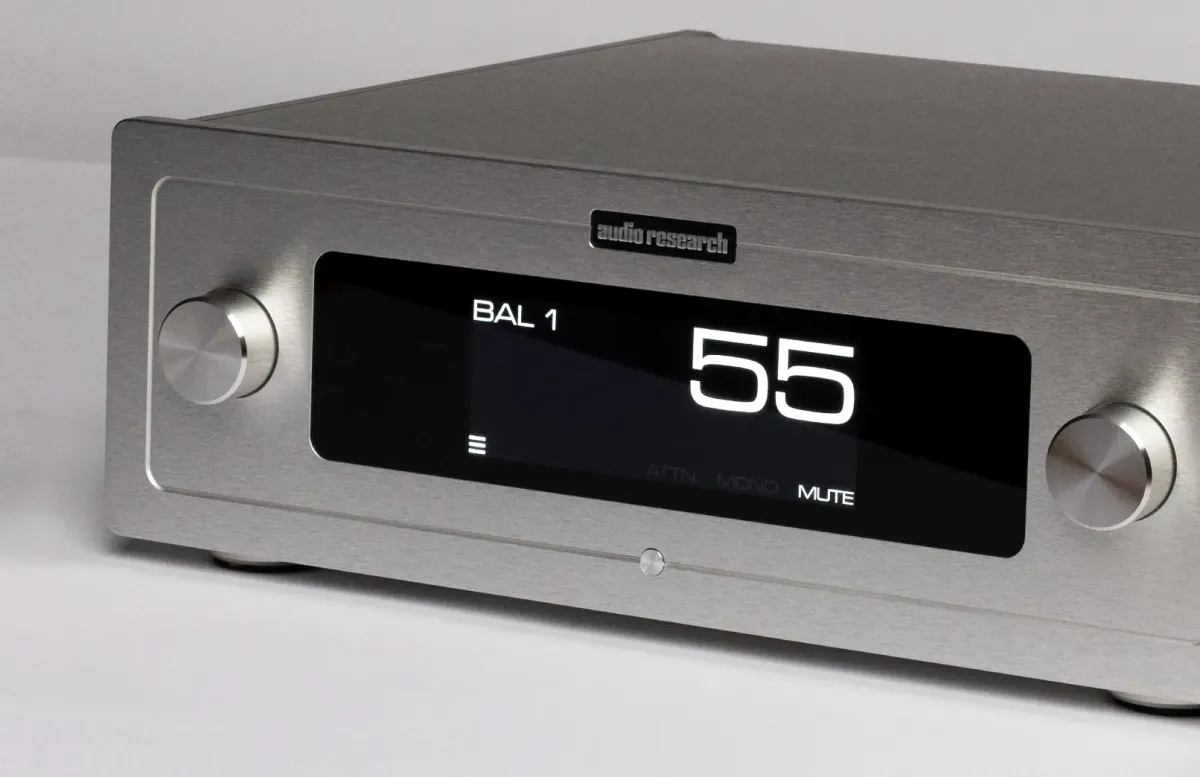

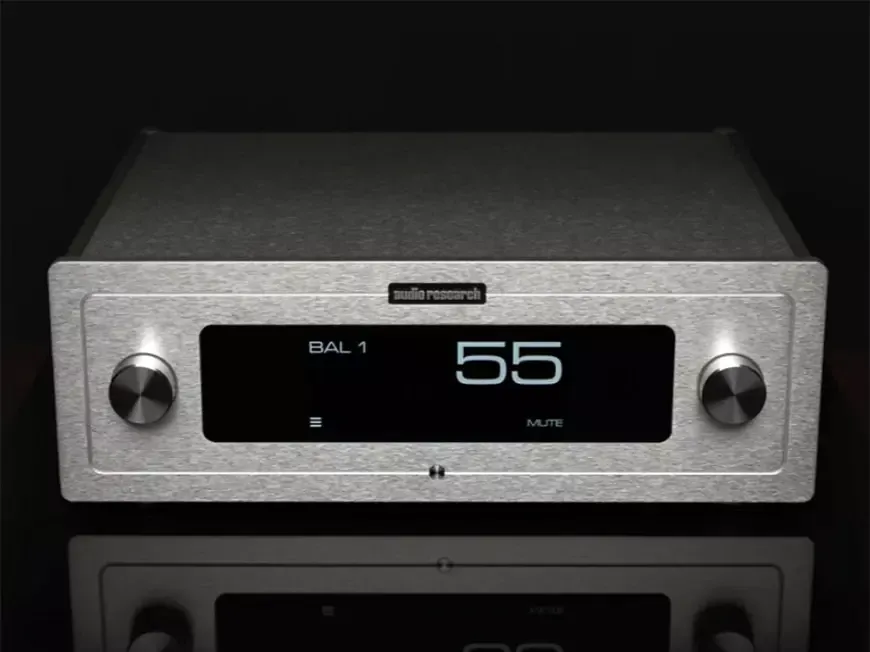

Audio Research Reference 6SE Line-Stage
Image source — © Audio Research

Tube-based line-stage (6 x 6H30P dual triodes, plus 6550WE and 6H30P in power supply) offers standard 2V RMS into 200K ohm balanced load with maximum balanced output capability is 70V RMS.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Reference 6SE Line-Stage

  • Analog inputs (balanced)

    4

  • Analog inputs (single-ended)

    4

  • Analog outputs (balanced)

    3

  • Analog outputs (single-ended)

    3

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    120000

  • Input impedance (single-ended) (Ω)

    60000

  • Output impedance (balanced) (Ω)

    600

  • Output impedance (single-ended) (Ω)

    300

  • Maximum output level (balanced) (dBu)

    2 (maximum balanced output capability is 70V RMS)

  • Maximum output level (single-ended) (dBu)

    2

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    0.4

  • Frequency response high +/- 3dB (Hz)

    200000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    N/A

  • Total Harmonic Distortion + Noise (THD+N) (%)

    0.01

  • Dimensions (mm)

    480 x 198 x 419

  • Weight (kg)

    17

  • Official link

    https://audioresearch.com/new_website/audio-research-reference-6se-line-stage/
