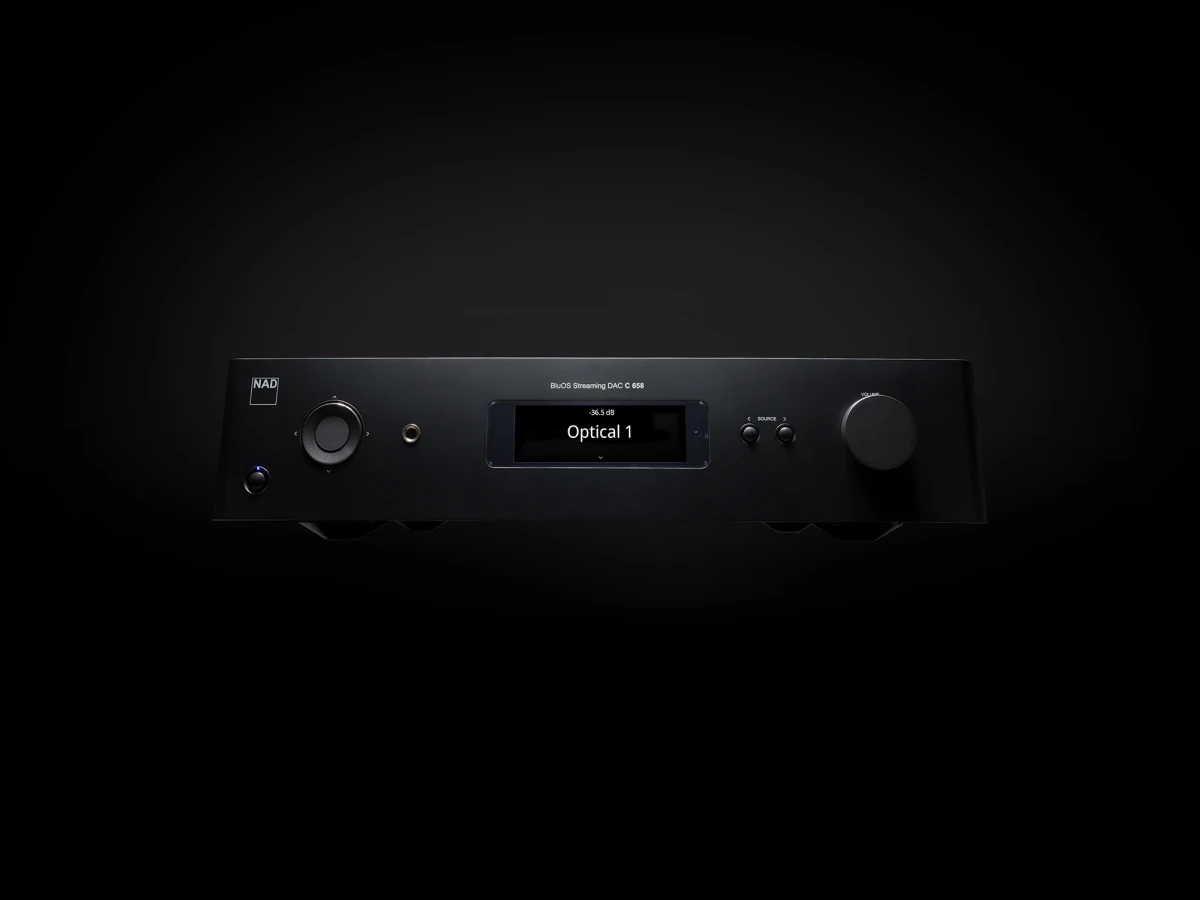

NAD M66
Image source — © NAD
The integrated DAC unit in the NAD M66 is based on ESS Technology's Sabre ES9038PRO chips. In addition, there is also an MM/MC phono corrector. But this is not the end of the list of distinctive features of the NAD M66. The new product implements Dirac Live Room Correction and Dirac Live Bass Control technologies, "which allows the NAD M66 to provide a more accurate indoor response than any dual-channel component ever offered."
Specifications
Model name
M66
Analog inputs (balanced)
1
Analog inputs (single-ended)
2 + 2 (Phono)
Analog outputs (balanced)
1
Analog outputs (single-ended)
1
Gain (dBu)
N/A
Input sensitivity (mV)
185
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
56 000
Input impedance (single-ended) (Ω)
56 000
Output impedance (balanced) (Ω)
22
Output impedance (single-ended) (Ω)
22
Maximum output level (balanced) (dBu)
10
Maximum output level (single-ended) (dBu)
10
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (SNR, unweighted) (dB)
>105
Total Harmonic Distortion + Noise (THD+N) (%)
<0.001
Dimensions (mm)
435 x 133 x 387
Weight (kg)
7.6
