Power amplifiers stereo — Ayre Accoustics VX-R TWENTY
Description, images, technical data and specifications
Ayre Accoustics VX-R TWENTY

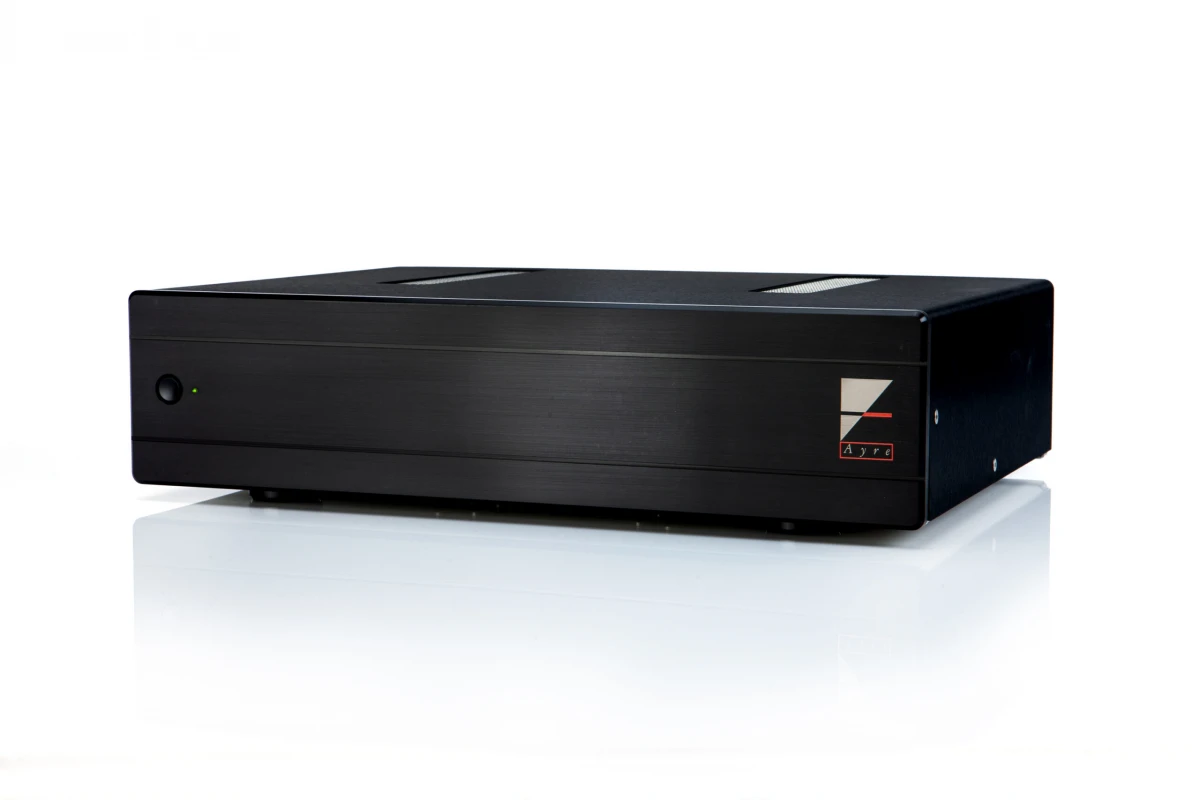

Image source — © Ayre Accoustics
The Ayre VX-R Twenty stereo power amplifier has all the technological advantages and sound parameters of monoblock amplifiers, but it is assembled in a single package. Careful design of every detail of the signal path – the tracing of circuits or the orientation of elements – has achieved impeccable quality. Ayre's approach to development can be called fanatical, but the result is worth it.
Specifications
Model name
VX-R TWENTY
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
2 000 000
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
400
Gain (dBu)
26
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
250 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
200
Damping factor
N/A
Dimensions (mm)
440 x 480 x 95
Weight (kg)
35
Official link
