Power amplifiers stereo — Msb Technology The S500 Stereo Amplifier
Description, images, technical data and specifications

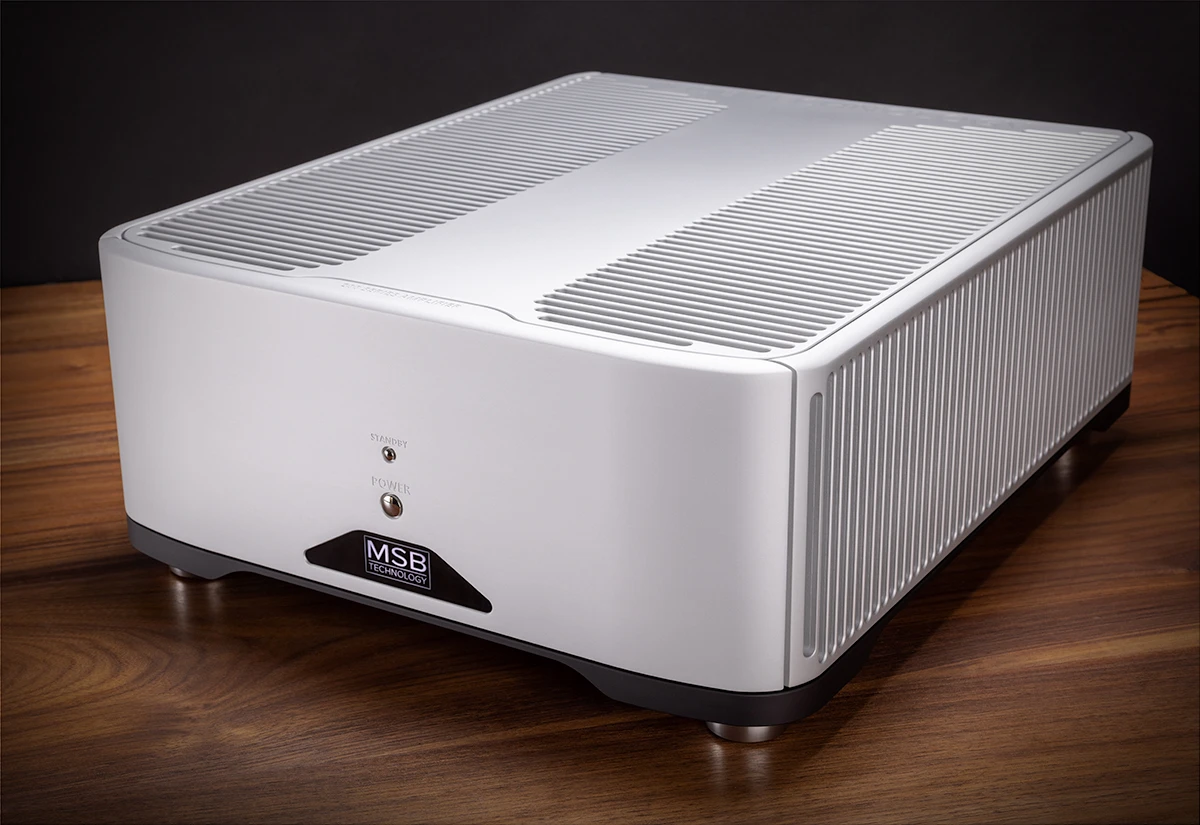

Msb Technology The S500 Stereo Amplifier
Image source — © Msb Technology
The amplifier has a fully modular design. Radiators are made from solid pieces of aluminum, the thickness of the fins varies to smooth out mechanical resonances. Several grounding options for the circuit and housing allow you to avoid the occurrence of network loops and ground wire leads in a particular system.
Specifications
Model name
The S500 Stereo Amplifier
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
75 / 300 / 1200
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
500
Output power (4Ω) (W)
900
Gain (dBu)
28.2
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
270
Damping factor
N/A
Dimensions (mm)
381 × 590 × 261
Weight (kg)
61.25
