Power amplifiers stereo — Kora TA480

Name: TA480
Brand: Kora
Rating: 100 (1 reviews)

Description, images, technical data and specifications

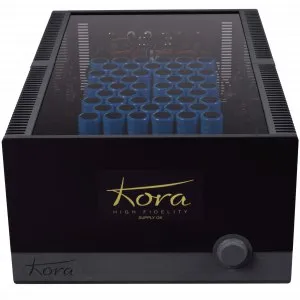

Kora TA480
Image source — © Kora

The TA480 is the non-integrated version of the TB400, but the power transformers have been enlarged to provide more power per channel. There’s also a slight difference in the inputs. This amplifier has a line input and an XLR input.

Specifications

Model name
TA480
Input sensitivity (mV)
500 - 5000
Input impedance (balanced) (Ω)
20 000
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
2 x 200
Output power (4Ω) (W)
2 x 360
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
130 x 420 x 420
Weight (kg)
27
Official link
https://kora.fr/wp-content/uploads/2022/04/220419_KORA_TA480_data_sheet_EN.pdf
