Power amplifiers stereo — Esoteric S-05
Description, images, technical data and specifications
Esoteric S-05
Image source — © Esoteric
The Esoteric S-05 model operates in Class A and is fully focused on transmitting the unique tonal qualities of music, but in a more compact stereo configuration, while maintaining the Grandioso M1X philosophy of "minimum circuit – maximum power".
Specifications
Model name
S-05
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
300
Output power (4Ω) (W)
600
Gain (dBu)
28.5
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
102
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.007
Max power consumption (W)
245
Damping factor
N/A
Dimensions (mm)
445 × 191 × 444
Weight (kg)
30.7
Official link
More components
Power amplifiers stereo

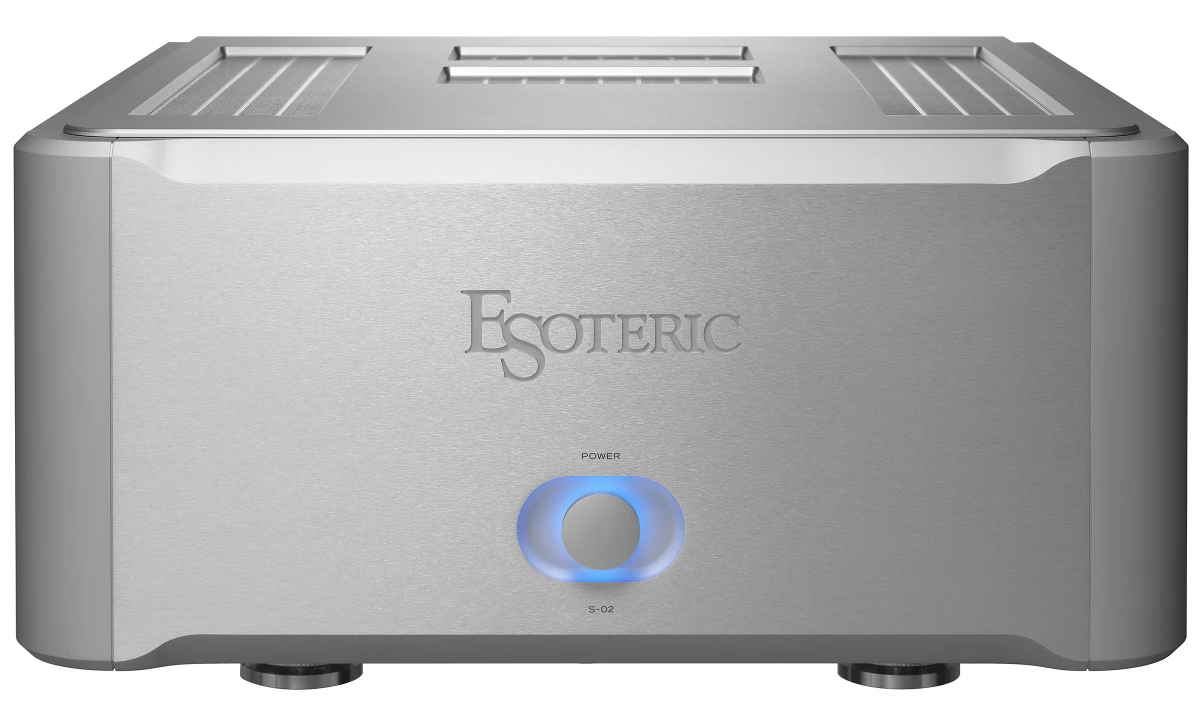

Esoteric S-02
