Power amplifiers stereo — Hegel H30A
Description, images, technical data and specifications

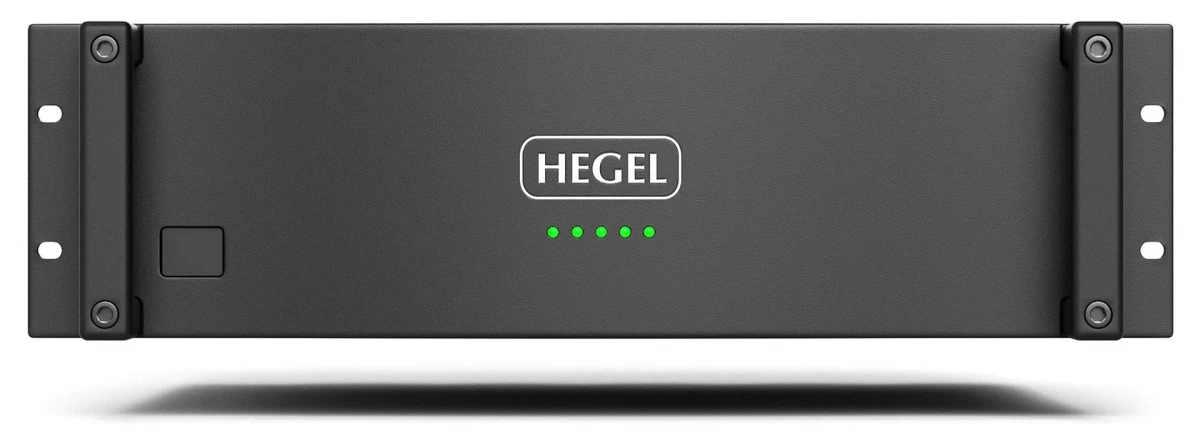

Hegel H30A
Image source — © Hegel
The flagship Hegel H30A replaced the Hegel H30. This is the flagship device of the manufacturer. Hegel H30A is a 47-kilogram monoblock with the ability to work in stereo mode. Due to its enormous power, controlling the speakers is no longer a problem.
Specifications
Model name
H30A
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
20 000
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
1100
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Signal to Noise Ratio (dB)
>100
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.003
Max power consumption (W)
120
Damping factor
>500 (mono)
Dimensions (mm)
240 x 430 x 575
Weight (kg)
47.4
Official link
