Power amplifiers stereo — Trafomatic Audio EOS+
Description, images, technical data and specifications

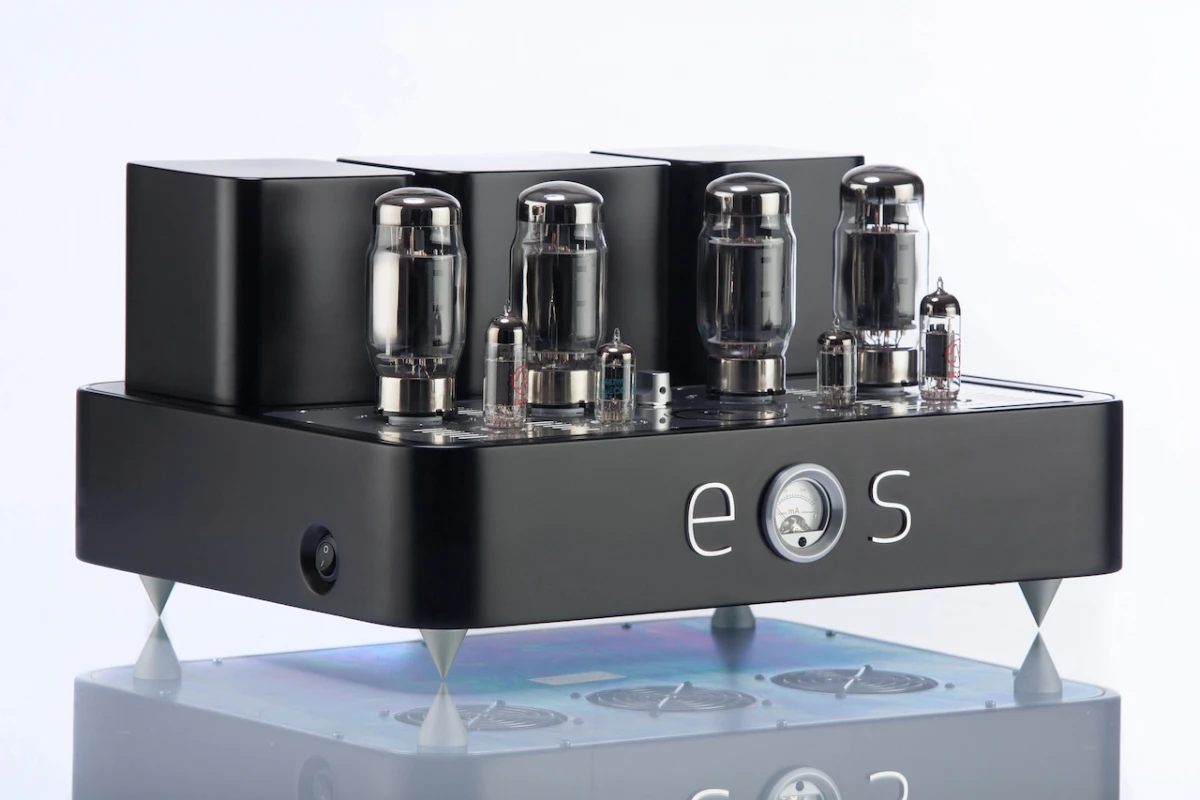

Trafomatic Audio EOS+
Image source — © Trafomatic Audio
The "dual mono" principle is implemented in the design of the EOS+ power power amplifier. The new, well-proven KT150 Tungsol output lamps are used in the push-pull output stage. 150 watts of power per channel is more than enough to be compatible with most speakers, including low-sensitivity ones. EOS+ power is a "pure" power amplifier. A preamp should be used in conjunction with it, which will help adjust the system configuration to your own needs.
Specifications
Model name
EOS+
Input sensitivity (mV)
1200
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
2 x 150
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
82
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.03
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
150 x 300 x 200
Weight (kg)
27
Official link
More components
Power amplifiers stereo

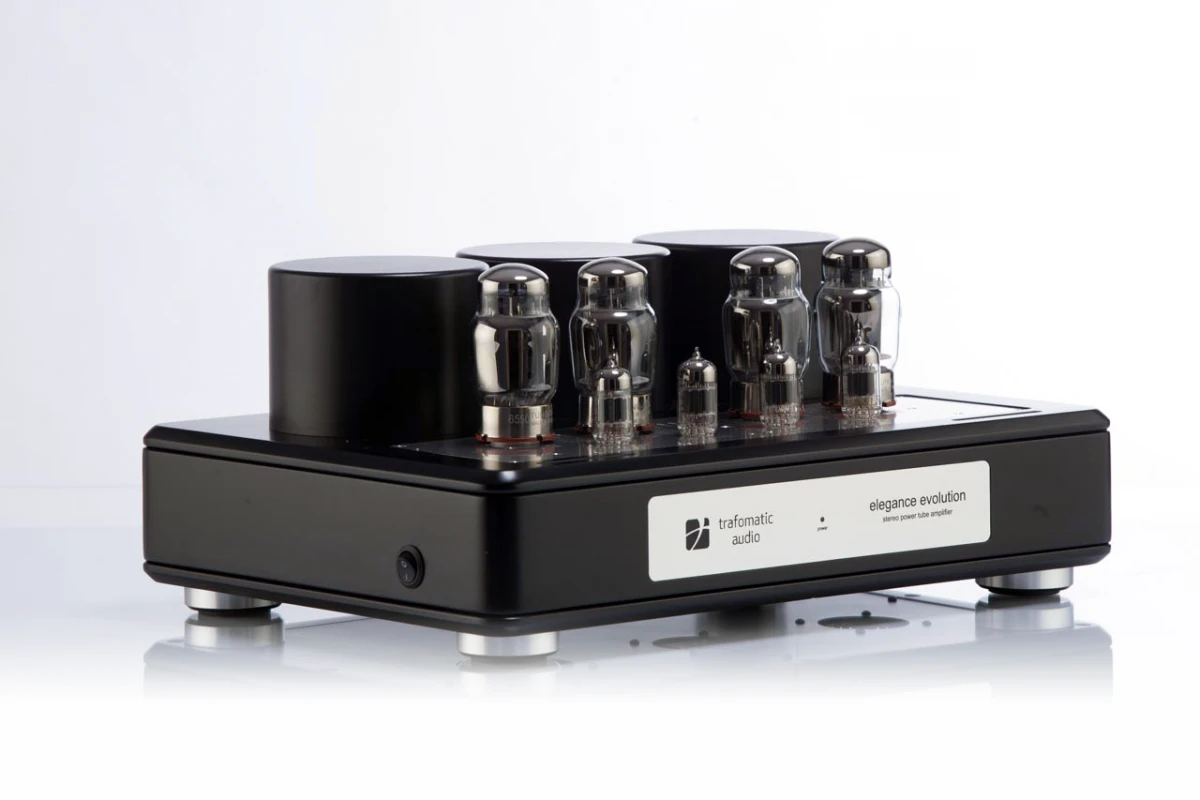

Trafomatic Audio Evolution Elegance
