Power amplifiers stereo — Trafomatic Audio EOS
Description, images, technical data and specifications
Trafomatic Audio EOS
Image source — © Trafomatic Audio
The EOS integrated amplifier is the most powerful integrated amplifier in the Trafomatic Audio line. It is built according to a push-pull circuit with KT 120 output lamps. The output power is 100 watts per channel, which should be more than enough for the vast majority of speakers, even with low sensitivity. A full amplifier combines the functions of a preamp and a power amplifier. According to the manufacturer's research, the optimal negative feedback value has been selected: minus 6 dB.
Specifications
Model name
EOS
Input sensitivity (mV)
1000
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
2 x 100
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
82
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.03
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
150 x 300 x 200
Weight (kg)
25
Official link
More components
Power amplifiers stereo

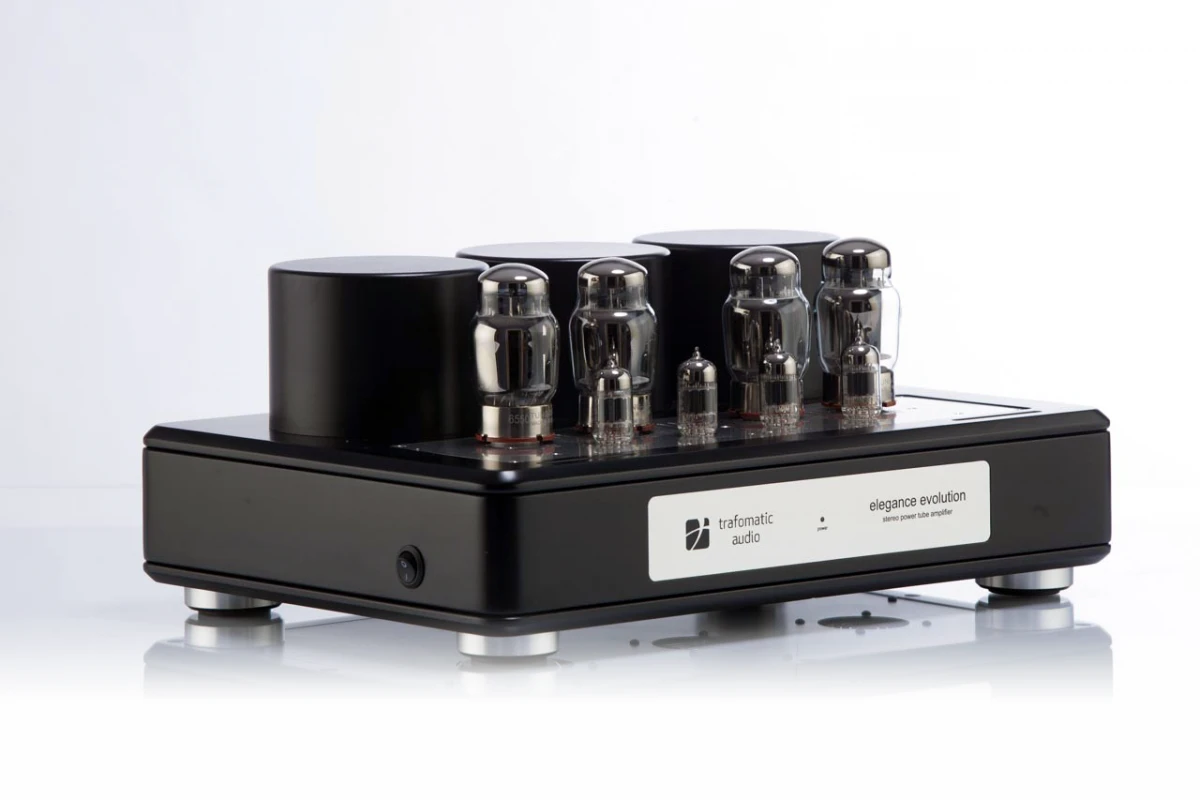

Trafomatic Audio Evolution Elegance
Power amplifiers stereo

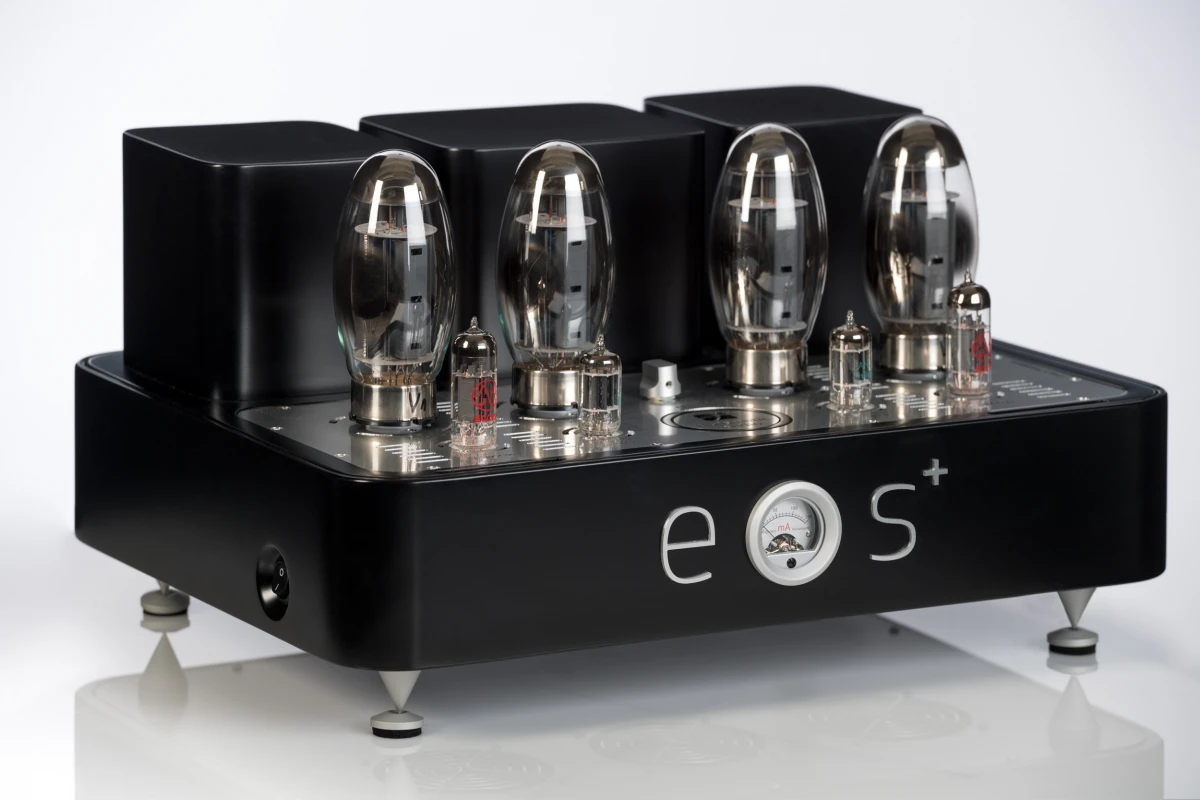

Trafomatic Audio EOS+
